HVAC system for office space(concealed AC)

An HVAC design for the ground floor of an office building located in Cairo.

Here's a brief overview of what I have accomplished:

preparing the architectural plan.

Calculating the thermal loads of the 15 offices using the HAP program (Hourly Analysis Program)

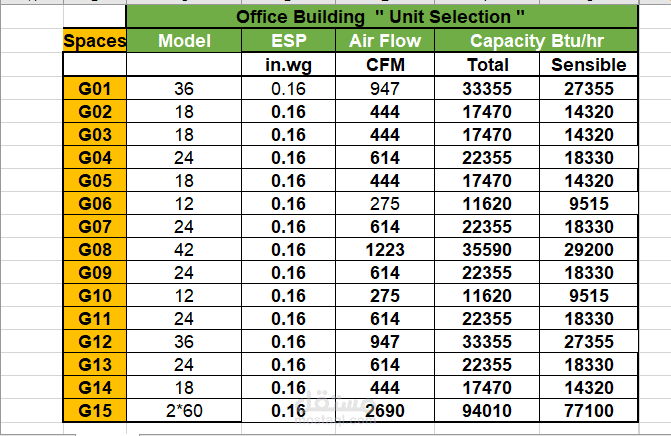

Selecting the suitable air conditioning machines from carrier Egypt catalogs

according to Ashrea standards.

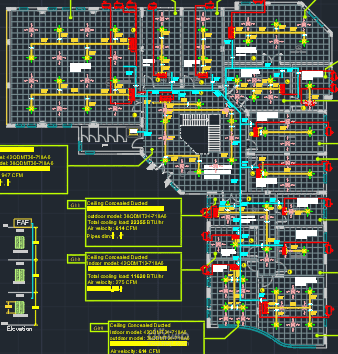

-Distribute the indoor and outdoor units.

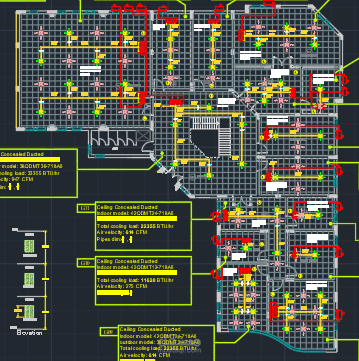

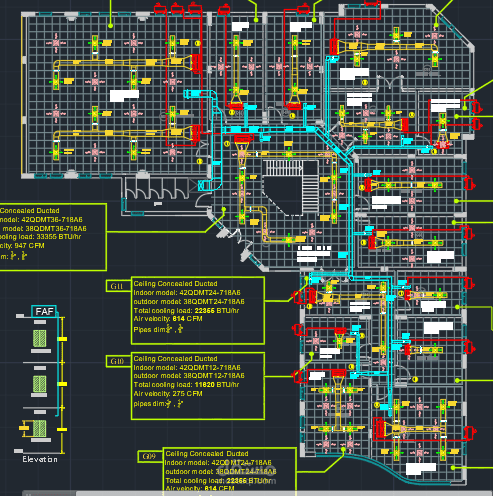

Installing a conditioned air duct system

-Distributing fresh air ducts according to the requirements of the project and in accordance with the codes of Ashrea

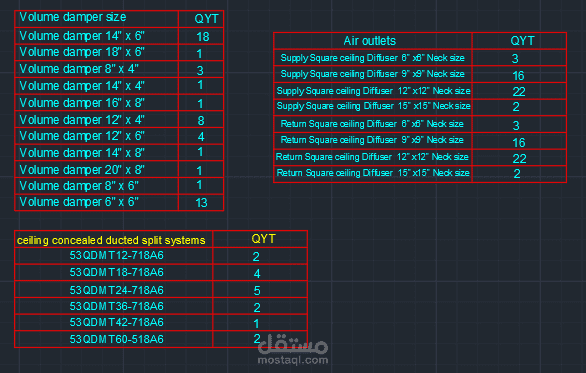

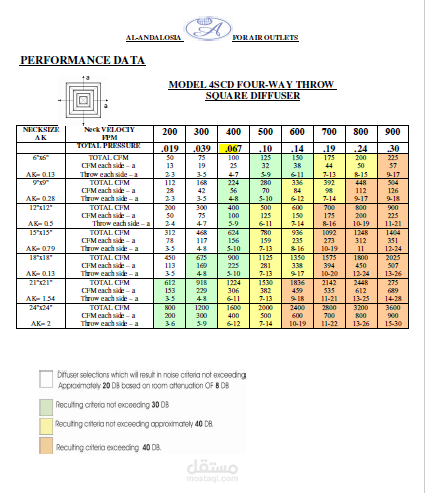

-Count the quantities of indoor and outdoor units, air outlets and volume dampers

-Calculate the weight of the air-conditioned sheet and the fresh air

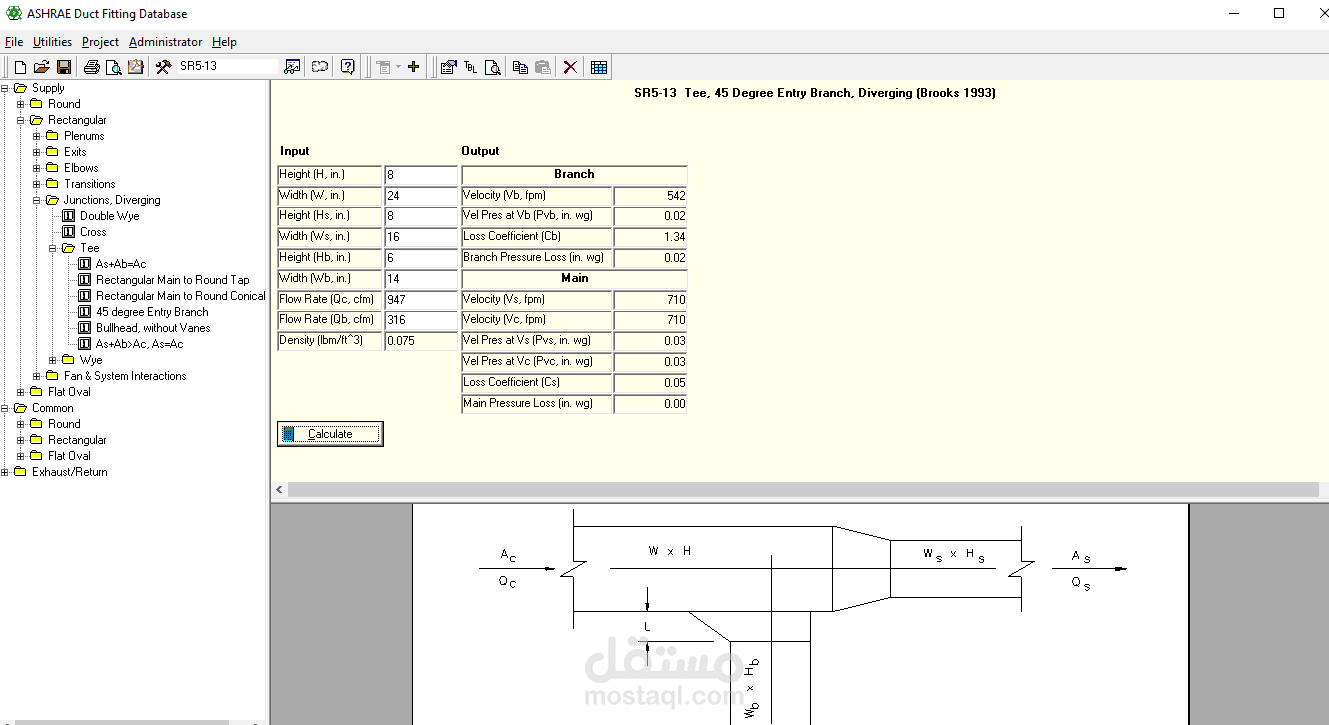

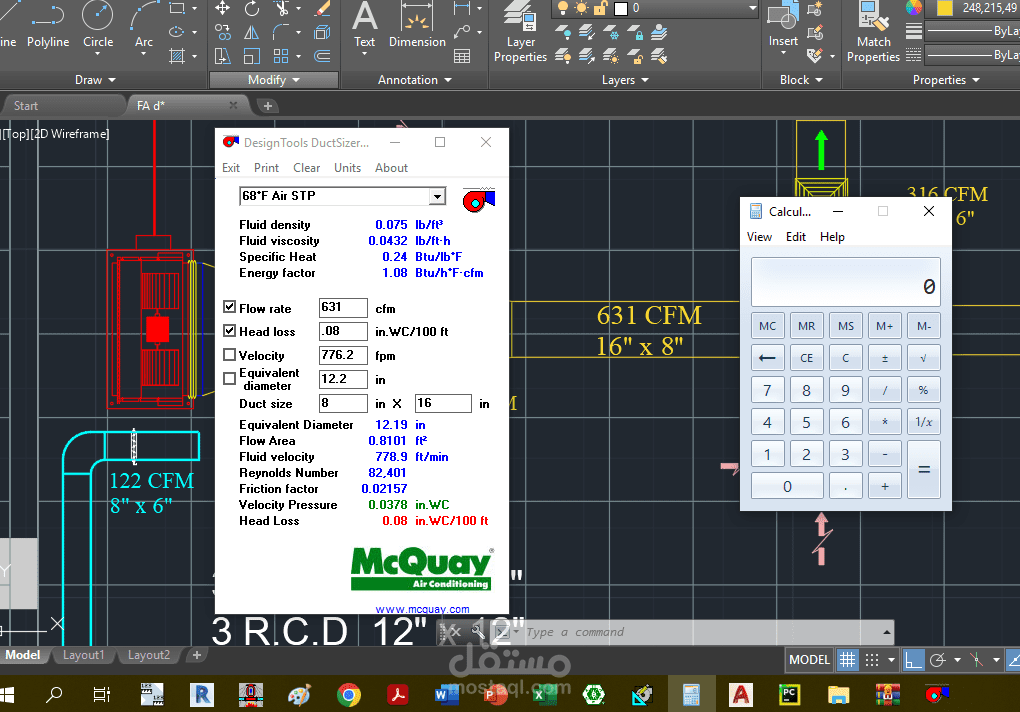

The software used: (AutoCAD-HAP 4.9-Mcquay Duct sizer-ASHRAE Duct Fitting Database-Excel
