HVAC system for Call center space (Package )

An HVAC design for the 9th floor of an call center building located in kuiwat Here's a briefoverview of what I have accomplished

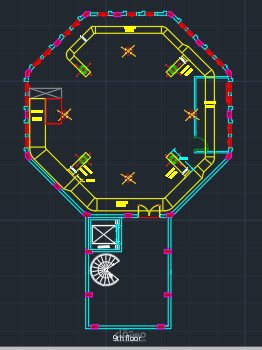

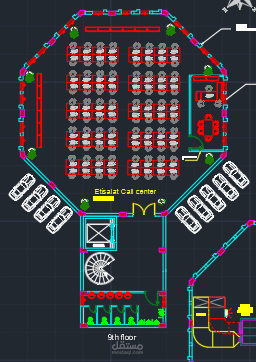

preparing the architectural plan.

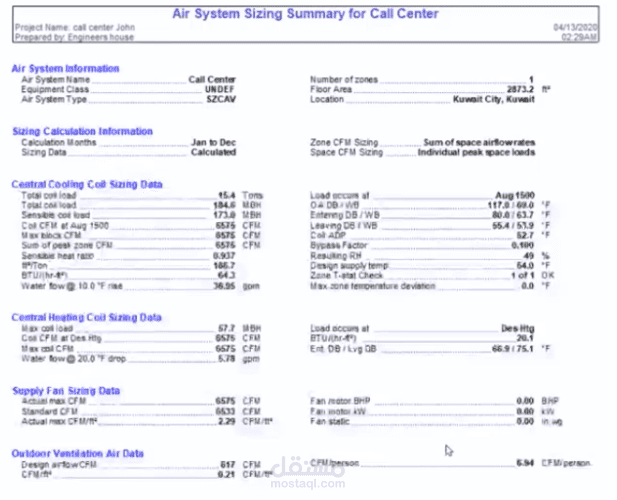

Calculating the thermal loads of the place using the HAP program (Hourly Analysis Program)

Selecting the suitable air conditioning machines from dasko catalogs

according to Ashrea standards.

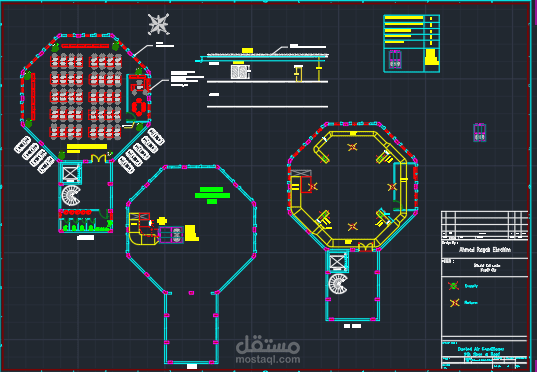

-Distribute the indoor and outdoor units.

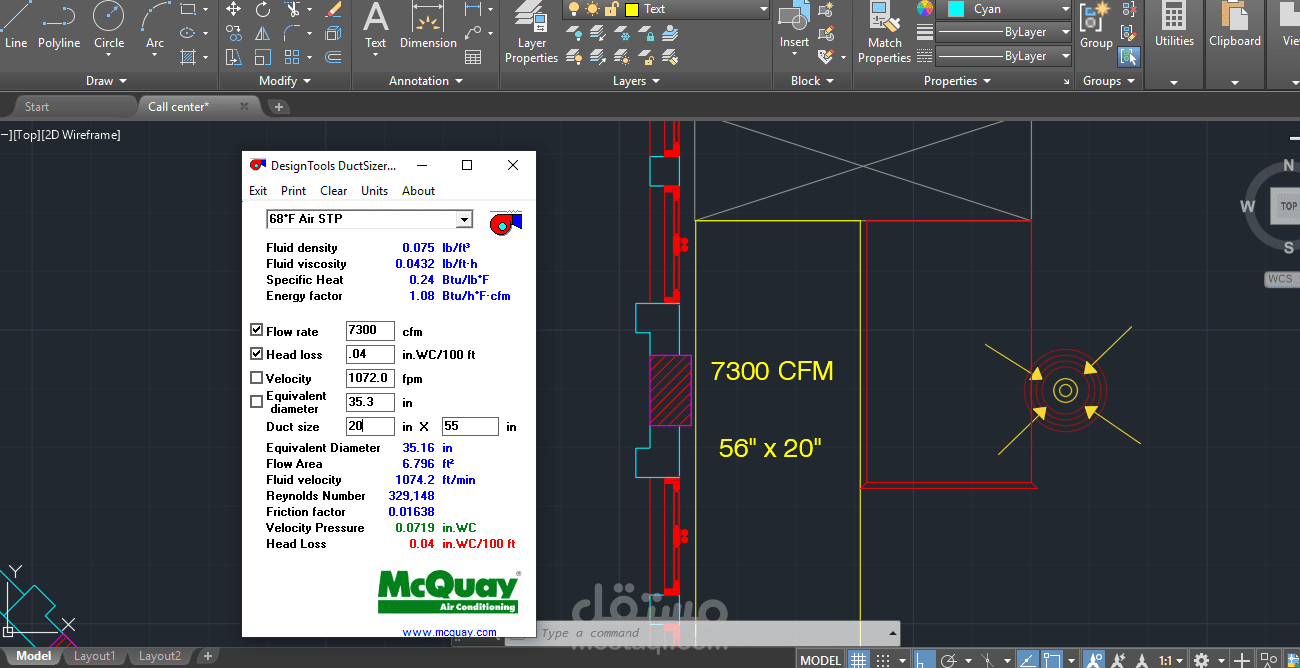

Installing a conditioned air duct system

-Distributing fresh air ducts according to the requirements of the project and in accordance with the codes of Ashrea

-Count the quantities of indoor and outdoor units, air outlets and volume dampers

-Calculate the weight of the air-conditioned sheet and the fresh air

The software used: (AutoCAD-HAP 4.9-Mcquay Duct sizer-ASHRAE Duct Fitting Database-Excel)
