Using CISCO Packet Tracer

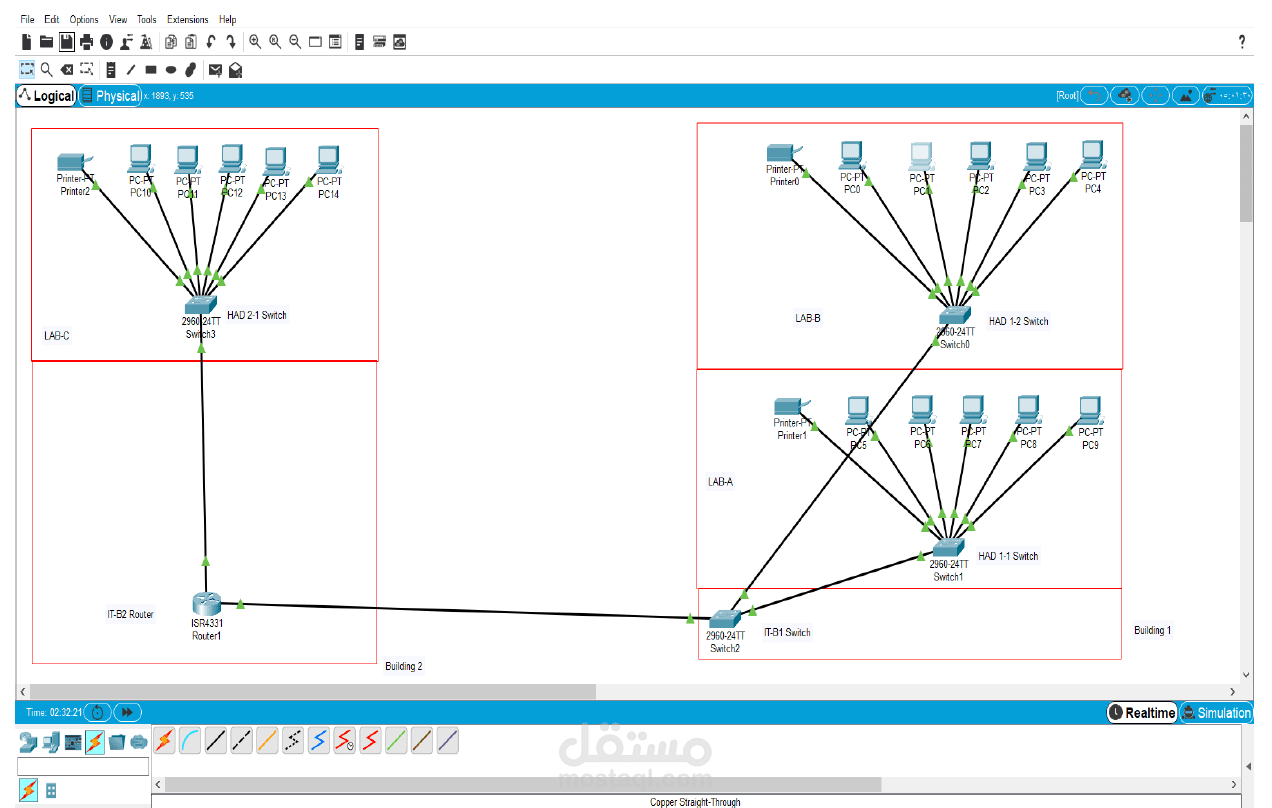

Using CISCO Packet Tracer :

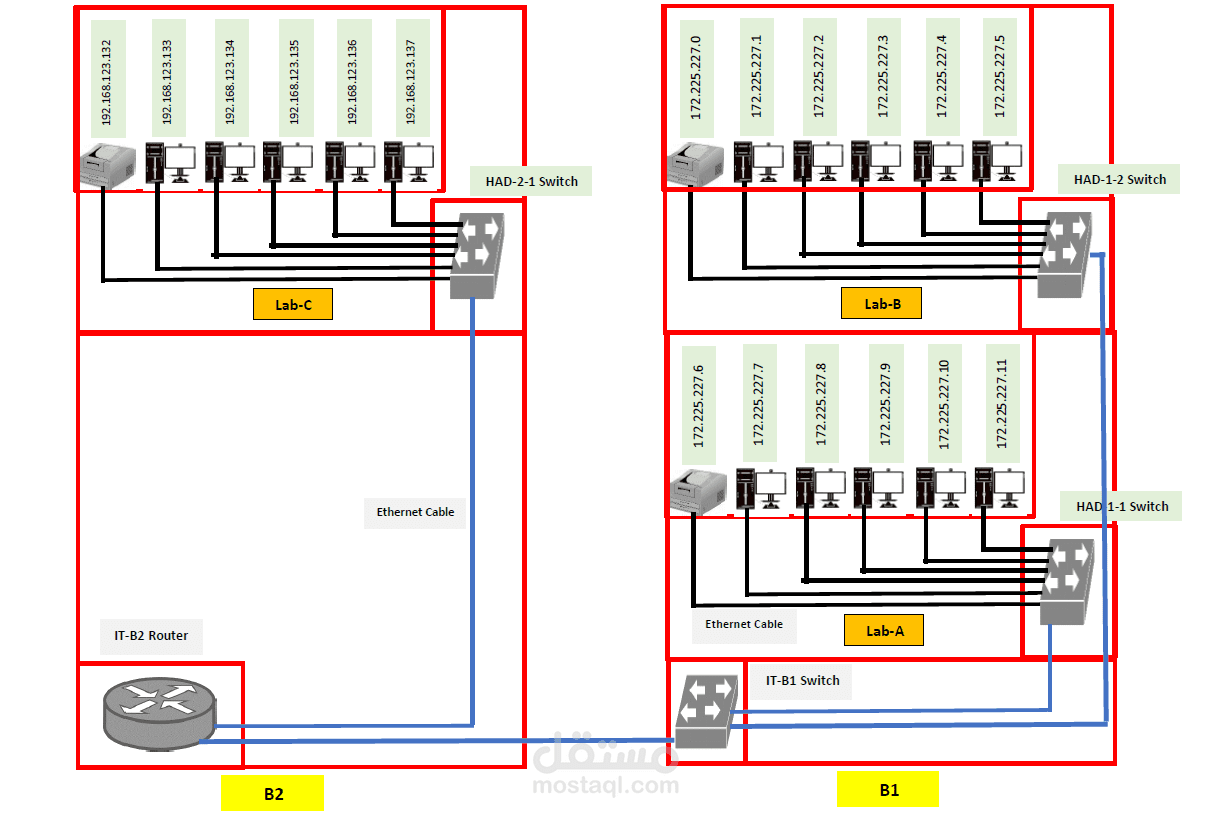

to connect the two building (1 and 2) based on the following:

o Lab A and Lab B at Building-1 are having the same network (class B IP addresses).

o Lab C at Building-2 floor 1 is having a network of class C IP addresses.

o Each LAB has 5 PCs and a printer.

o There are two IT rooms (IT-B1 and IT-B2) on ground at Building-1 and Building-2 called main distribution areas.

o There is one small horizontal distribution area/room (HDA) for each floor for each building (total of three HDAs).

o The distance between IT-B1 and HDA-1-1 is 90 meters.

o The distance between IT-B1 and HAD-1-2 is 150 meters.

o The distance between B1 and B2 is 110 meters.

o All users can access Internet service.
