Design an electric distribution network of an administrative building -Training Course

The design stages of the project were:

1. Concept Design:

This included load estimate of the project, sizing the bulk equipment, and their room spaces.

2. Schematic Design:

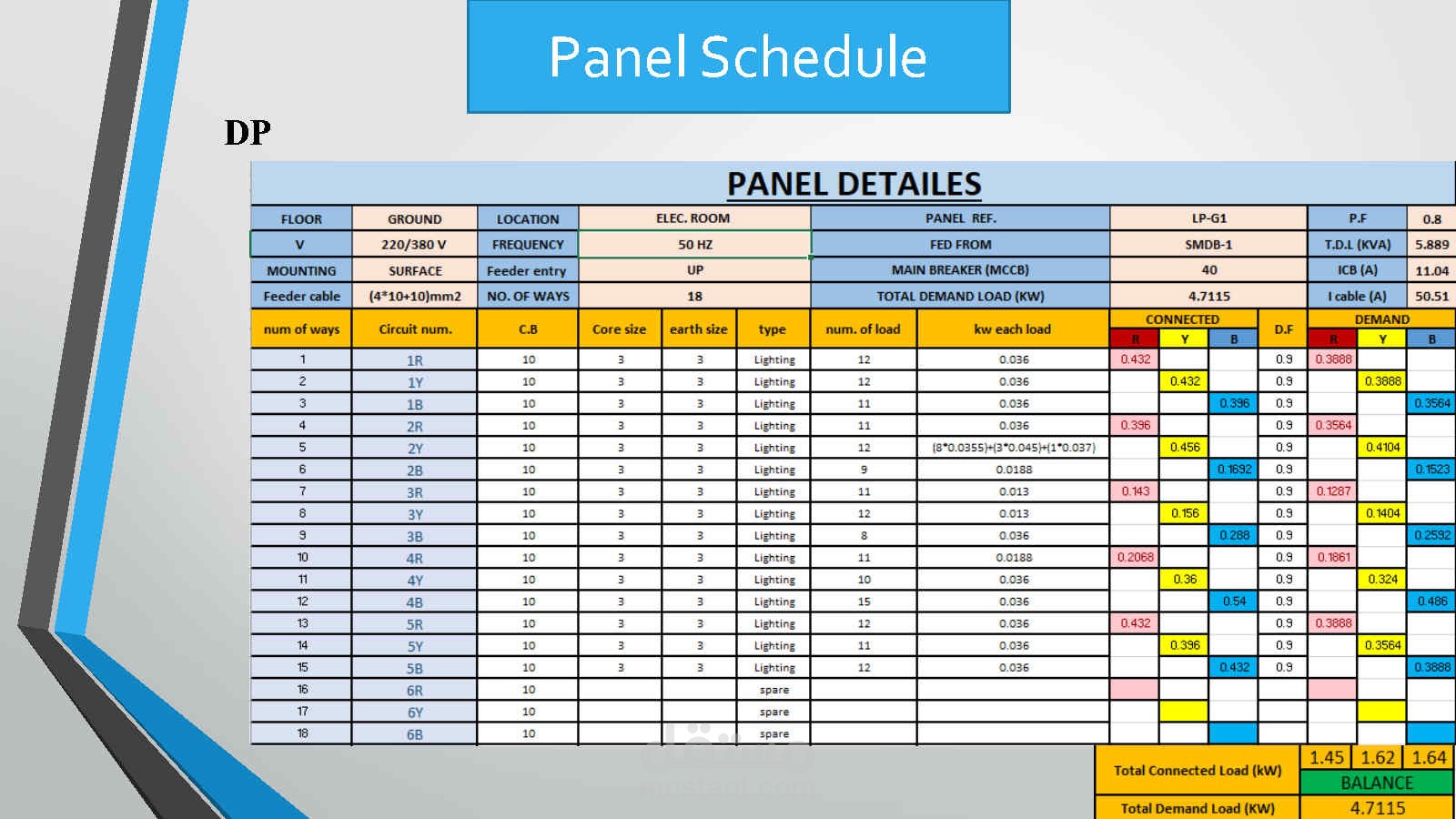

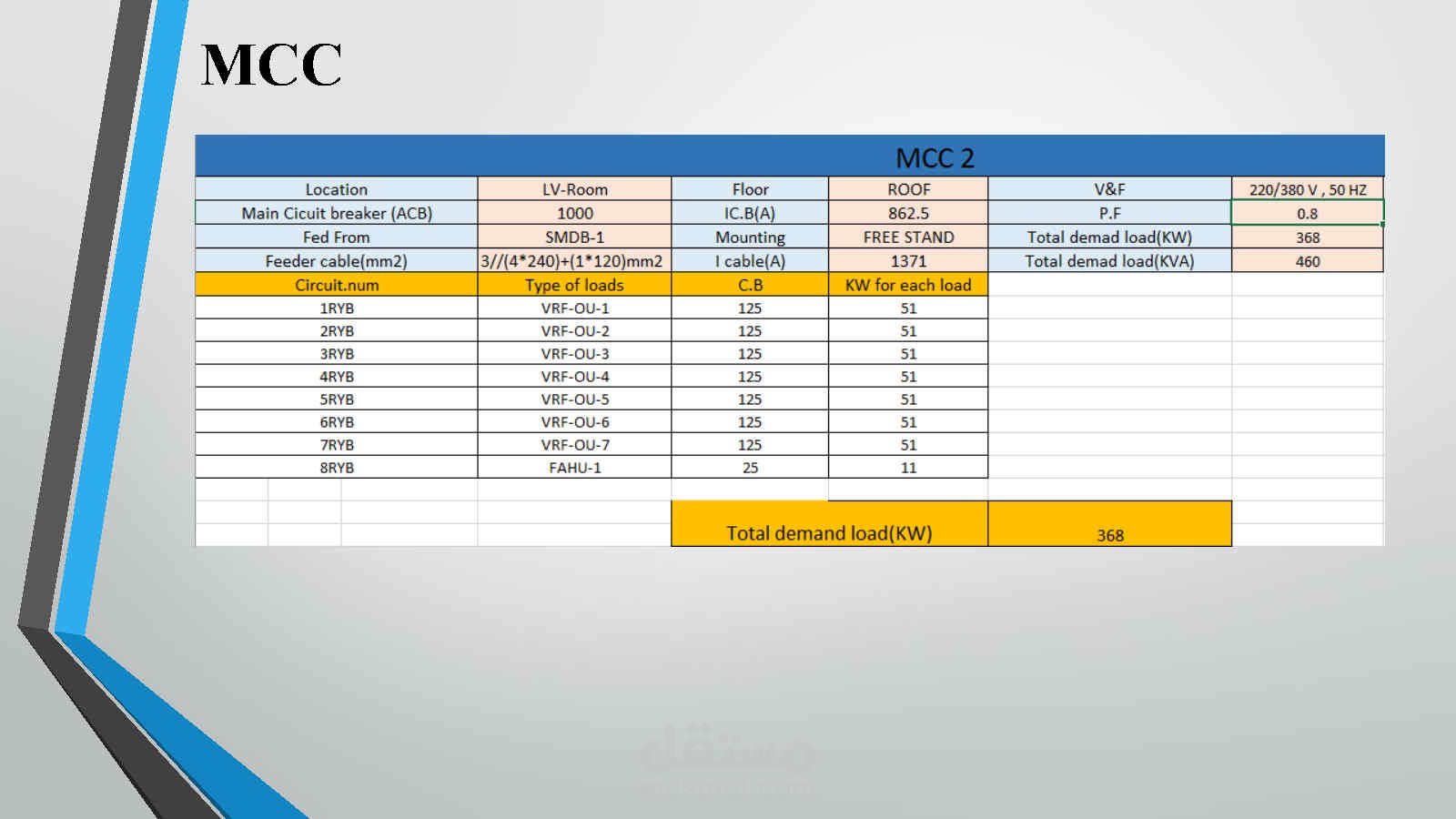

This included lighting design by DIALux and AutoCAD, Power design, Panel schedule for all loads, and cable routing.

3. Detailed design:

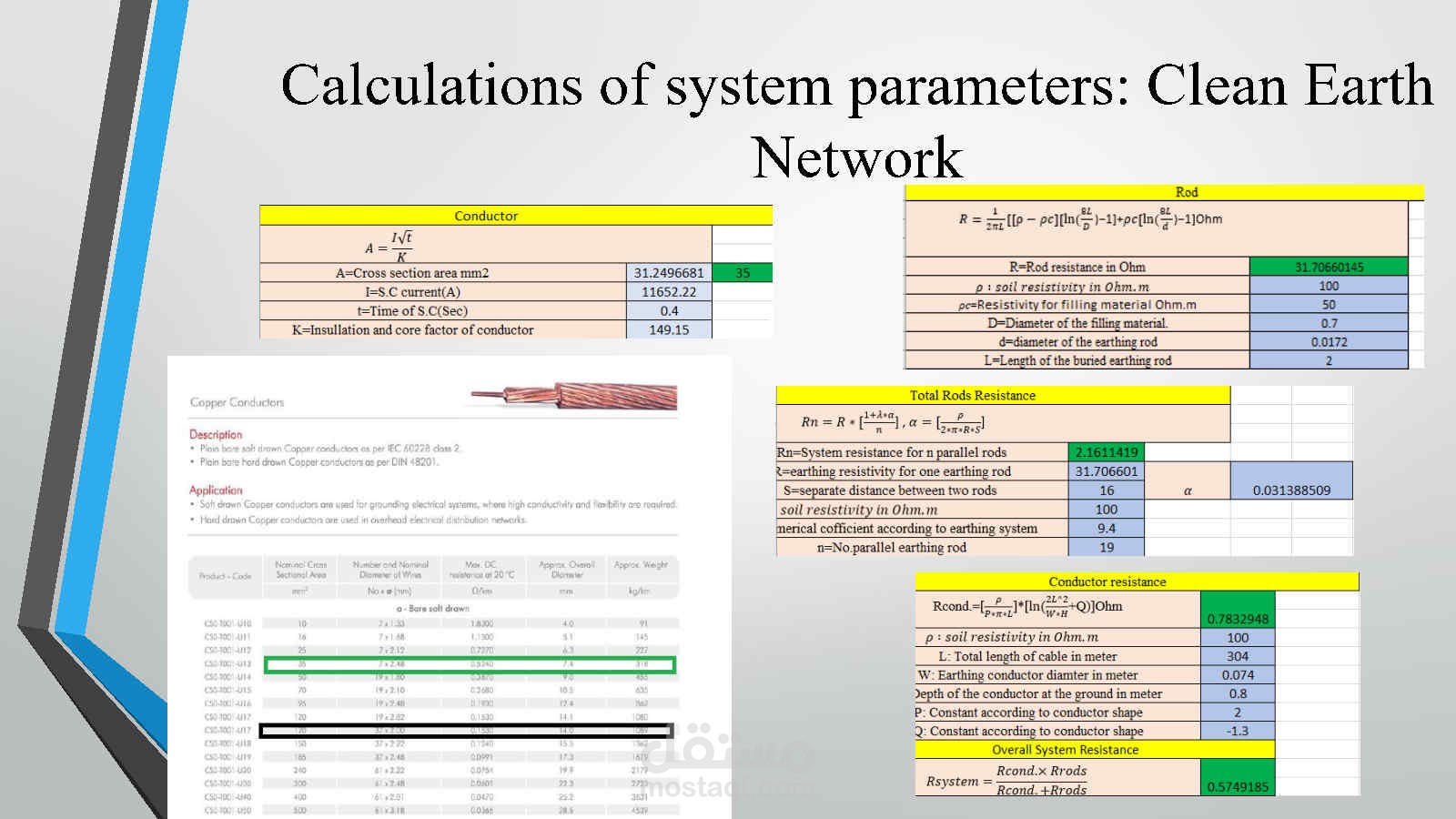

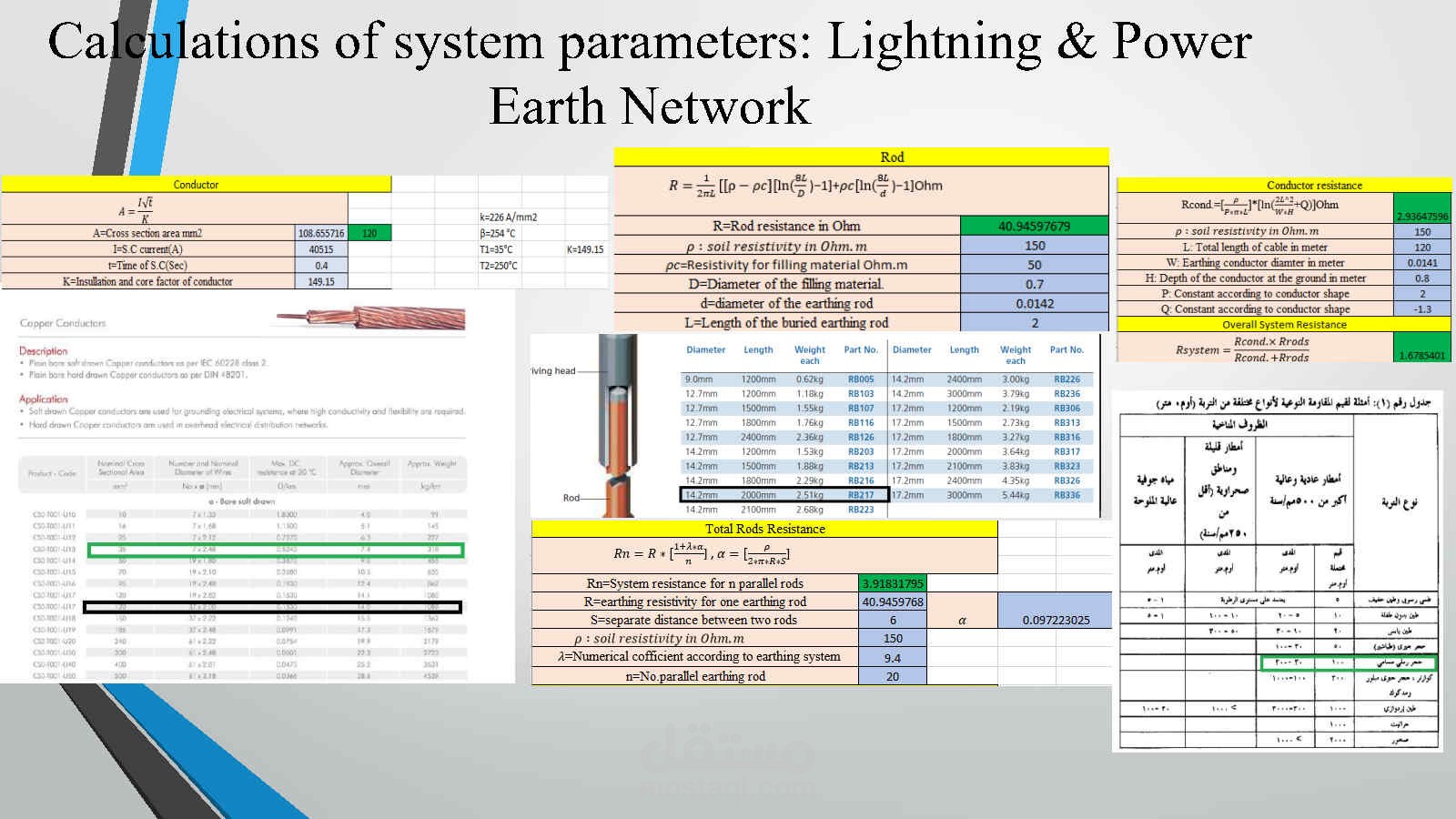

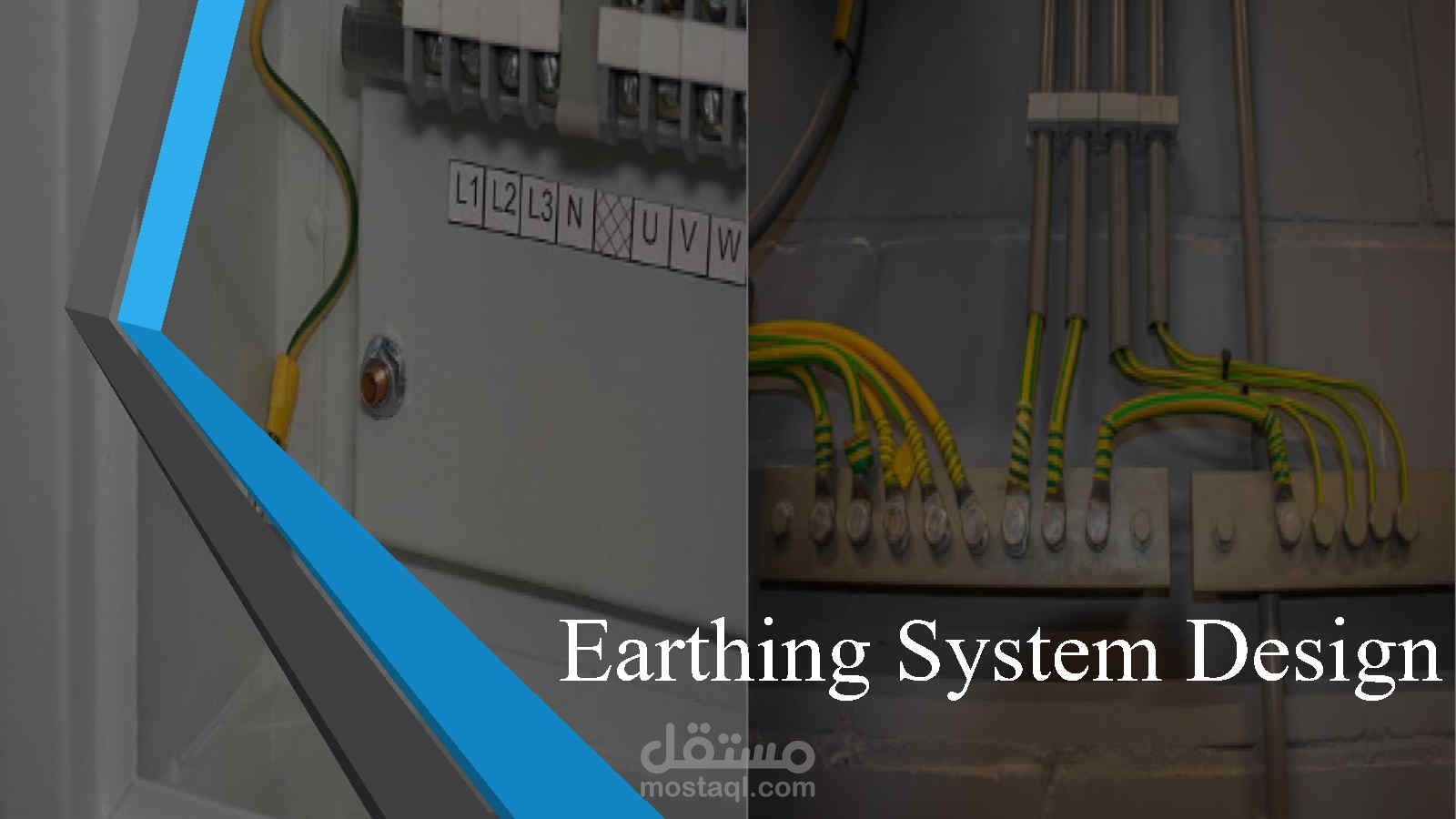

This included network calculations such as short circuit and voltage drop calculations,power factor correction, building the SLD for the project, and finally earthing and lightning protection systems design.

The built-up area of the building: 14220 m2 and it consists of 1 basement floor and 2 floors and roof.
