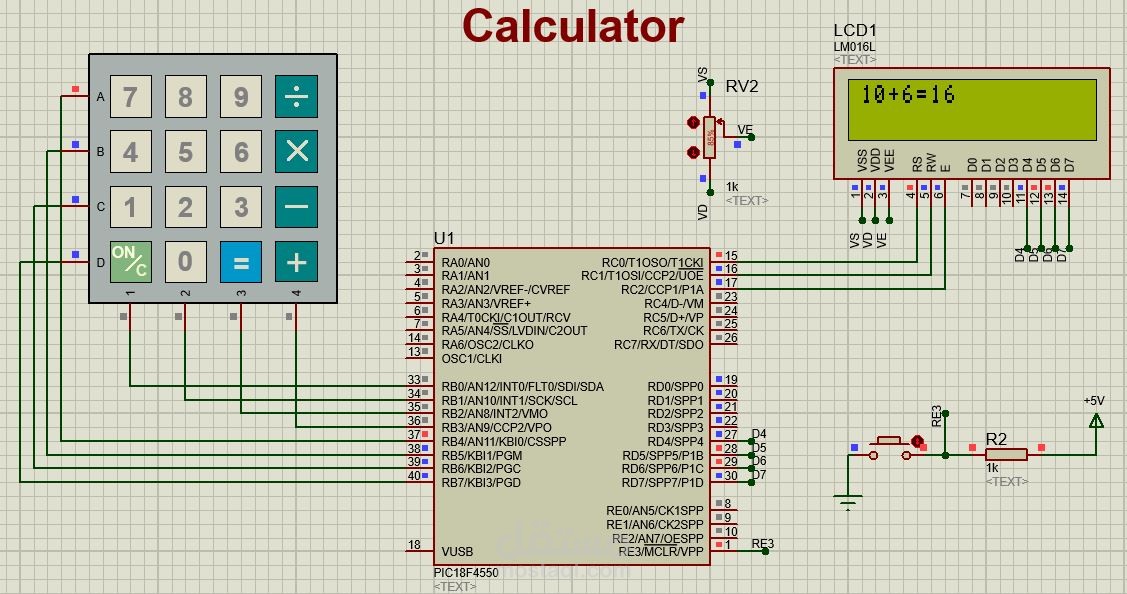

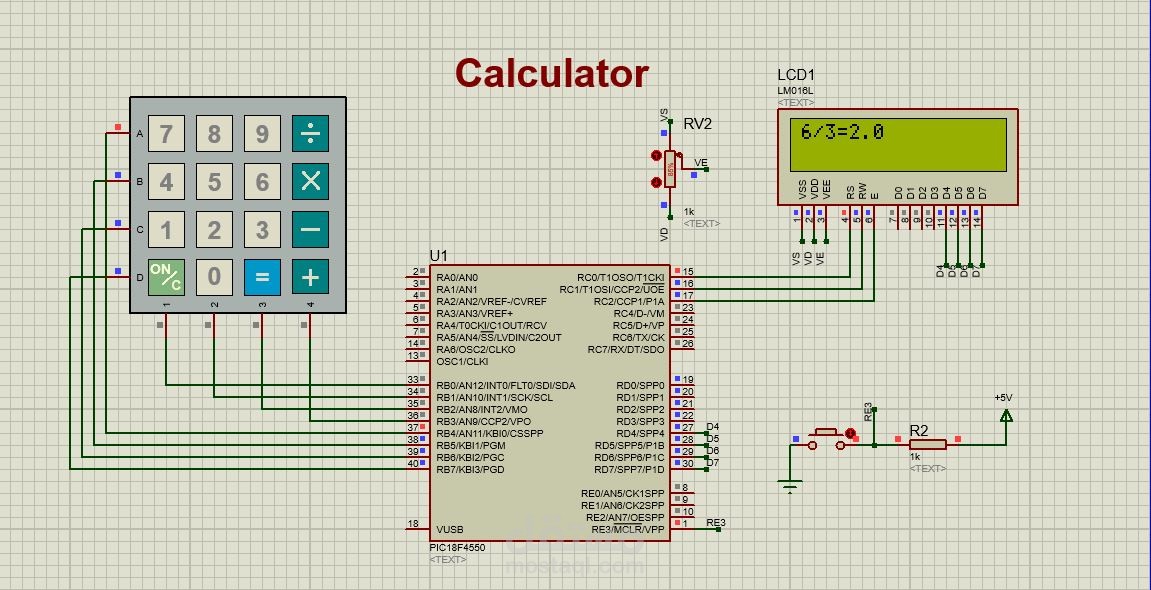

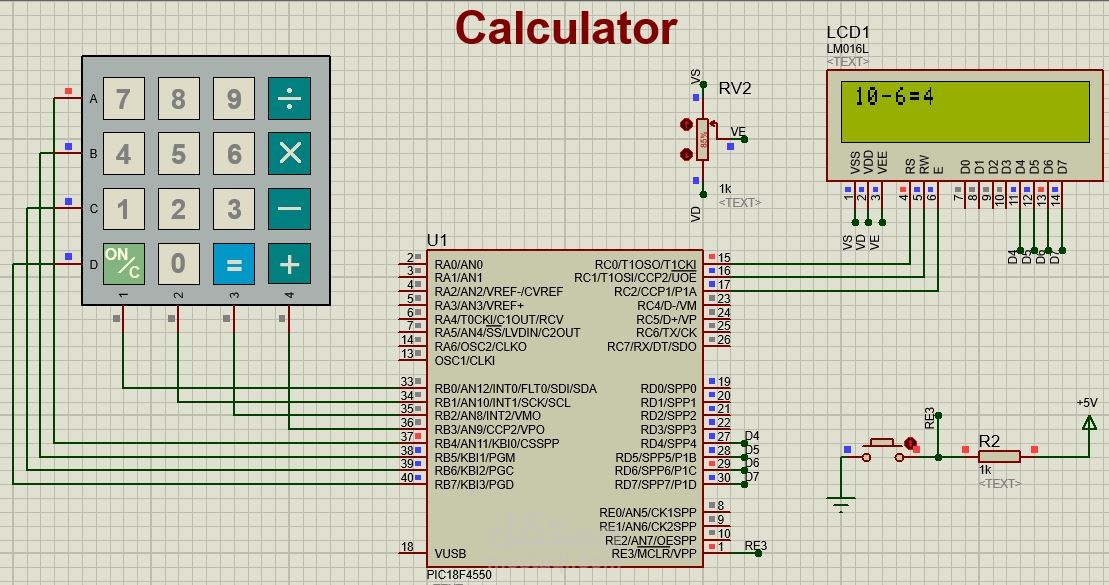

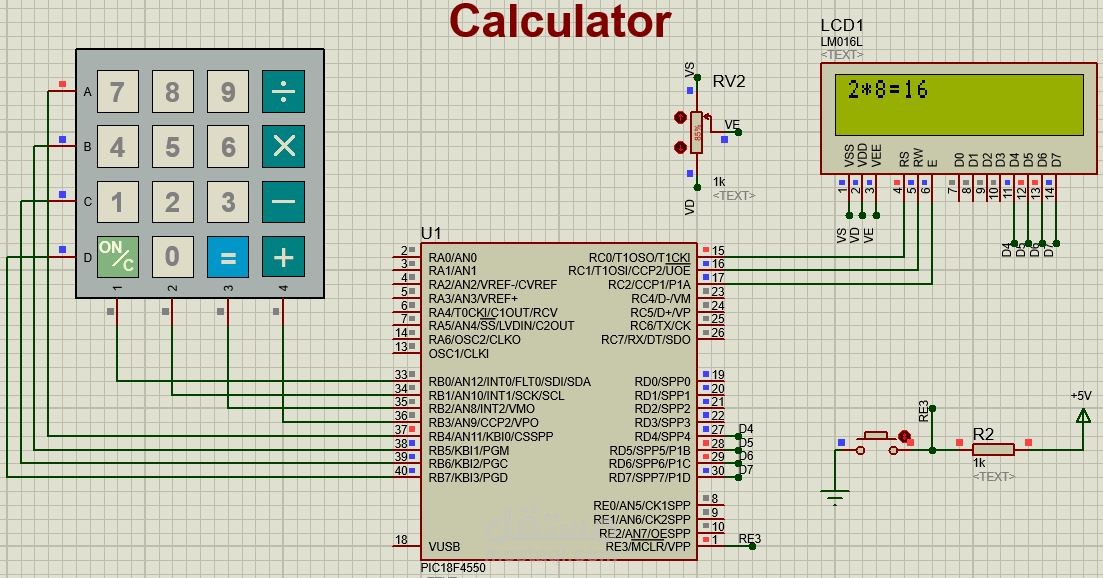

Simple Calculator using PICF184550 Microcontroller that can perform the basic arithmetical operations like Addition, Subtraction, Multiplication, and Division. With interfacing an LCD to print out the whole operations.
Components:
1) PICF184550 Microcontroller.
2 ) 16*2 LCD module.
3 ) 4*4 Keypad.
4) Passive components.
Developed using C language in MPLAB X IDE, and simulated using Proteus 8 Professional.
For ordering go to : https://rb.gy/1cqyv6
