Washing Machine Motor Control Circuit Simulation

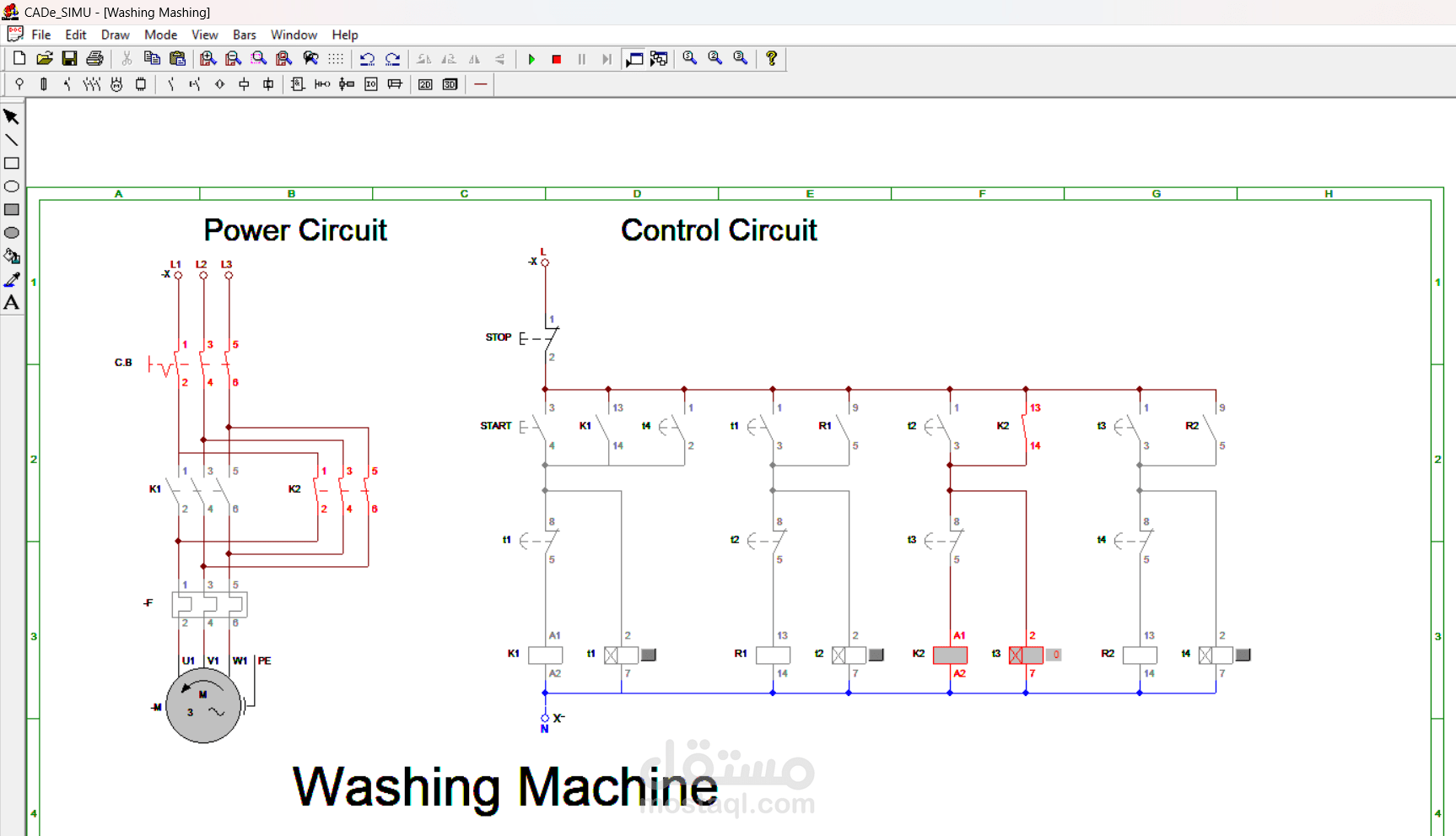

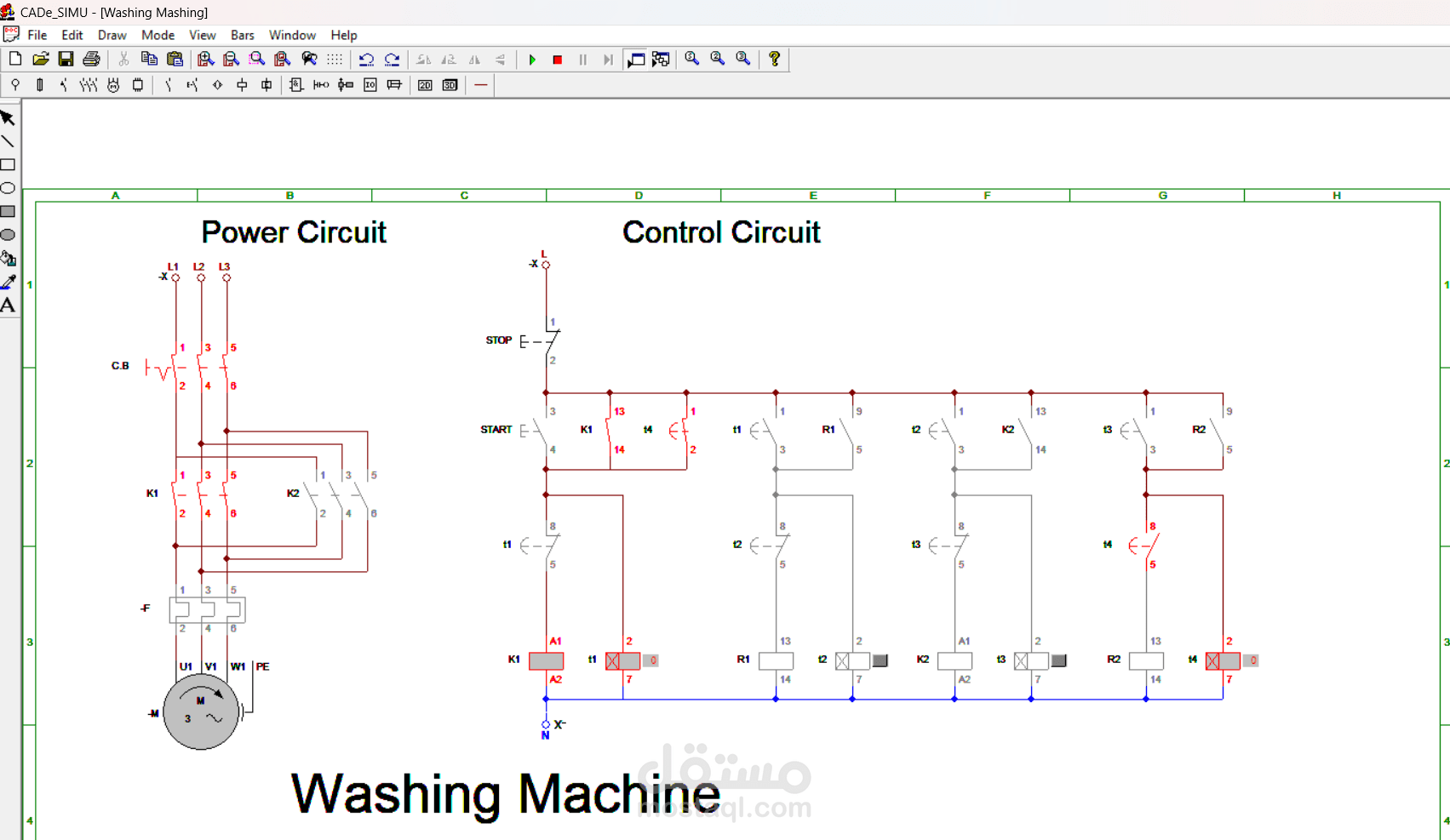

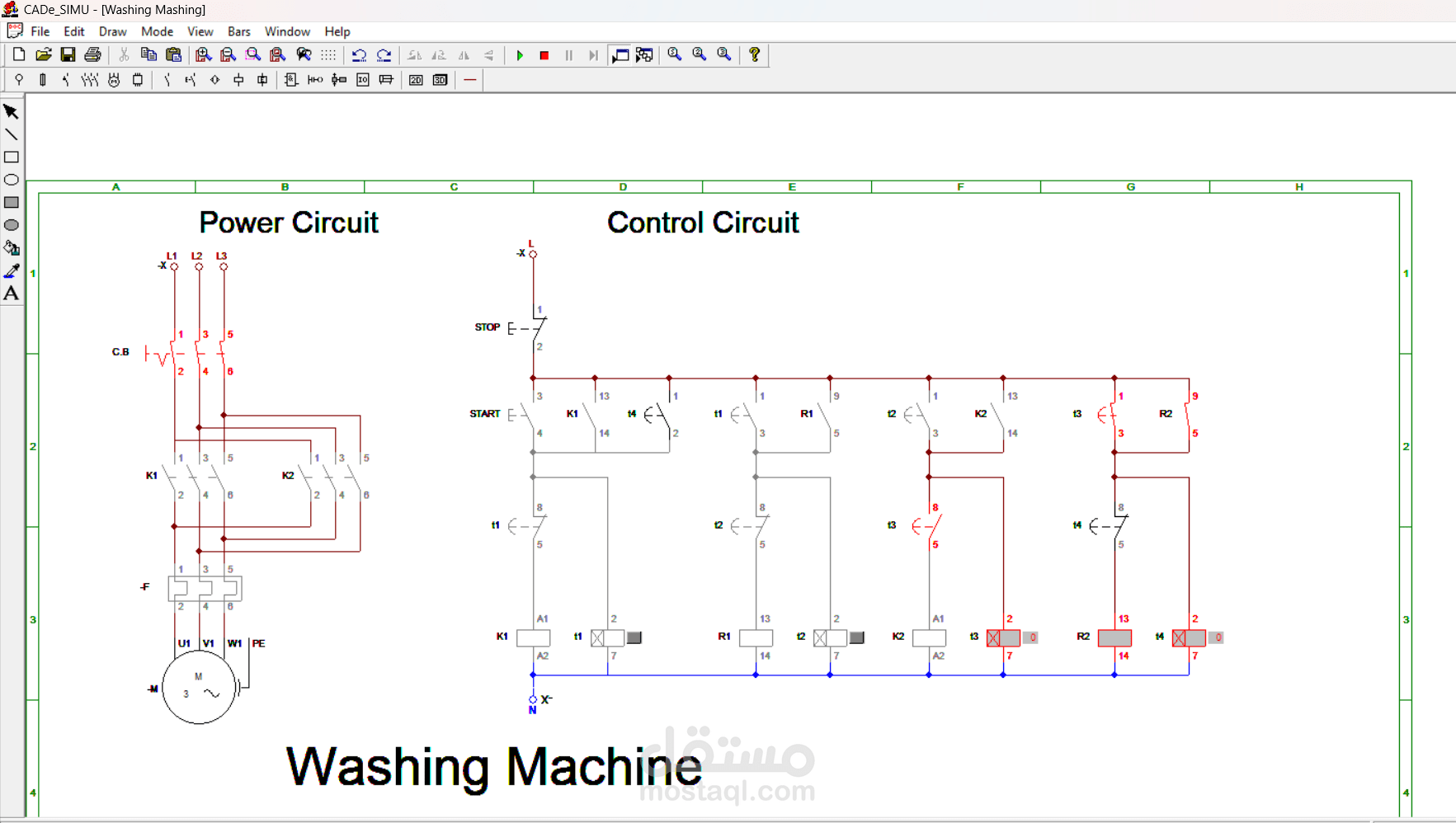

Designed and simulated an automatic washing machine motor control circuit using CADe_SIMU.

Project Features:

• Forward and reverse motor rotation control

• Timer-based operation sequence

• Power circuit and control circuit design

• Contactors, relays, and timers implementation

• Electrical interlocking for safe operation

• Complete simulation and testing

Tools Used:

CADe_SIMU, Motor Control Circuits, Industrial Automation, Electrical Control Systems
