HIGH-PRECISION 4-CYLINDER CRANKSHAFT

Project Overview :

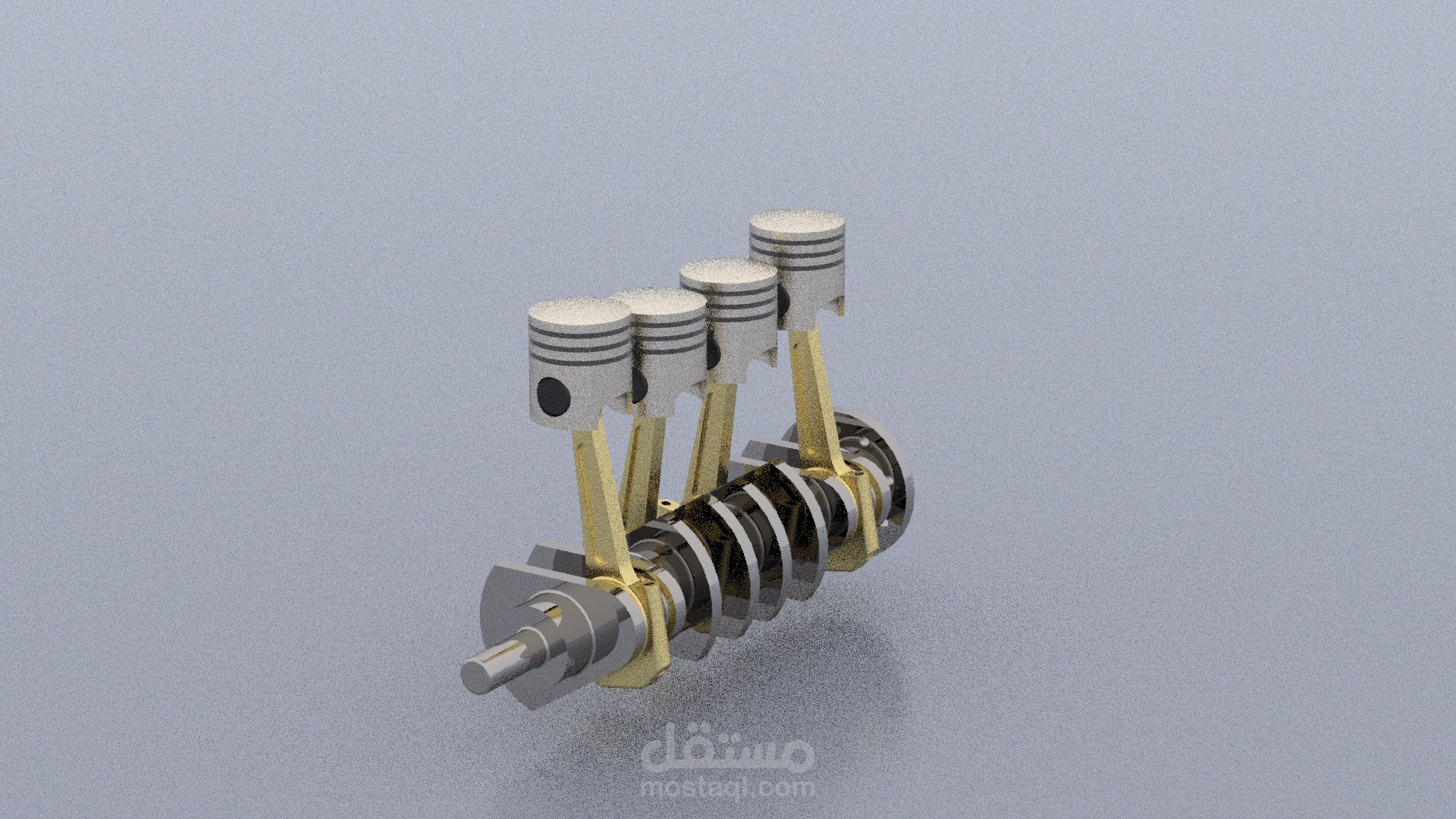

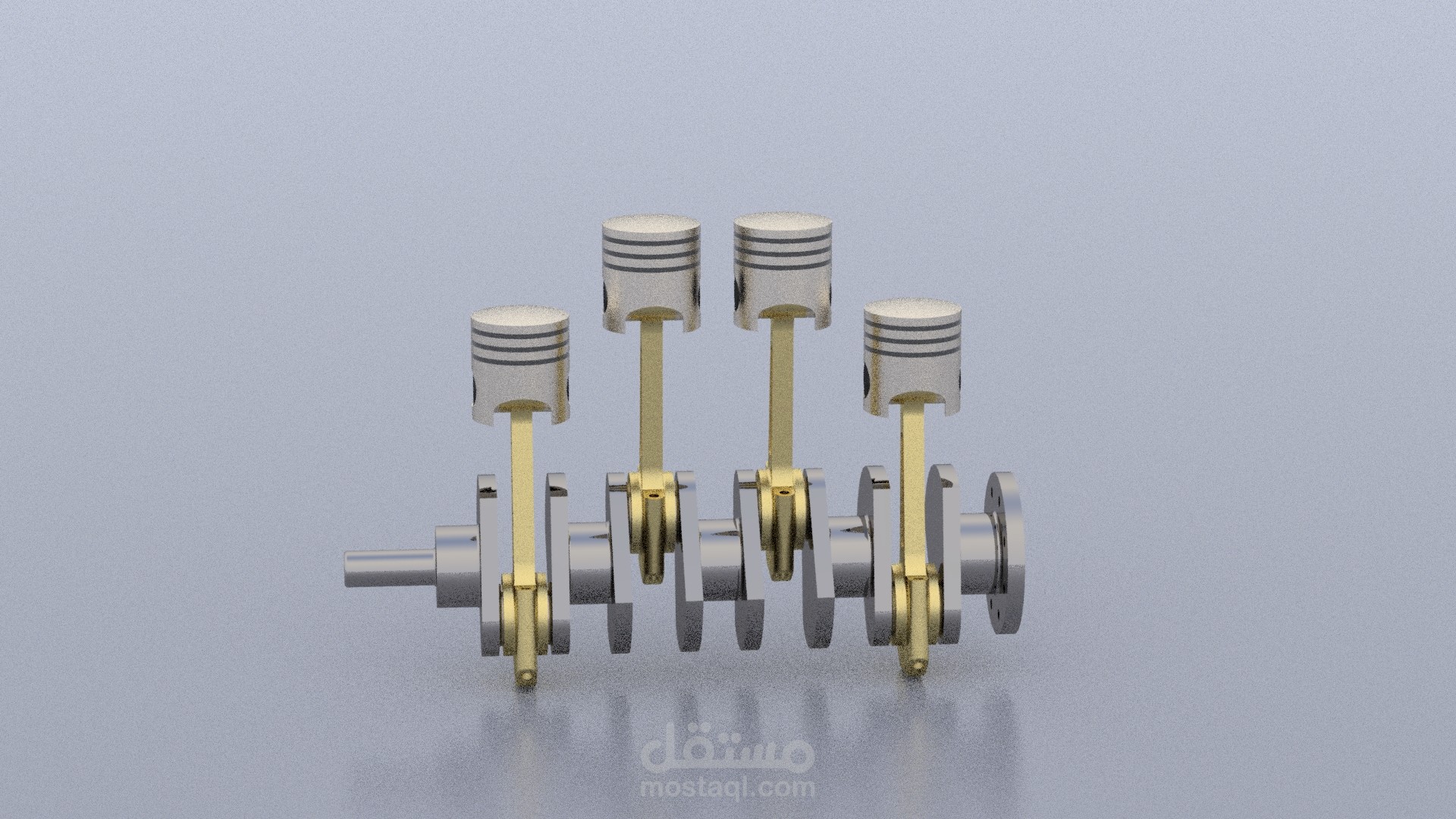

This project showcases a comprehensive 3D assembly of a 4-cylinder engine's core

drivetrain components. The model highlights the intricate relationship between the

crankshaft, connecting rods, and pistons, engineered for both mechanical fidelity and visual

excellence.

Technical Excellence

Every component within this assembly was modeled following rigorous engineering

standards.

Key technical achievements include:

Kinematic Accuracy: Implementation of advanced mates to simulate real-world

mechanical motion and synchronization.

Complex Geometry: Precision modeling of crankshaft counterweights and oiling

passages.

Material Simulation: Strategic application of Alloy Steel, Aluminum, and Brass

textures to mimic industrial manufacturing finishes.

"I don't just create 3D models; I bring mechanical concepts to life with manufacturing

ready precision."
