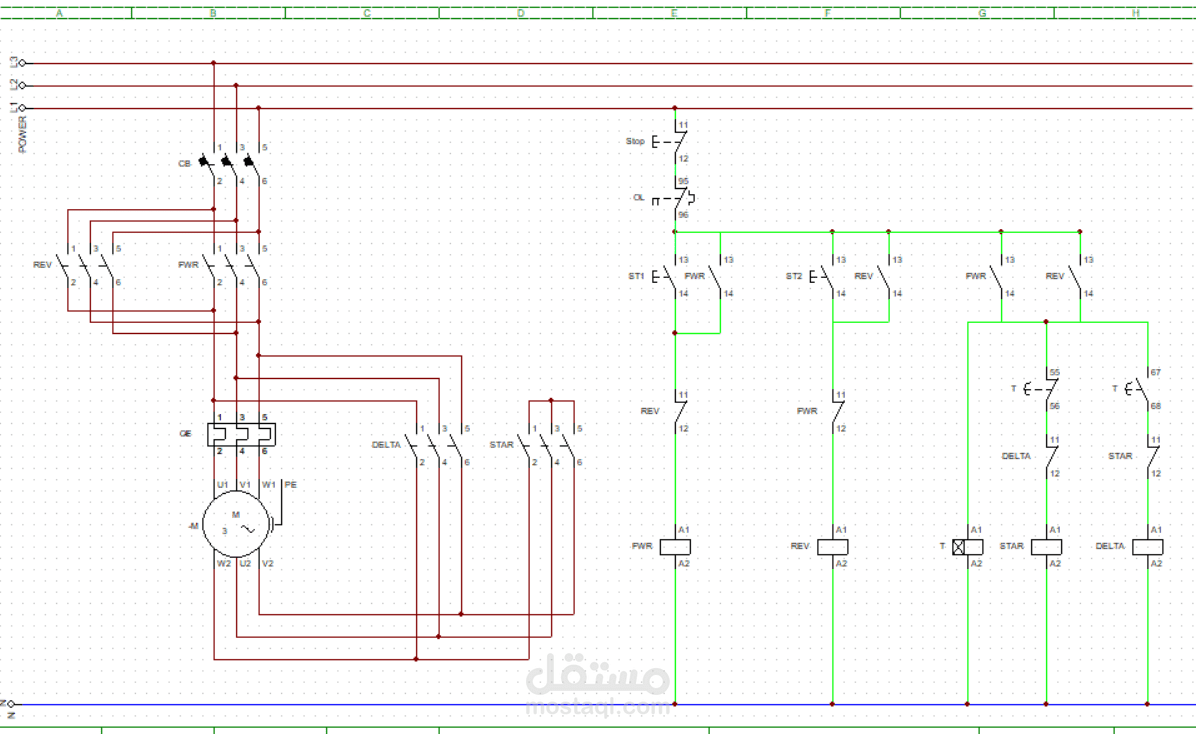

Industrial Star-Delta Motor Control with Forward/Reverse Logic

Objective:

Designed a robust Classic Control system for 3-phase induction motors, integrating reduced-voltage starting with bidirectional rotation control.

Technical Highlights:

Automatic Start-Delta Transition: Optimized for energy efficiency and reduced starting torque/current using an automated timer logic.

Dual-Direction Control: Full implementation of Forward/Reverse switching with hardware and software interlocks.

Integrated Protection: Features Thermal Overload (OL) protection and electrical interlocking to prevent short circuits and motor burnout.

Verification: Logic and performance fully validated via live simulation in CADe_SIMU.
