Structural Engineer | Rebar Detailing & Shop Drawings

Project Title:

Reinforced Concrete Footings Shop Drawings & Rebar Detailing | ASD

Description:

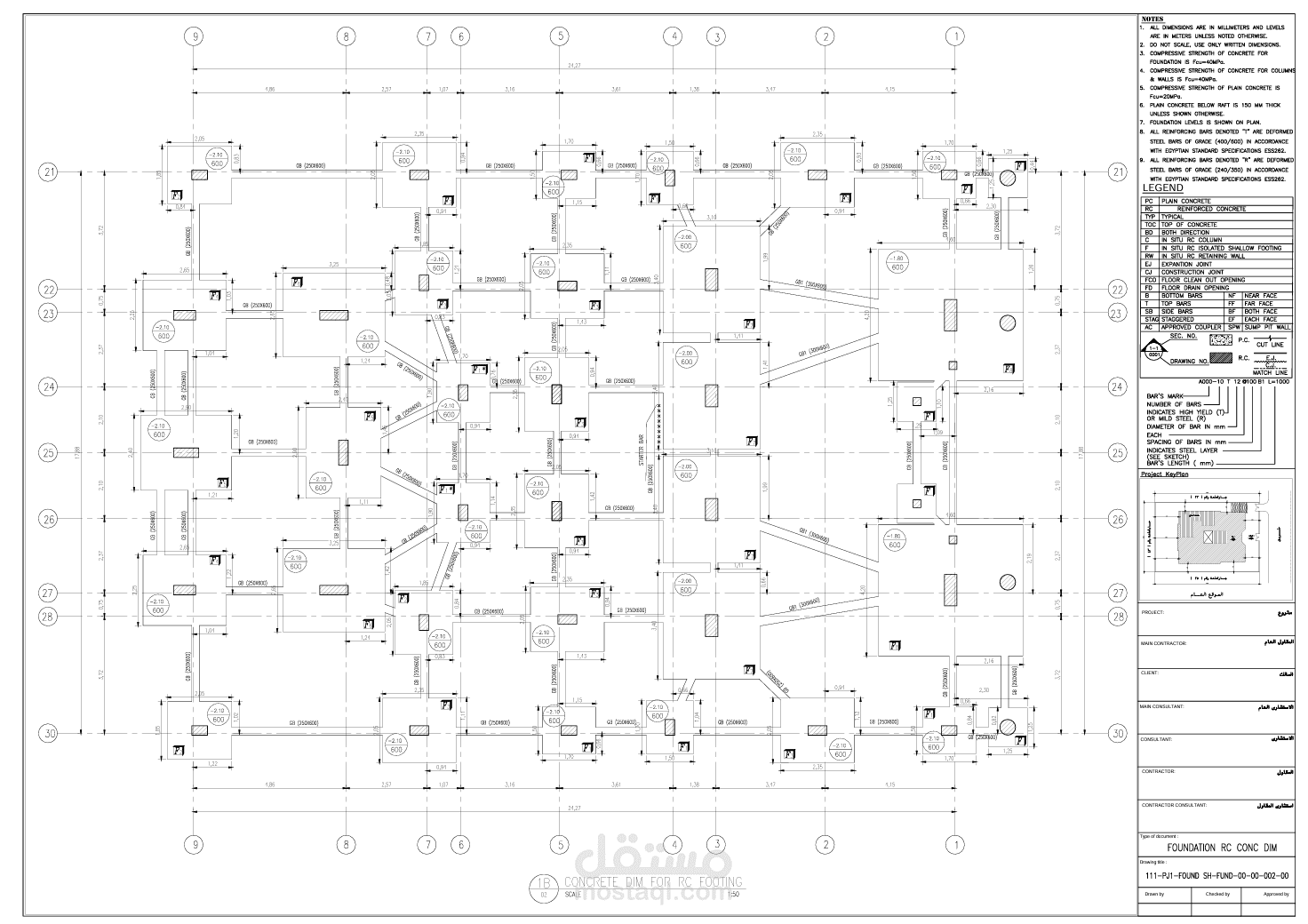

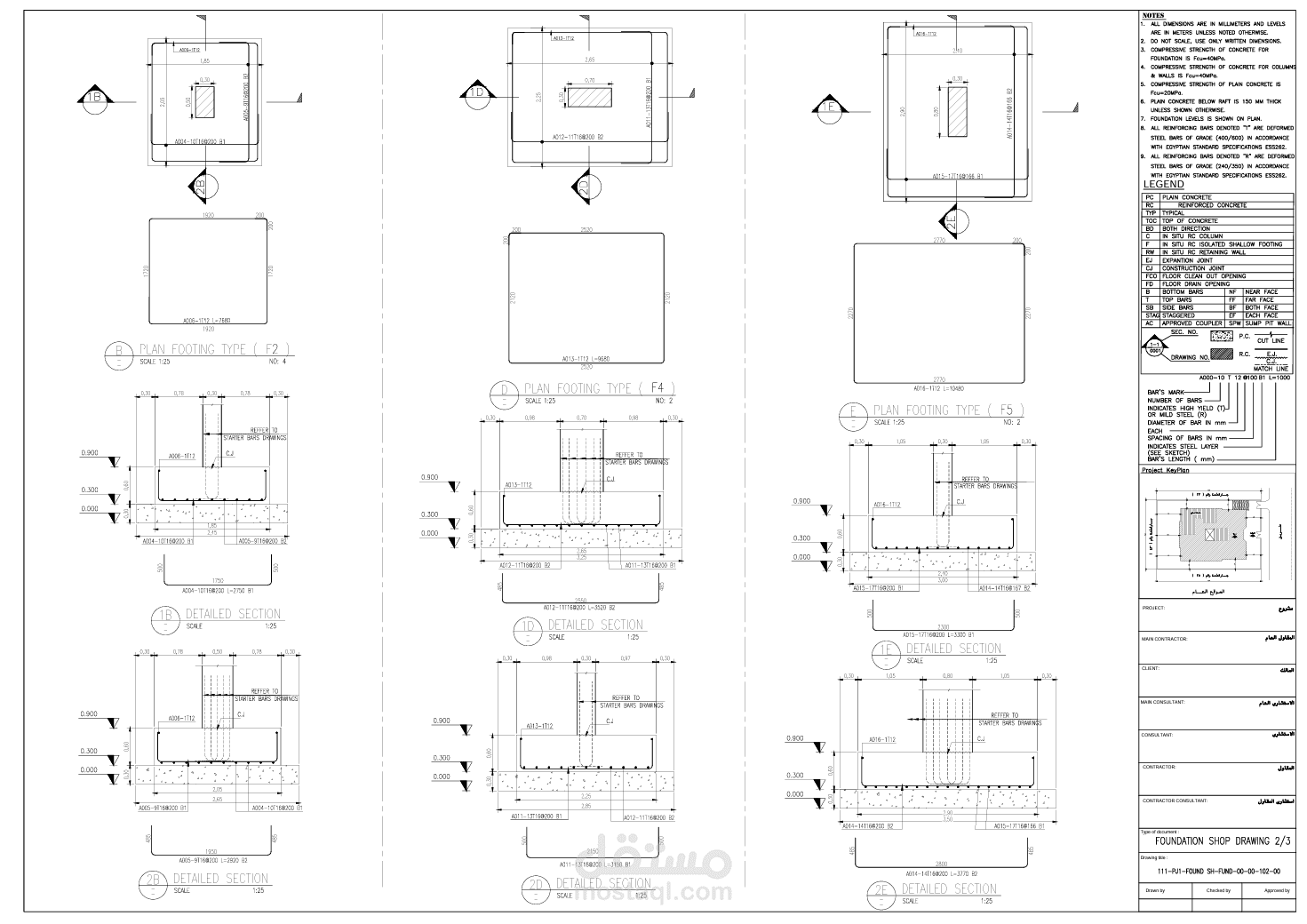

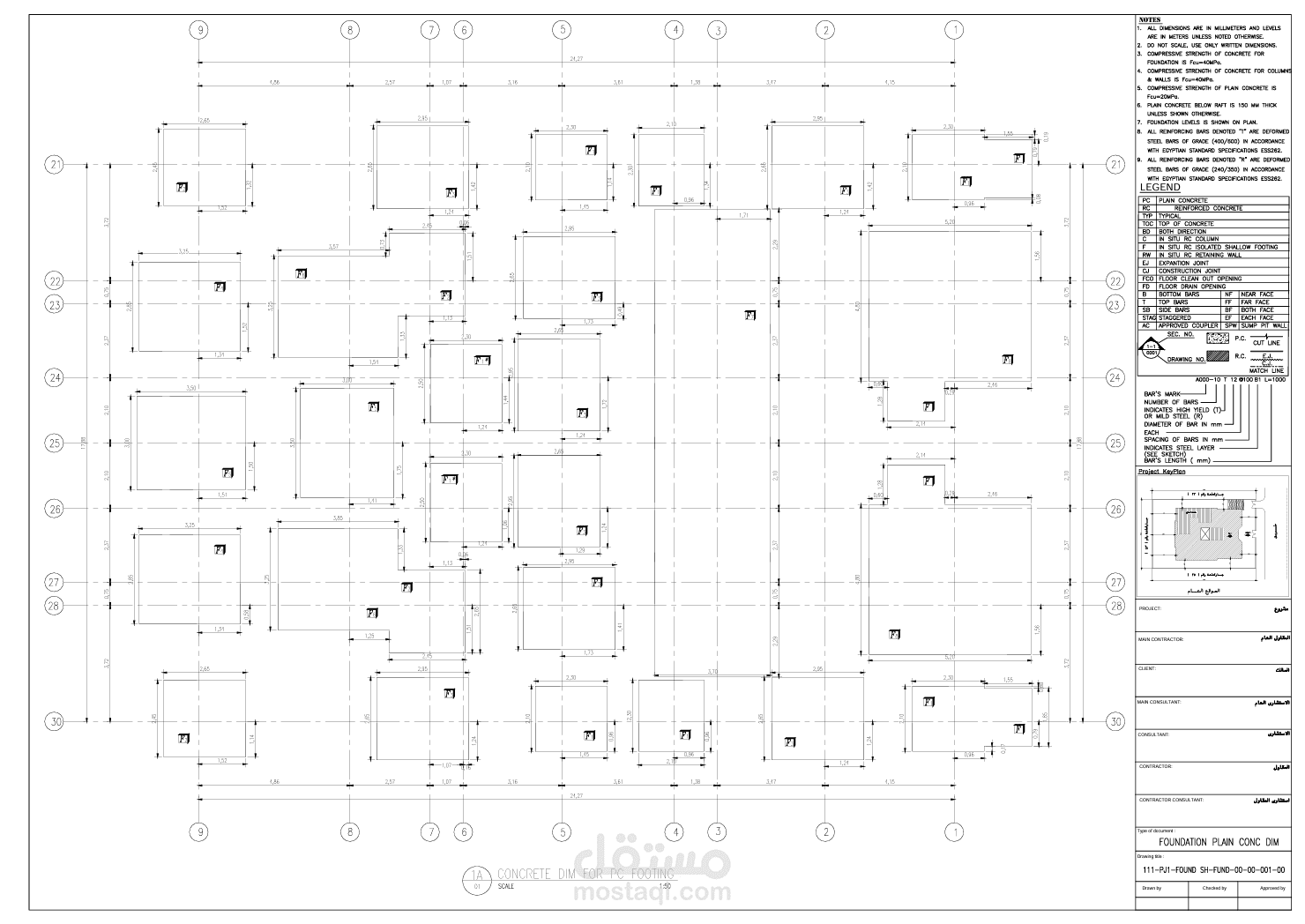

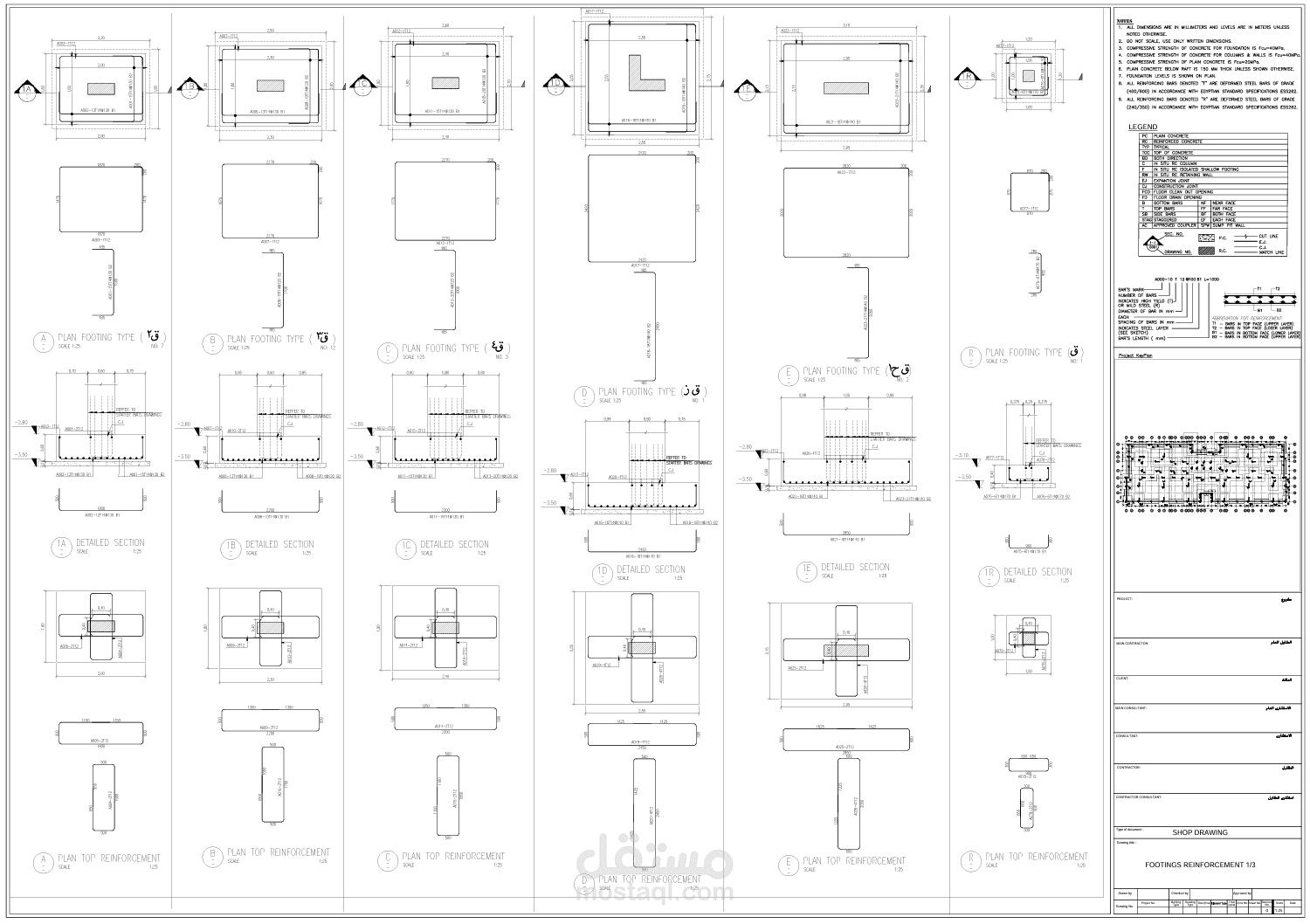

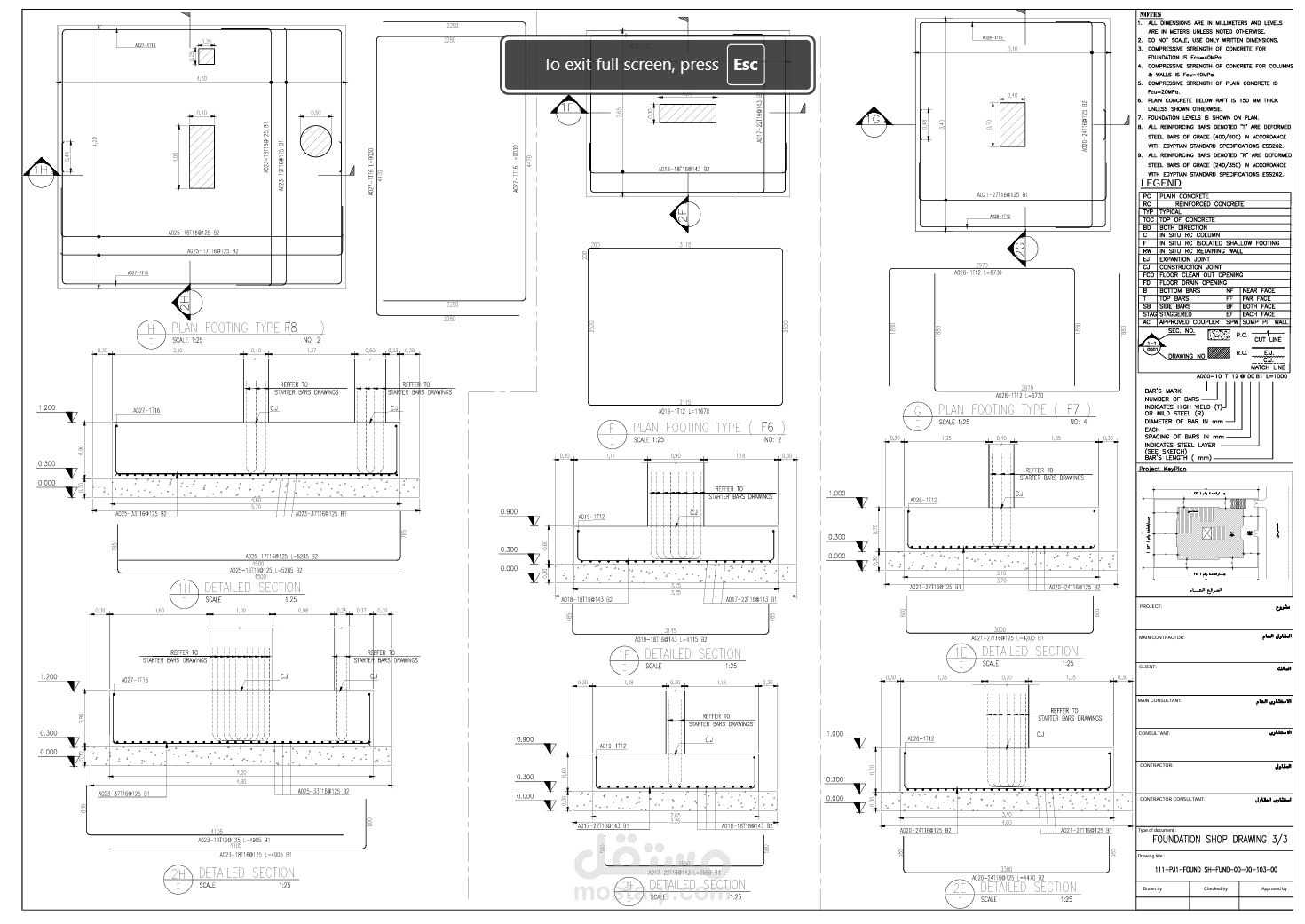

I prepared detailed shop drawings for reinforced concrete isolated footings for a residential project with an area of approximately 600 sqm.

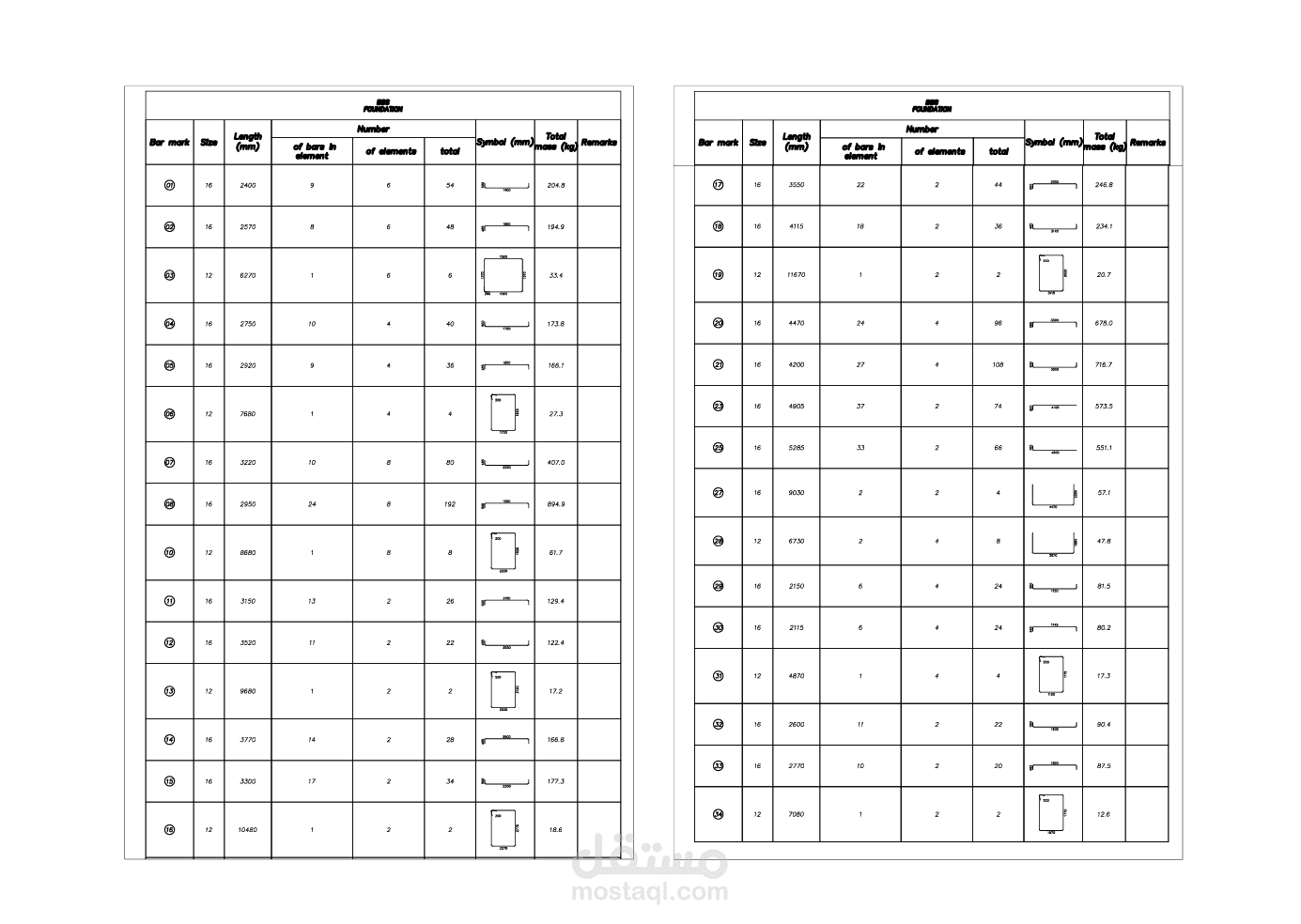

Using ASD, I delivered accurate reinforcement detailing including bar bending schedules (BBS), dimensions, and clear annotations for site execution.

The drawings helped ensure accurate construction, reduce errors on site, and improve overall project efficiency.
