System Analysis and Design for Online Ticket Booking System

This project presents the complete system analysis and design of a football ticket booking platform similar to the Tazkarti system.

The goal of this project is to analyze the system requirements and design the system architecture before the development phase.

The project includes several modeling techniques used in software engineering to clearly represent system processes, data flow, and user interactions.

System Design Components

User Stories

Requirements

Usecase

TRACEABILITY MATRIX

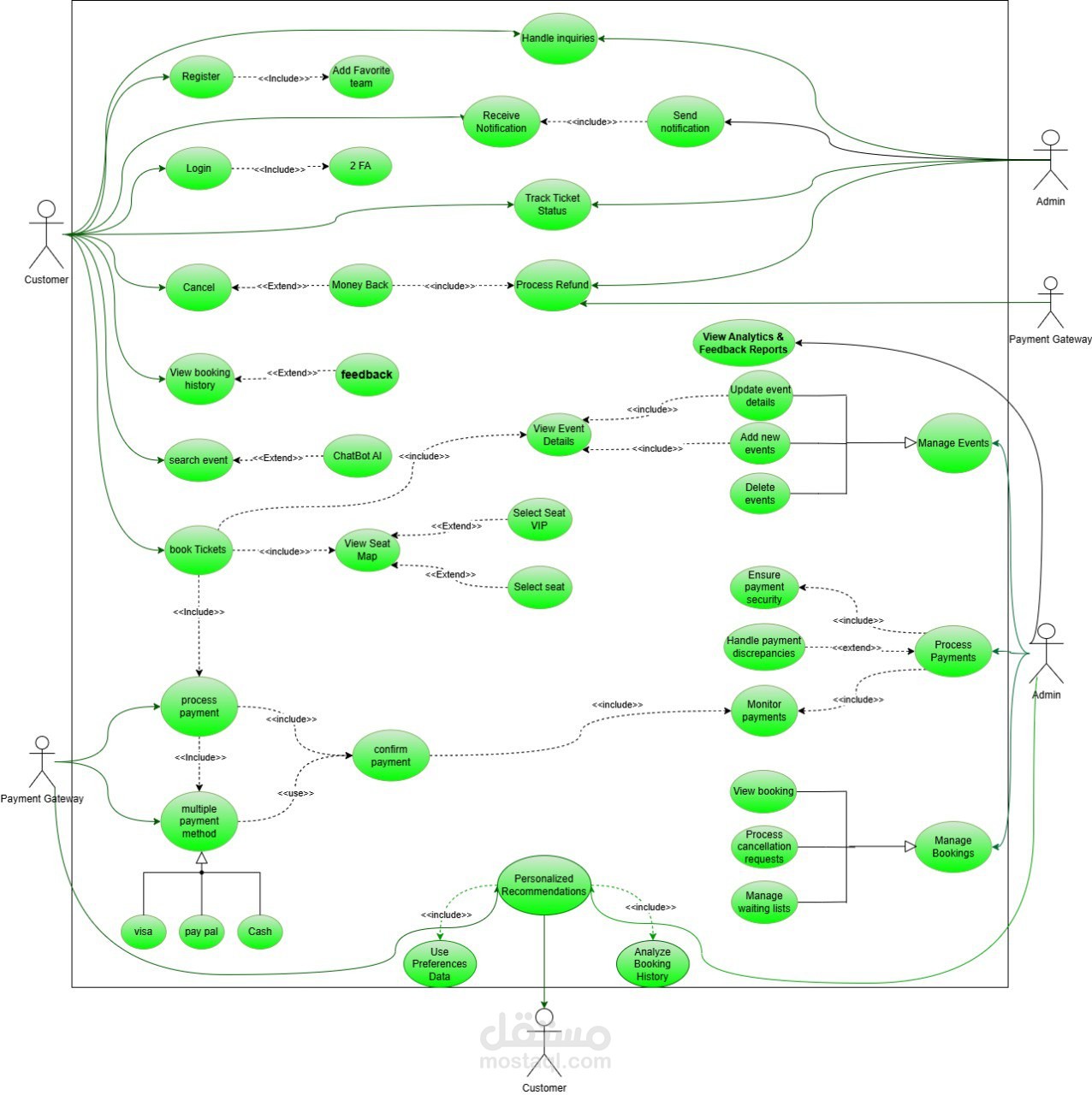

Use case Diagrams

Context Diagram

Data Flow Diagrams (DFD)

Entity Relationship Diagram (ERD)

Activity Diagrams

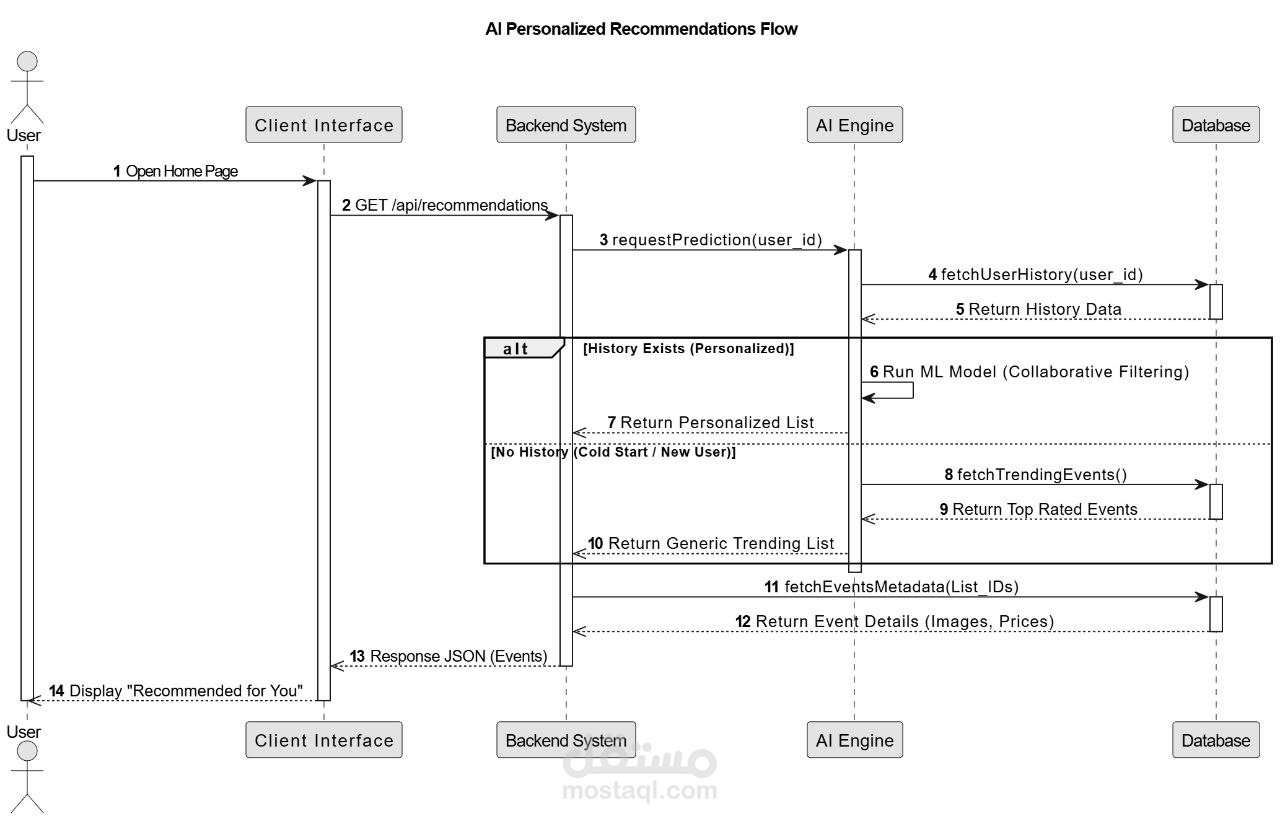

Sequence Diagrams

Class Diagram

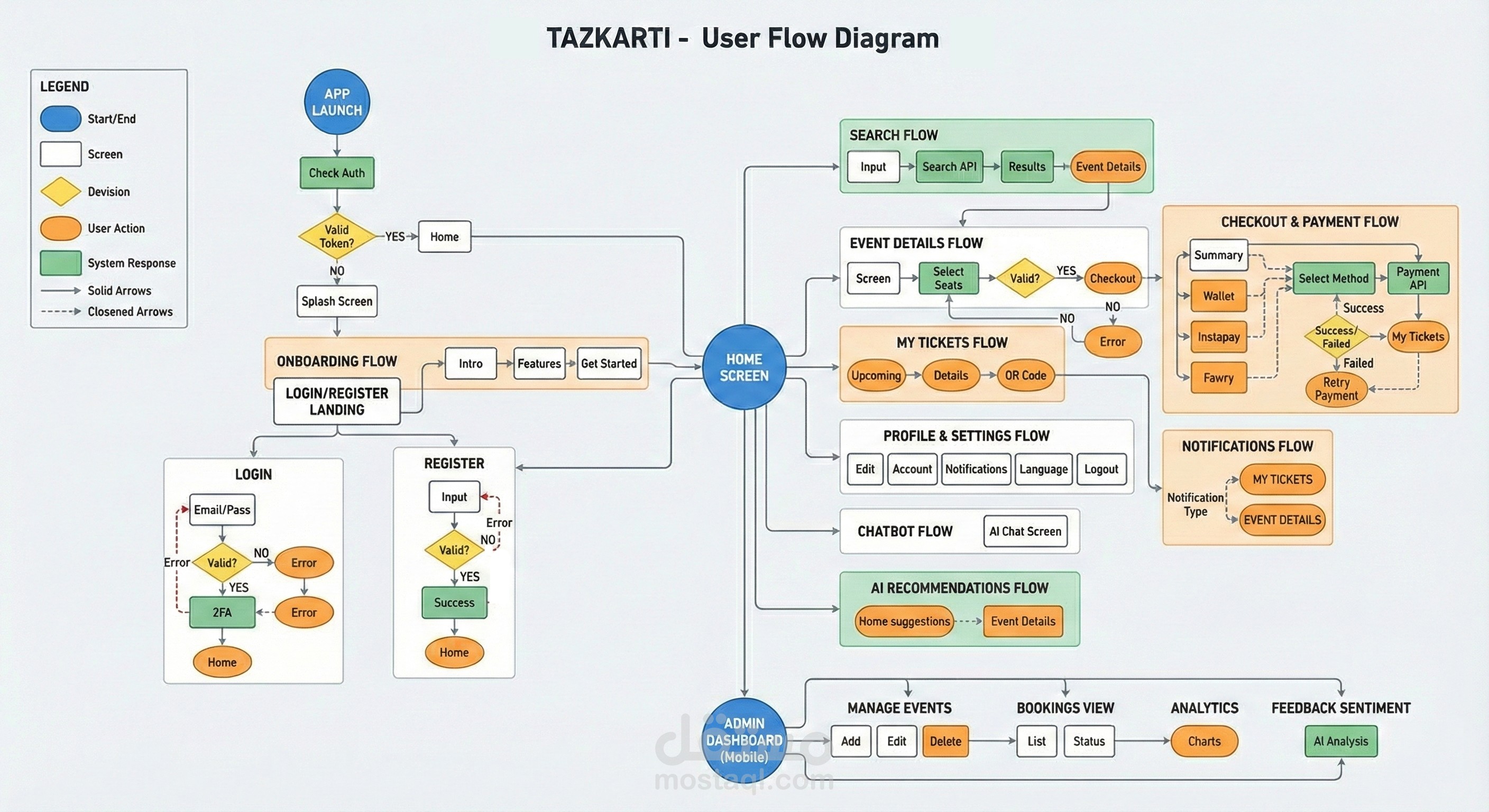

User Flow Diagram

System Workflow

User Interface Design (UI Prototype)

Project Outcome

The result is a fully structured system blueprint that can be used by developers to implement the platform efficiently.
