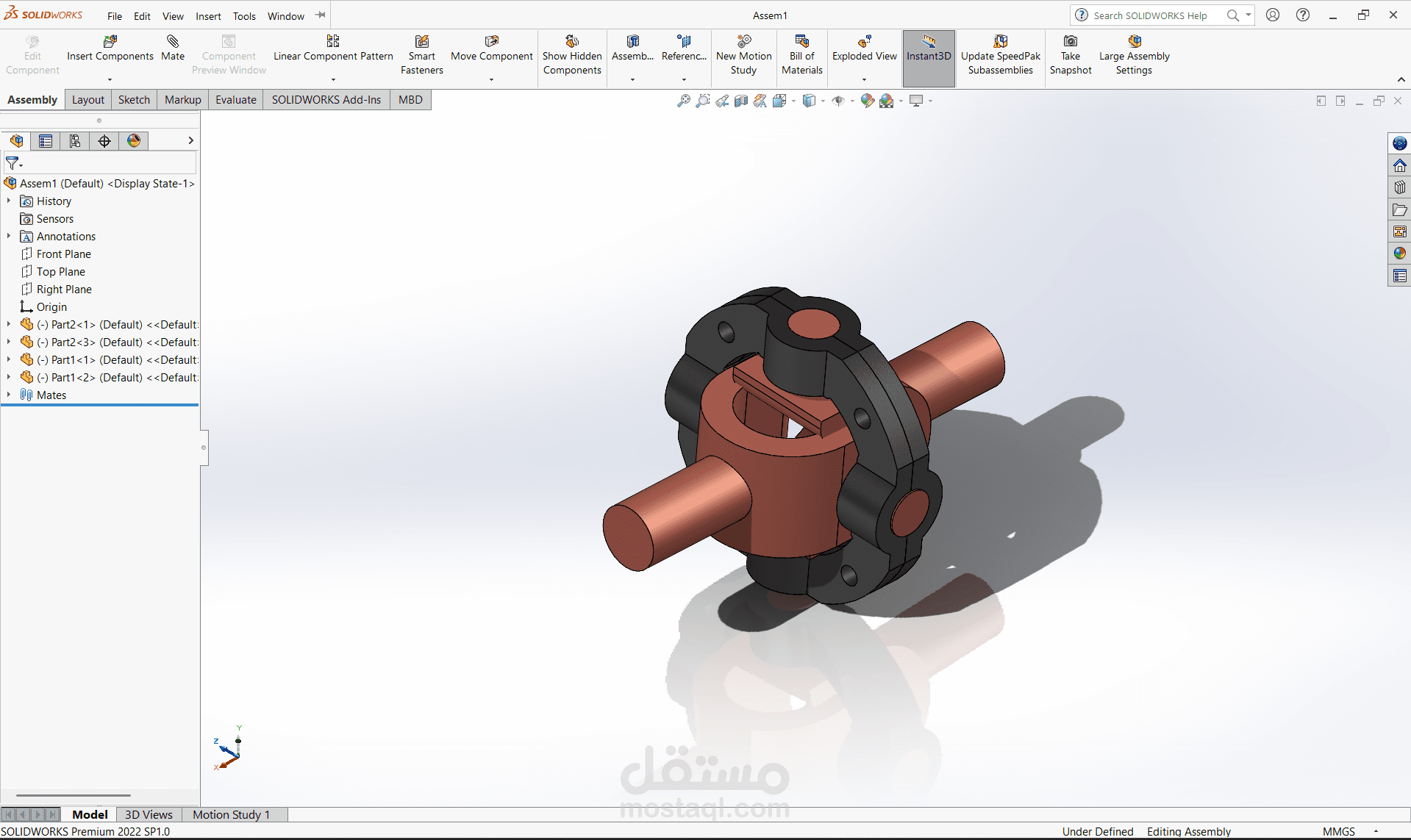

Mechanical Coupling Assembly – SolidWorks

Two cylindrical shafts connected through a central coupling body.

Split coupling design with upper and lower clamping sections.

Bolt holes integrated into the outer housing for secure fastening.

Internal slot and key-like feature to ensure proper torque transmission.

Clean geometry with realistic materials applied for visual clarity.
