Aluminium &Glass shop drawing

This drawing showcases a complete aluminum and glass curtain wall shop drawing prepared for a villa project including Ground Floor, First Floor, and Roof levels.

The work includes:

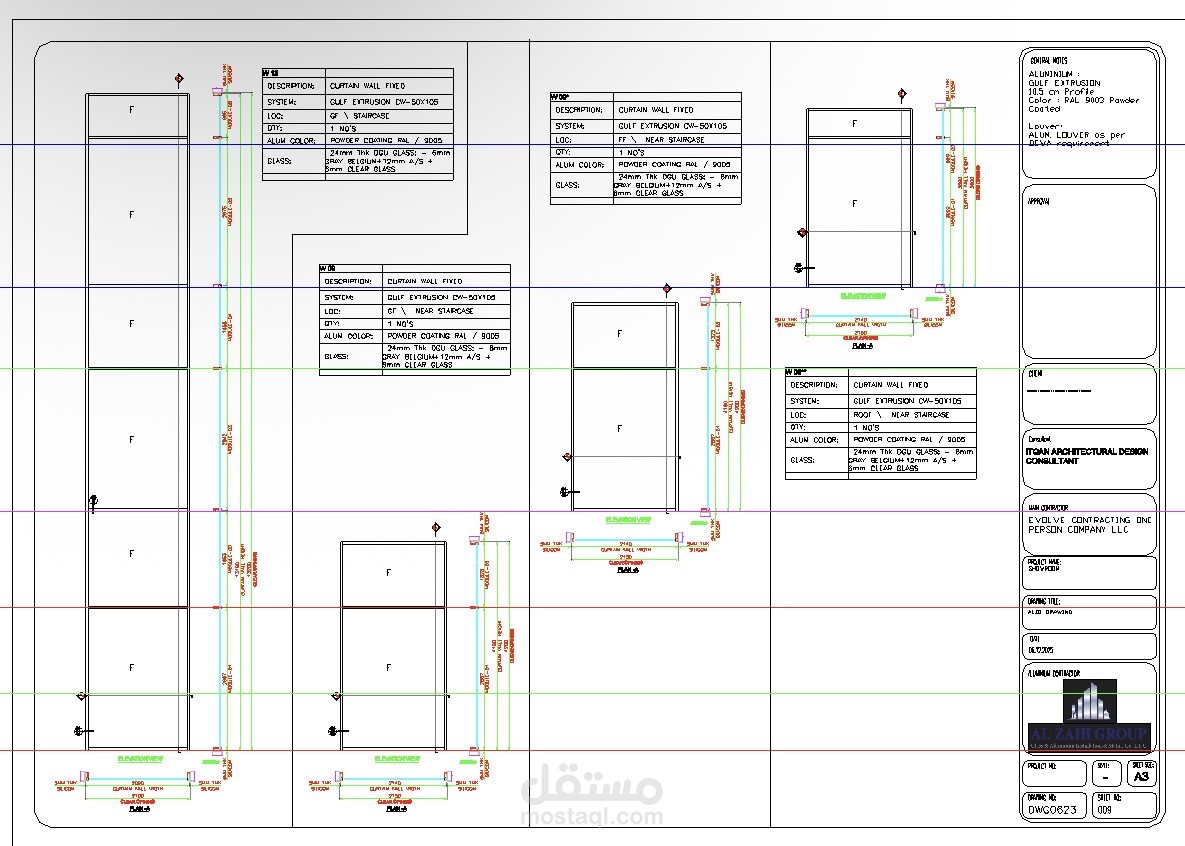

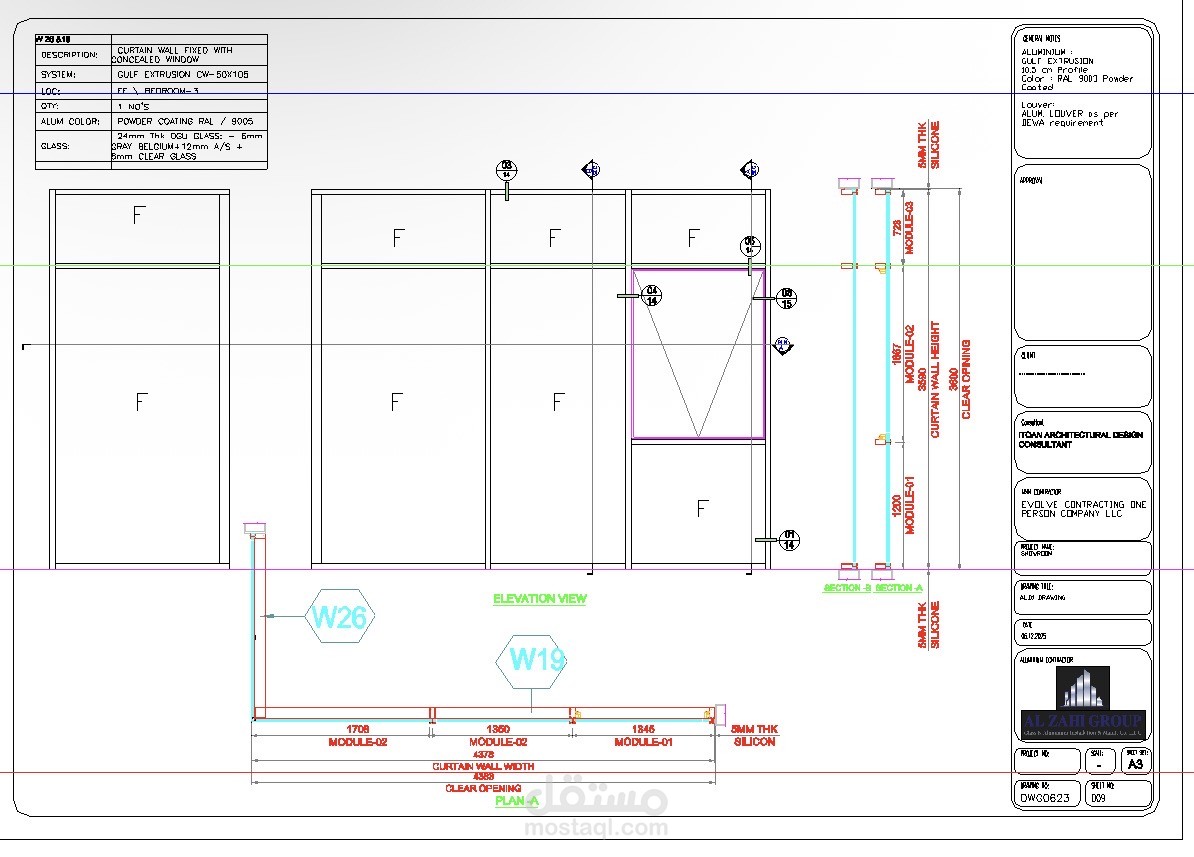

• Full elevation drawings for multiple façades

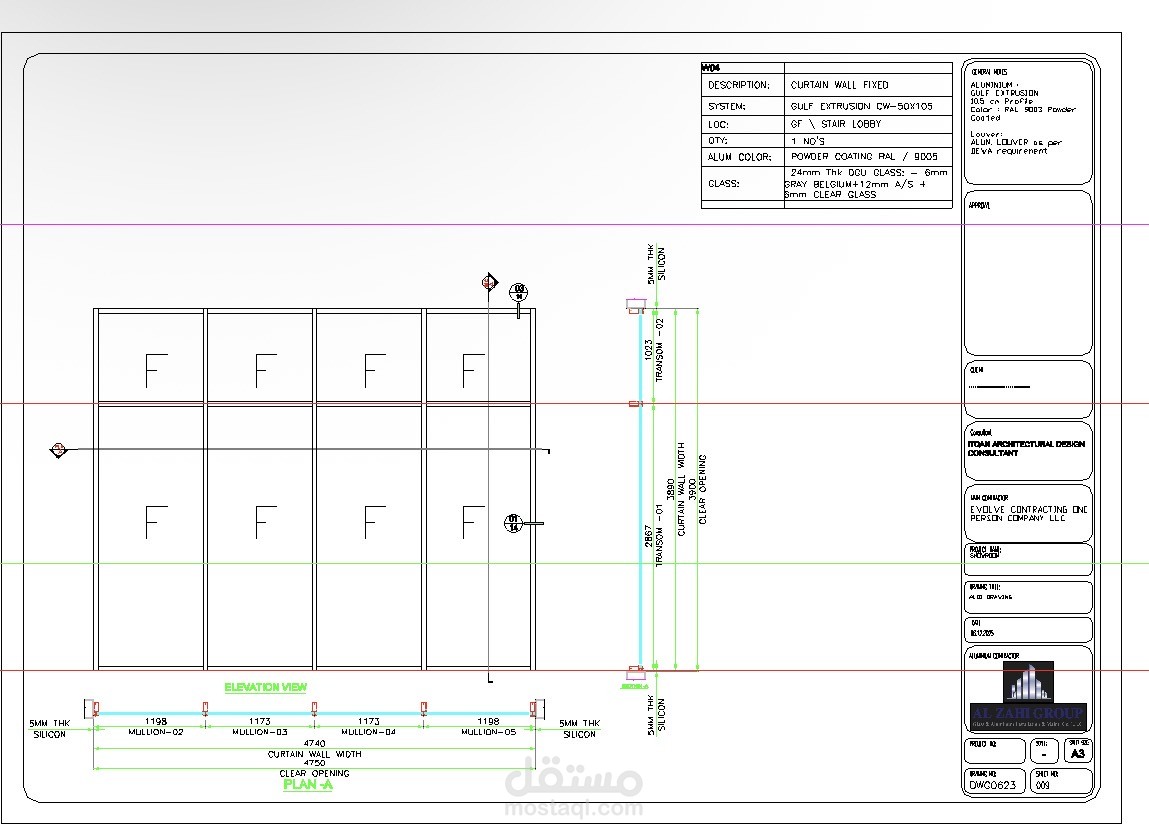

• Mullion & transom layout with complete dimensions

• Aluminum profile detailing (Gulf Extrusion CW-50X105 system)

• Glass specifications: 24mm DGU and tempered glass combinations

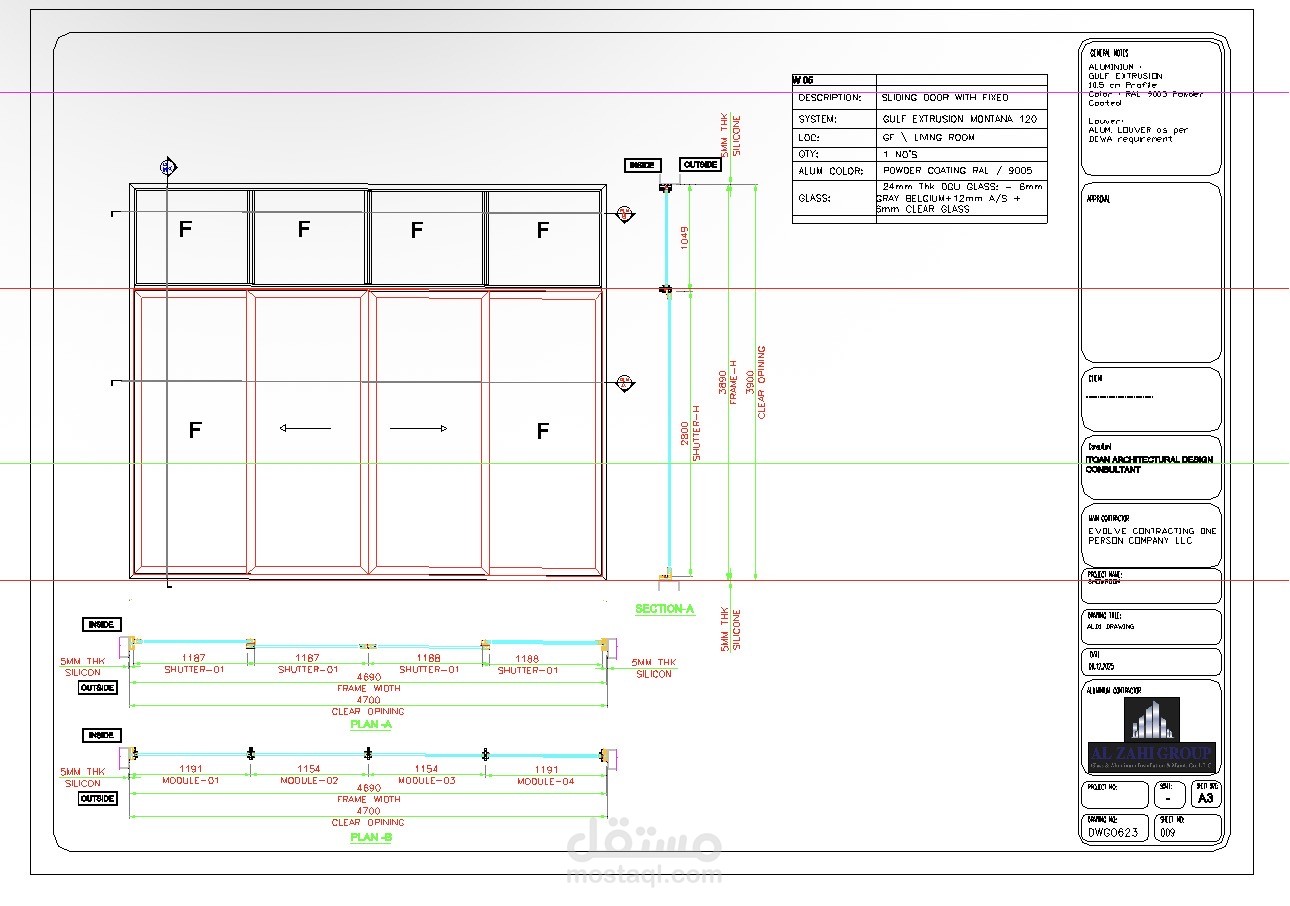

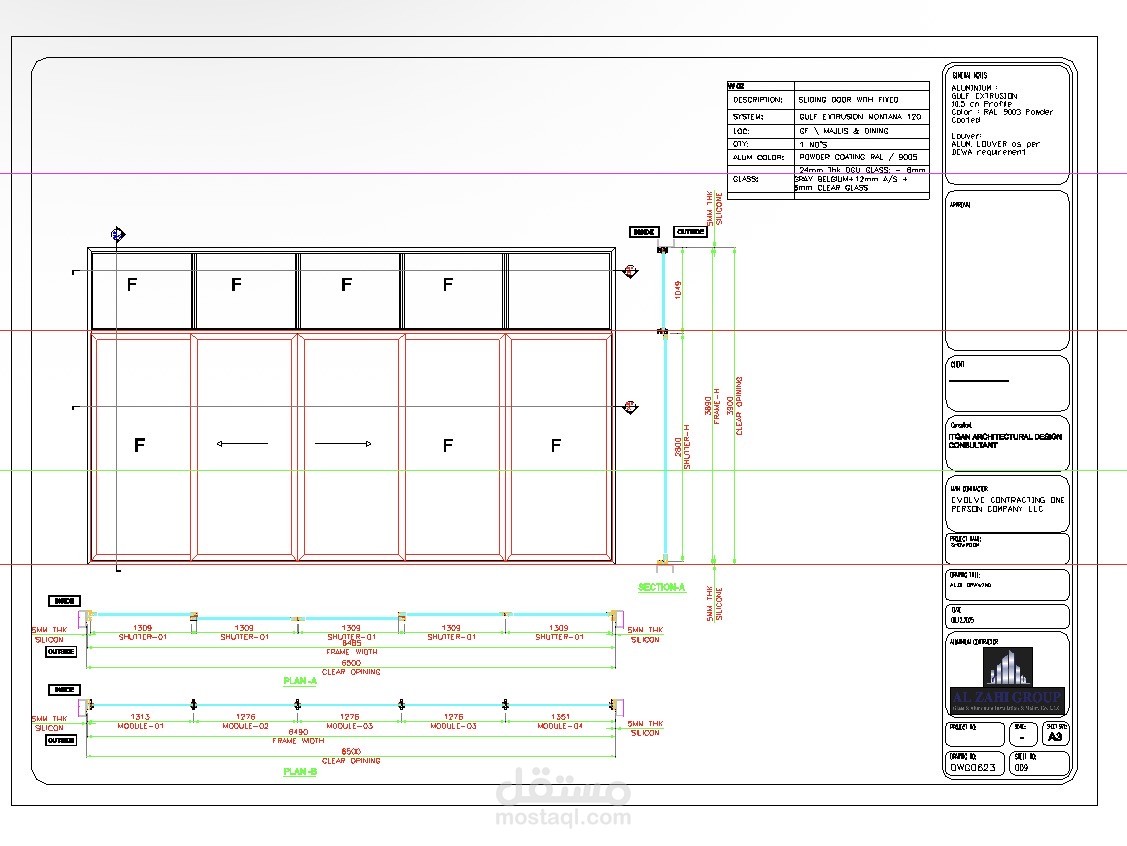

• Section details & fixing points

• Consultant-ready title block and project information

• Accurate alignment, silicone joints, and opening clearances

• Technical detailing suitable for fabrication & installation teams
