Serverless Image Processing with S3, Lambda, and DynamoDB
This project demonstrates a serverless architecture using AWS Lambda to process images uploaded to an S3 bucket. Upon upload, the image is resized, stored in a separate destination S3 bucket, and a log record is added to a DynamoDB table.

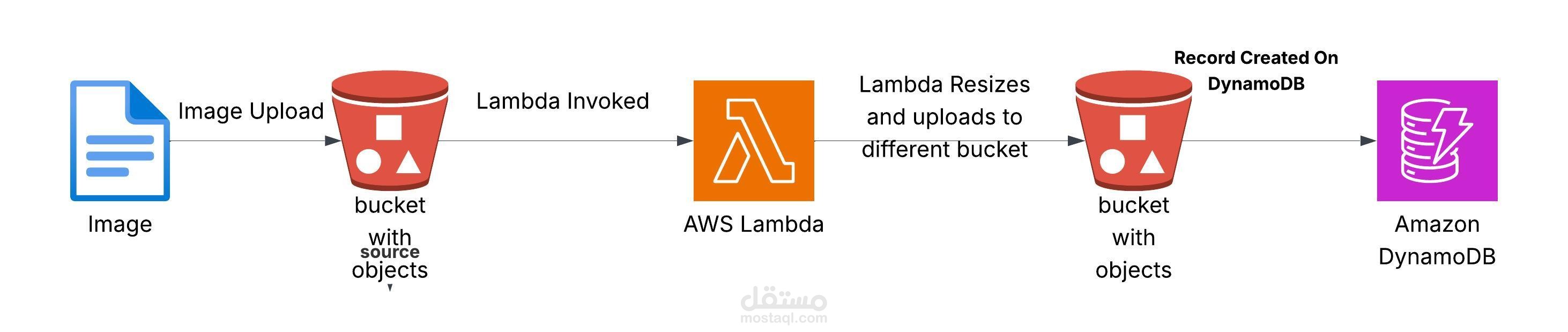

Architecture Diagram
Architecture
Demo
Watch the demo
️ Components
S3 Source Bucket: Where original images are uploaded.
Lambda Function: Triggered by S3 event, resizes the image, uploads to destination, and logs to DynamoDB.
S3 Destination Bucket: Stores resized images.
DynamoDB Table: Logs metadata for each processed image.
Prerequisites
AWS Account
IAM Role with permissions for:
s3:GetObject, s3:PutObject
dynamodb:PutItem
CloudWatch Logs (optional for debugging)
Setup Instructions (Manual)
1. Create Two S3 Buckets
Source Bucket: Example: manara-source-bucket-abdelrahman
Destination Bucket: Example: manara-dest-bucket-abdelrahman
2. Create DynamoDB Table
Table Name: ImageProcessingLog
Partition Key: ImageKey (String)
3. Create Lambda Function
Runtime: Python 3.11
Trigger: S3 ObjectCreated event from the source bucket
Attach an IAM role with access to S3 and DynamoDB
Use this updated code:
import boto3
import os
from PIL import Image
import io
from datetime import datetime
s3 = boto3.client('s3')
dynamodb = boto3.resource('dynamodb')
DEST_BUCKET = 'manara-dest-bucket-abdelrahman'
DDB_TABLE = 'ImageProcessingLog'
def get_image_format(key):
extension = key.lower().split('.')[-1]
return {
'jpg': 'JPEG',
'jpeg': 'JPEG',
'png': 'PNG',
'gif': 'GIF',
'bmp': 'BMP',
'tiff': 'TIFF',
'webp': 'WEBP'
}.get(extension, 'JPEG')
def lambda_handler(event, context):
table = dynamodb.Table(DDB_TABLE)
for record in event['Records']:
bucket = record['s3']['bucket']['name']
key = record['s3']['object']['key']
response = s3.get_object(Bucket=bucket, Key=key)
image_content = response['Body'].read()
image = Image.open(io.BytesIO(image_content))
image = image.resize((300, 300))
buffer = io.BytesIO()
image_format = get_image_format(key)
image.save(buffer, format=image_format)
buffer.seek(0)
s3.put_object(
Bucket=DEST_BUCKET,
Key=key,
Body=buffer,
ContentType=response['ContentType']
)
table.put_item(
Item={
'ImageKey': key,
'SourceBucket': bucket,
'DestinationBucket': DEST_BUCKET,
'ProcessedAt': datetime.utcnow().isoformat(),
'ImageSize': f"{image.width}x{image.height}",
'ImageFormat': image_format
}
)
return {
'statusCode': 200,
'body': 'Image processed and logged successfully.'
}
? Test the System
Upload a supported image to your source S3 bucket
Confirm it appears in the destination bucket (resized)
Check DynamoDB table for a new record
Notes
Supports image types: JPG, PNG, GIF, BMP, TIFF, WEBP
Make sure your Lambda has enough timeout and memory for larger images
Resize dimensions can be customized in the script
