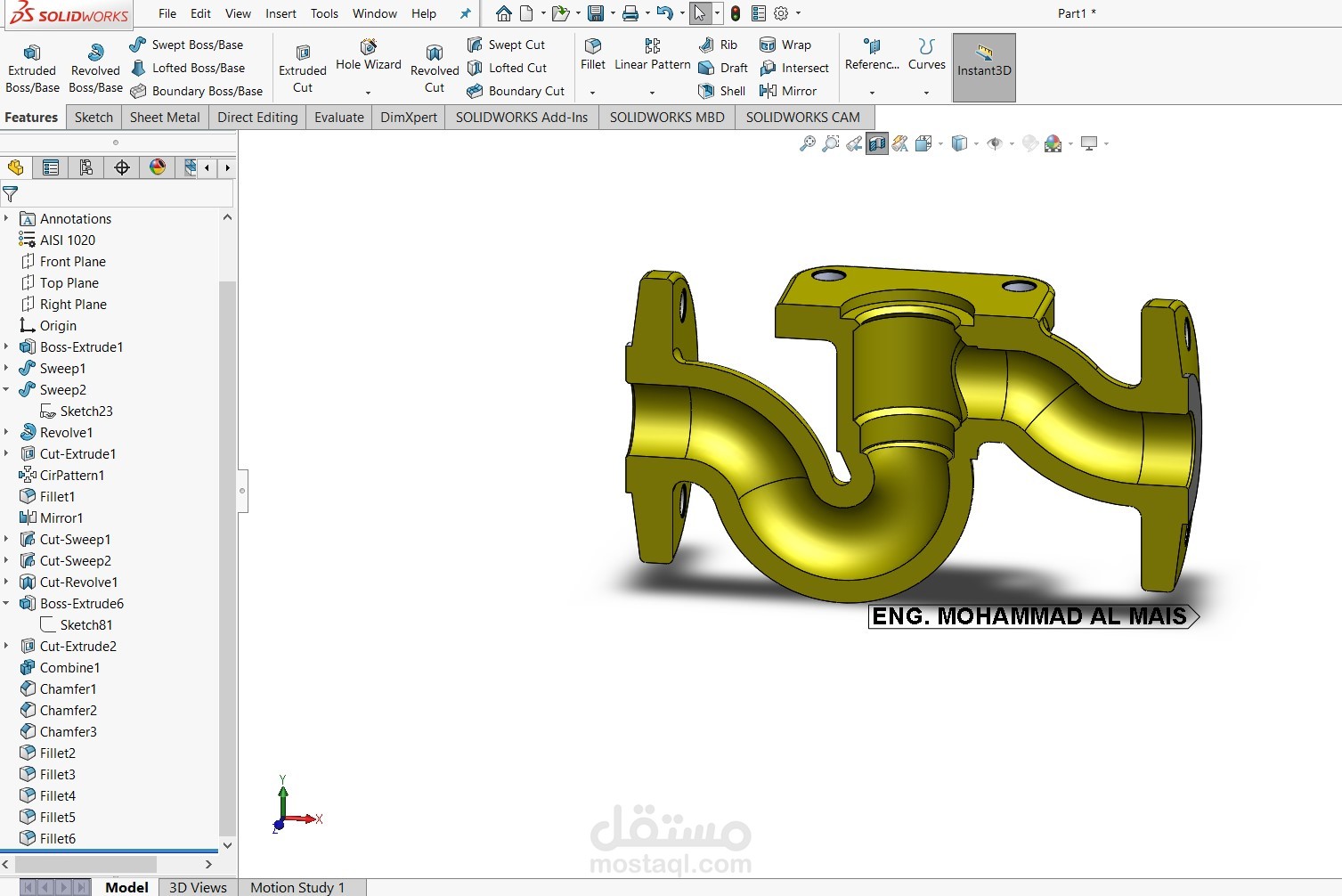

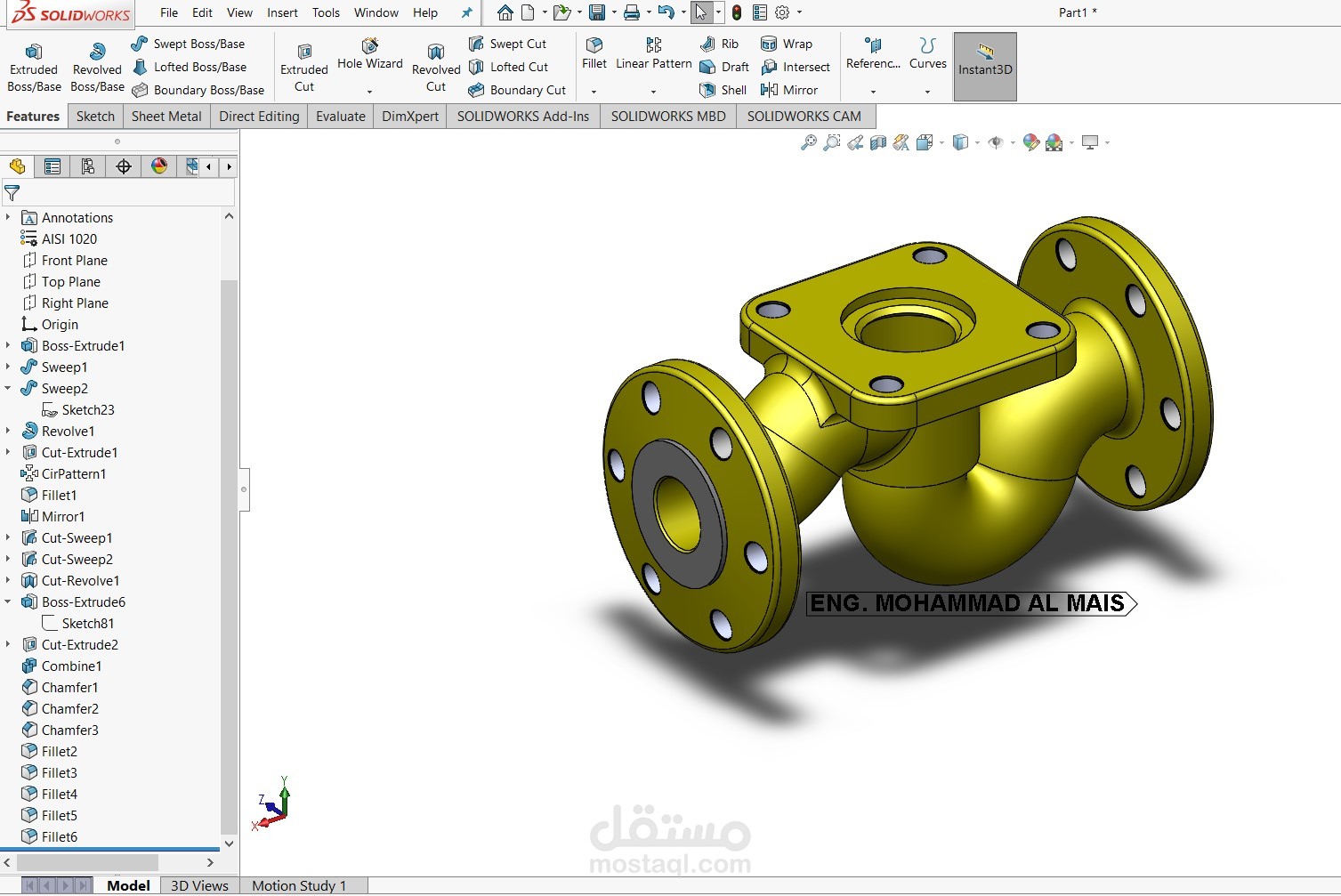

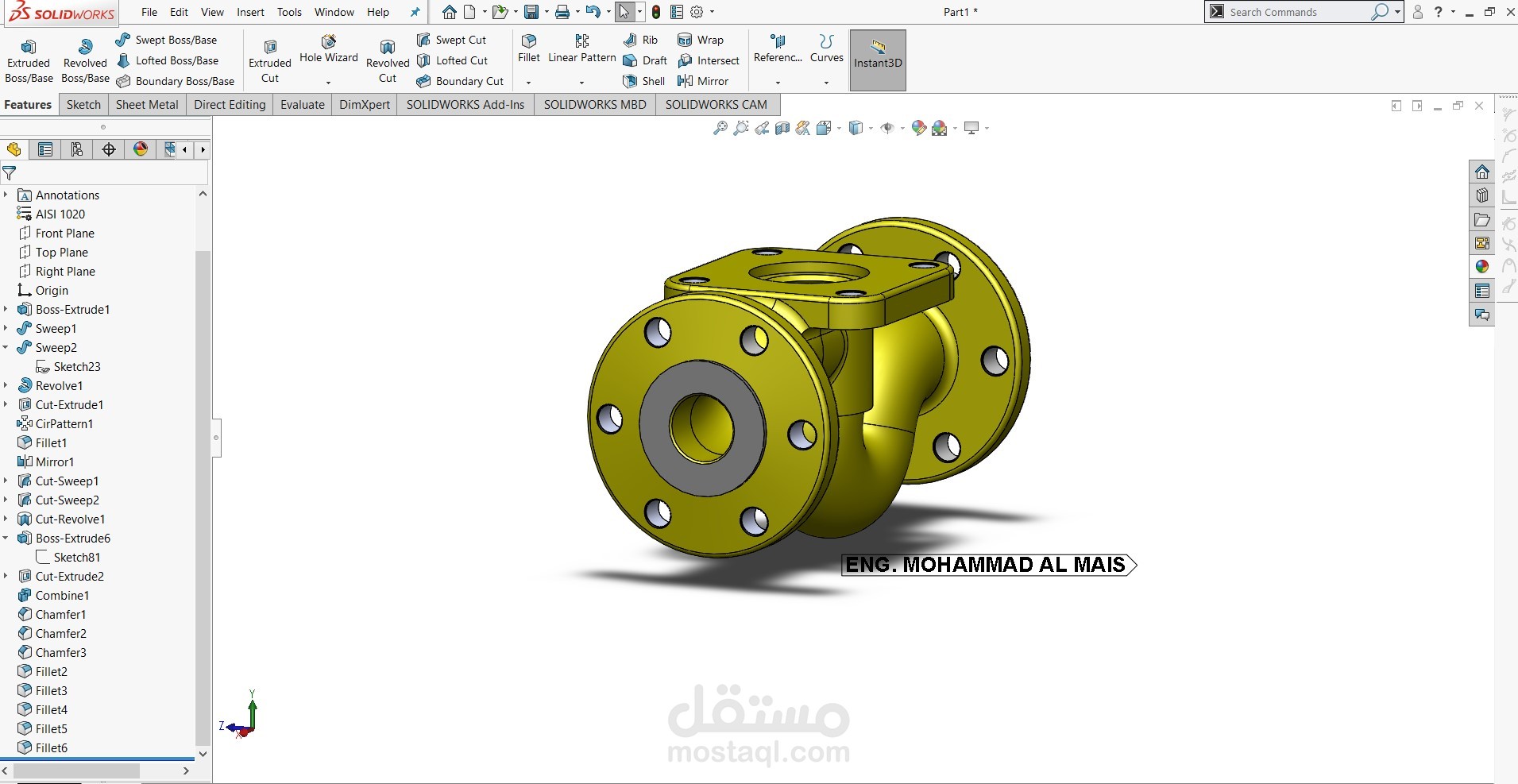

This SolidWorks model represents a piping valve body / Y-junction connector with flanged ends.

Technical Description:

Component Type: A flanged pipe fitting designed for fluid flow applications, suitable for integration into industrial piping systems.

Geometry:

Three flanged connections: Two cylindrical flanges aligned at an angle (inlet/outlet) and one perpendicular flange (branch connection).

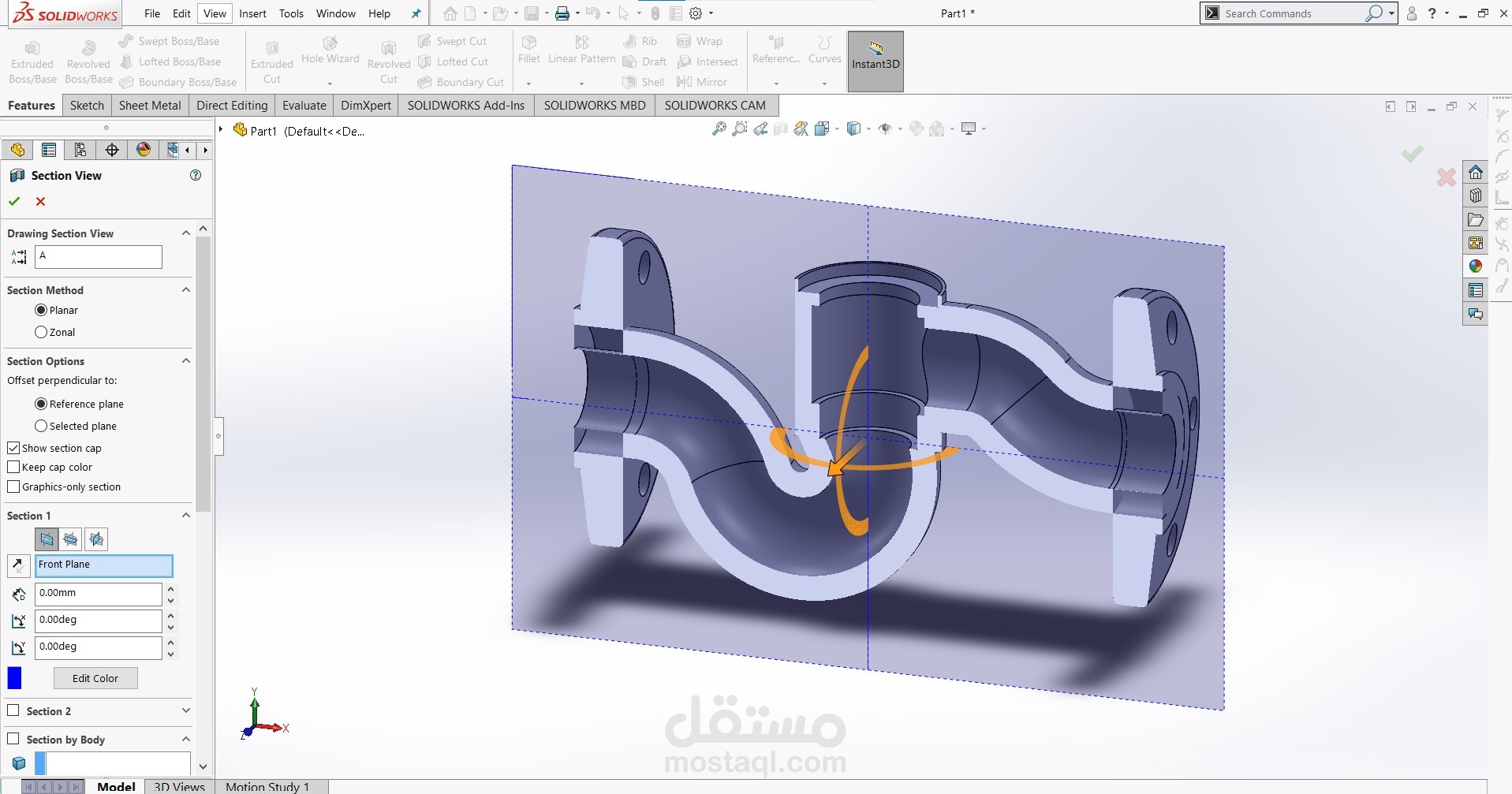

Internal Flow Path: Smooth curved channels created using sweep features to reduce turbulence and pressure loss.

Bolt Holes: Circular pattern of holes on each flange for secure bolted connections.

Features:

Swept Boss/Base & Cut-Sweep operations: Used to create the internal curved passages.

Revolved Features: For flange thickness and central bore.

Fillets & Chamfers: Applied to reduce stress concentration, enhance flow characteristics, and provide manufacturability.

Material: Assigned as AISI 1020 steel, commonly used in mechanical and fluid systems due to its balance of strength, machinability, and cost-effectiveness.

Functionality:

This design serves as a fluid flow distribution or directional control component. It allows connection of pipelines at different orientations while maintaining sealing and structural integrity. Such components are widely used in oil & gas, chemical processing, HVAC systems, and water distribution networks.
