Shop Drawing – Raft Foundation

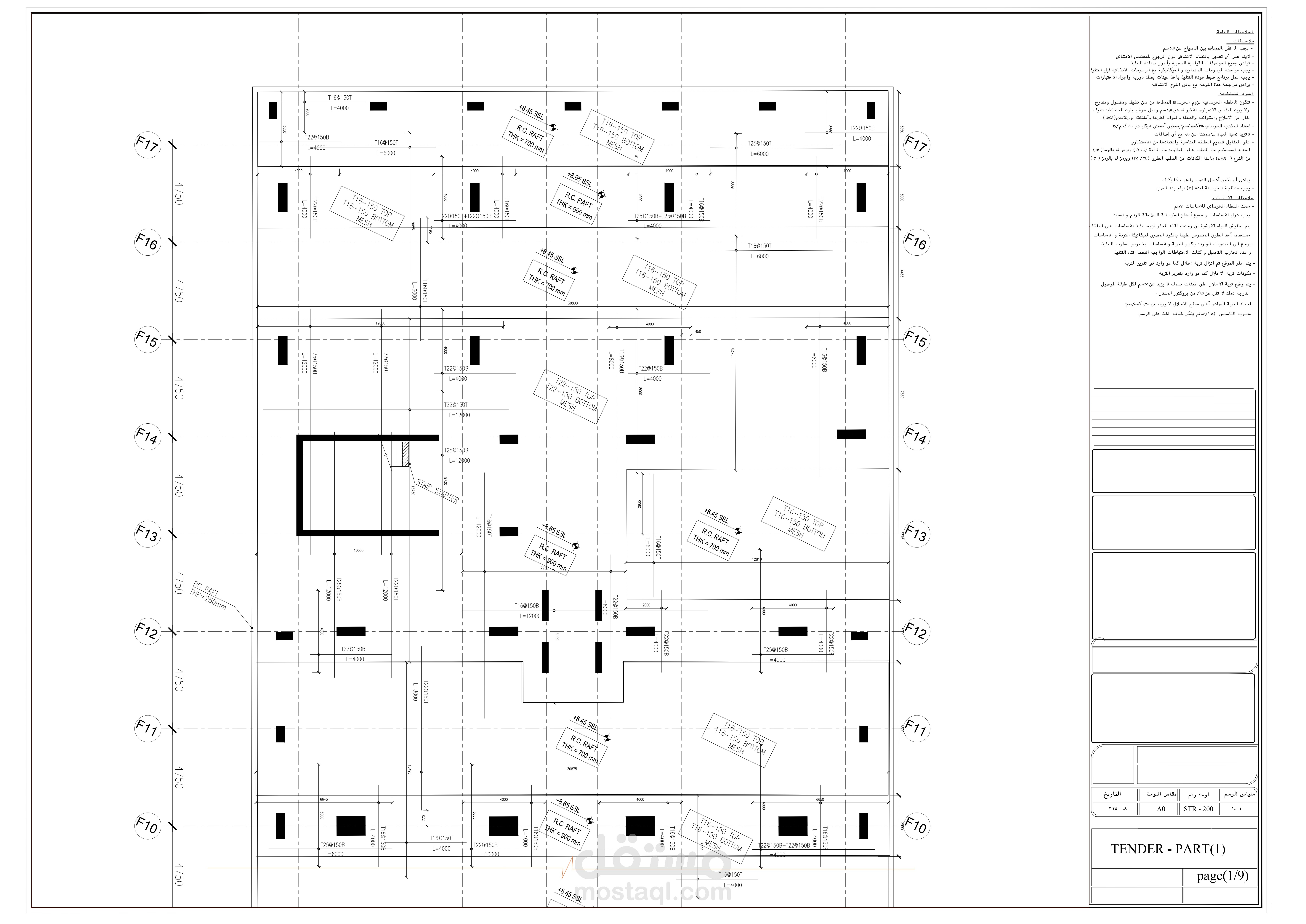

Shop drawings for the reinforced concrete raft foundation were prepared for a structural project. The drawings include all reinforcement details (top steel, bottom steel, and additional reinforcement), with accurate sections and dimensions according to the Egyptian Code of Practice.

The drawings were professionally produced using ASD and are ready for approval and site execution.
