VLANS & SUB-INTERFACE NETWORK DESIGN

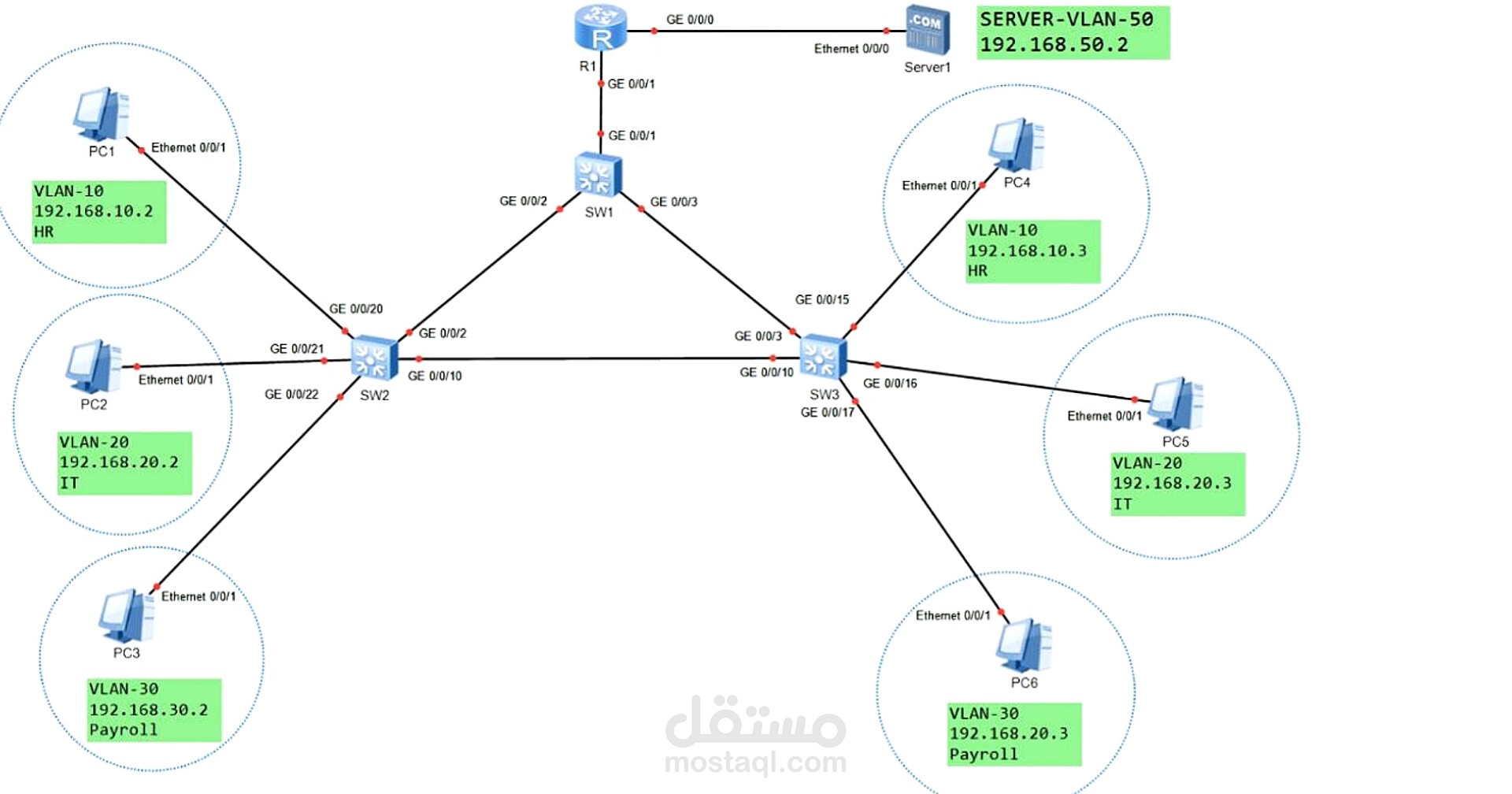

Designed and implemented a network topology connecting multiple switches, routers, and servers using Huawei eNSP

:The project includes

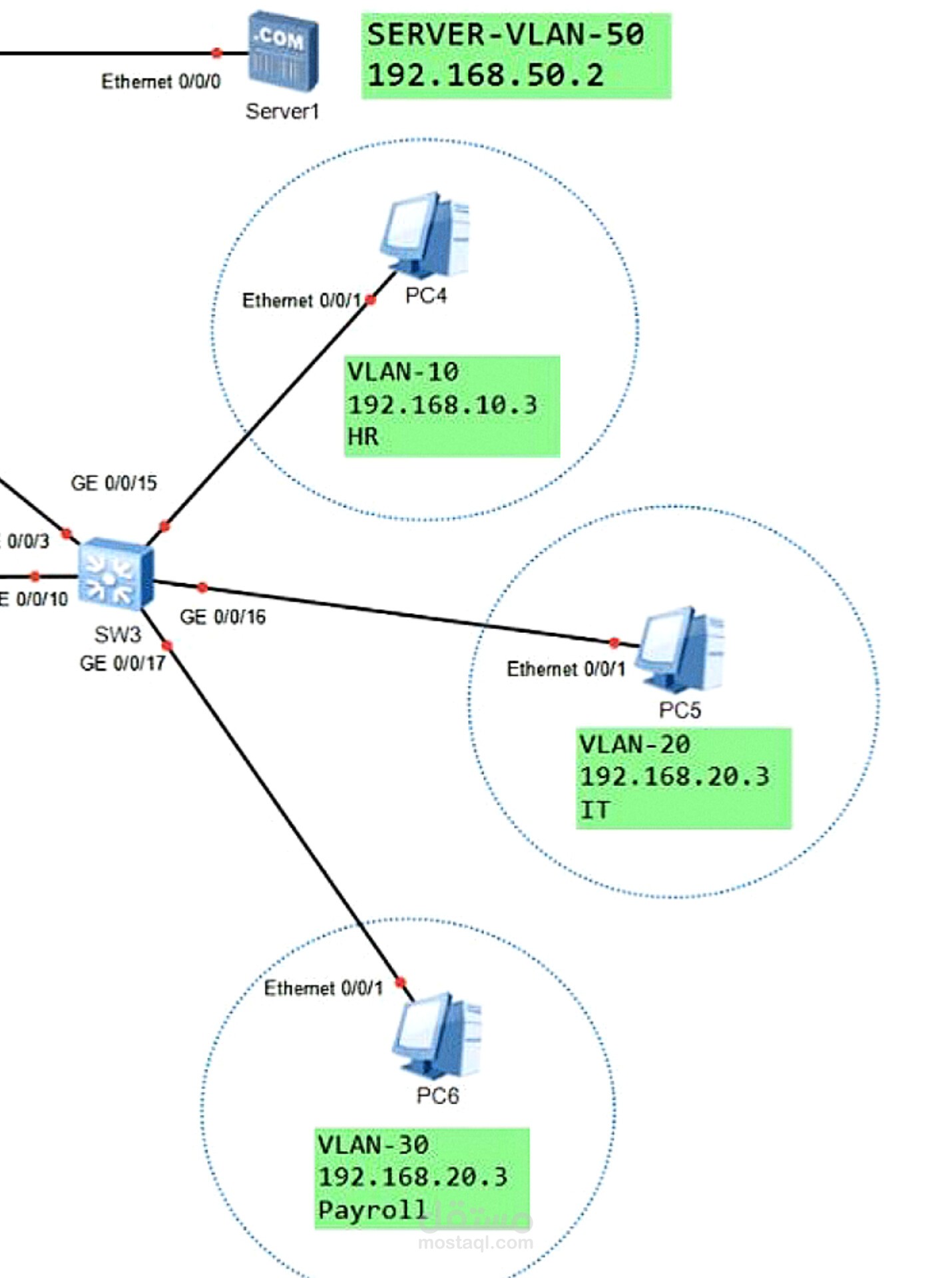

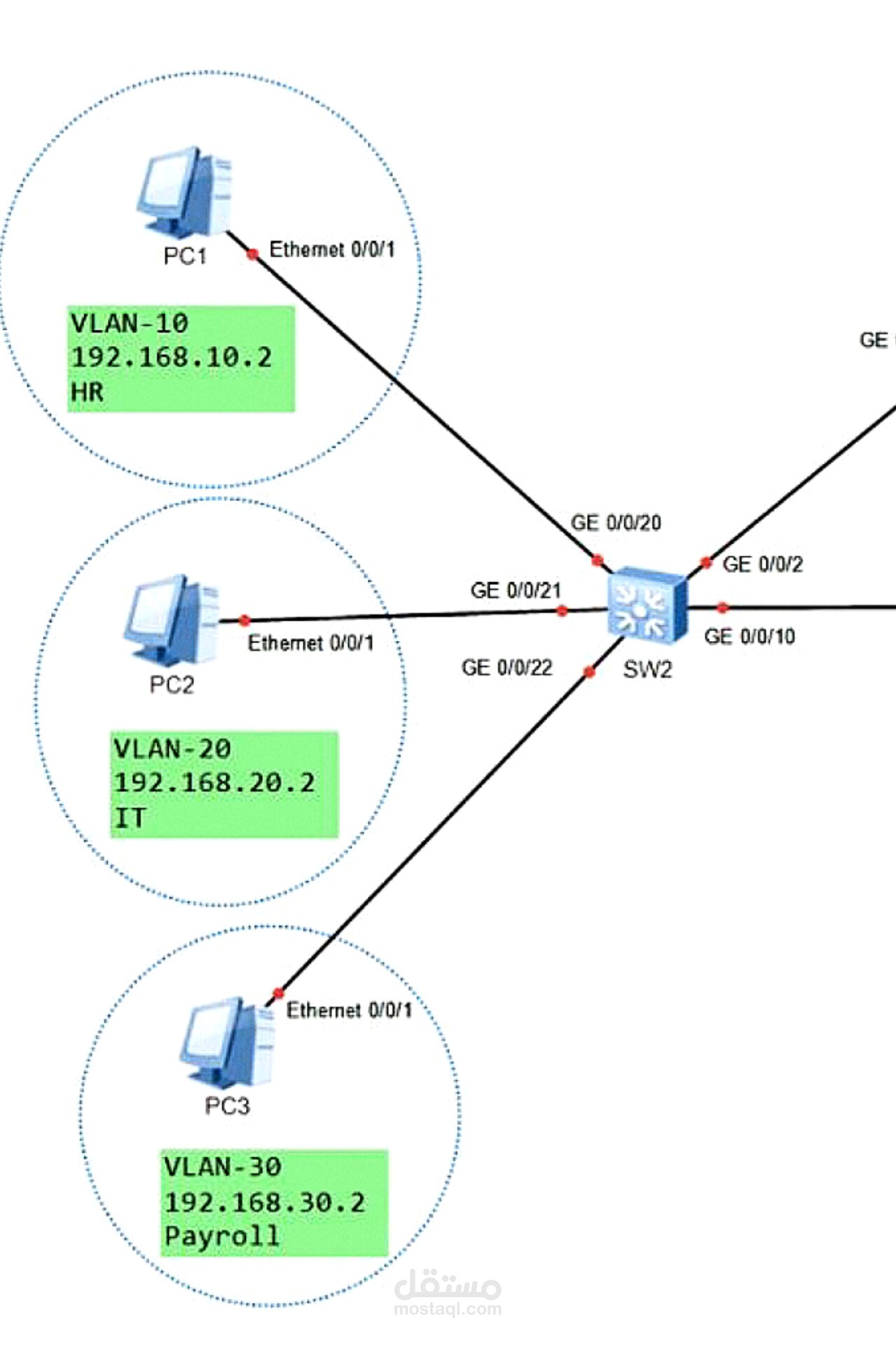

VLANS (VLAN-10 HR, VLAN-20 IT, VLAN-30 Payroll, VLAN-50 Server) for secure and efficient network segmentation

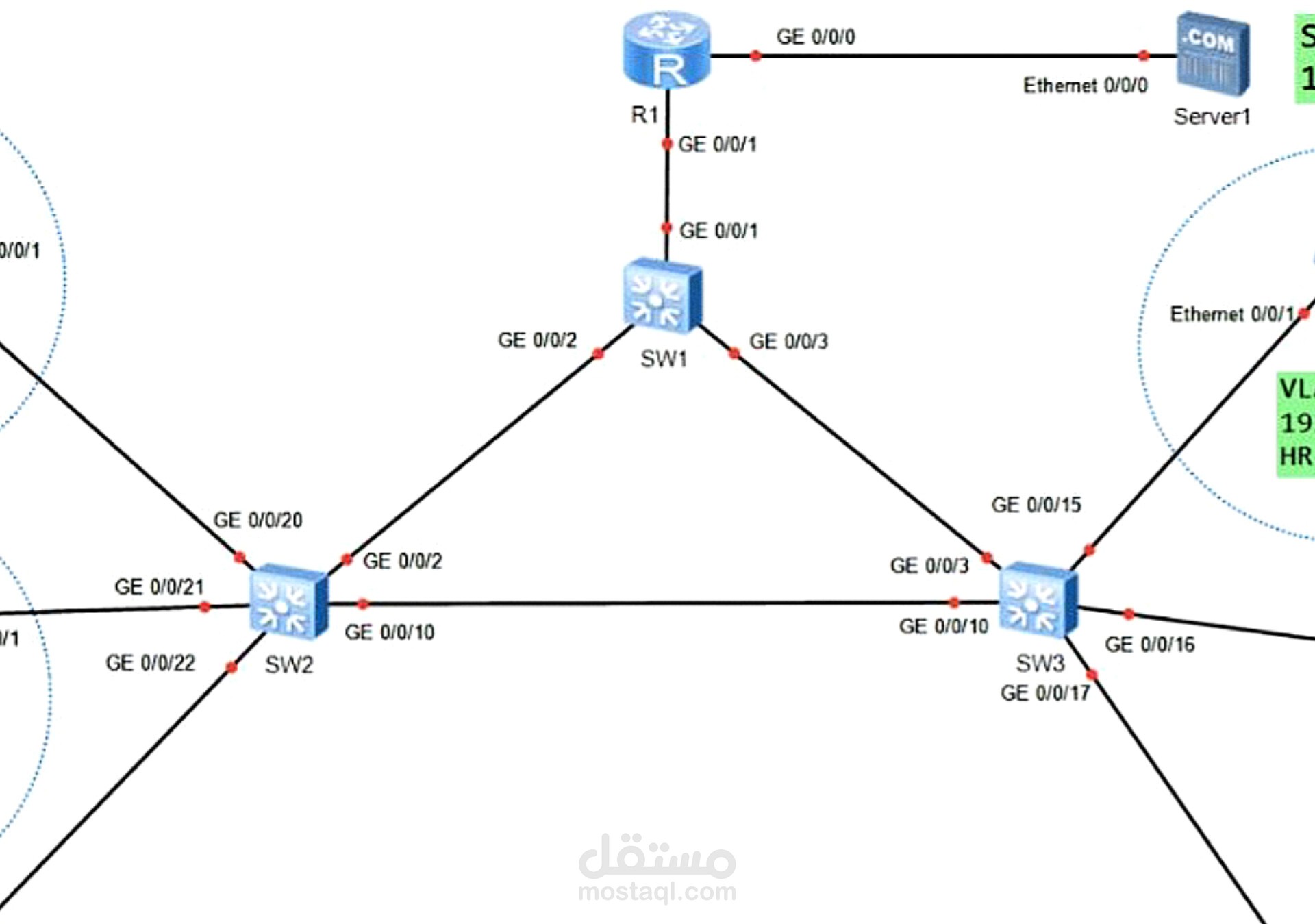

Inter-VLAN Routing to ensure seamless communication between subnets via router R1 using sub-interfaces

Gigabit Ethernet connections for high-speed interconnectivity between switches and router R1

Ethernet links to PCs and a server for end-user and service connectivity

IP addressing for structured network configuration
