Survey Points Manager - AutoCAD Plugin

Survey Point Manager is a powerful AutoCAD plugin tailored for surveyors, civil engineers, and CAD professionals. It provides an all-in-one solution for managing, converting, and exporting survey points—without ever leaving your drawing environment.

Key Features

Multi‑Format Support

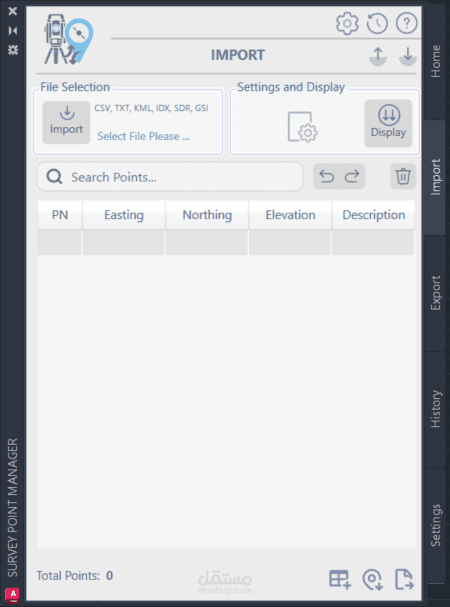

Import and export survey points in CSV, SDR, GSI (8 & 16), TXT, KML, and IDX formats. Before importing or exporting, you can customize format options—like column order or whether to include descriptions—to match your workflow or field equipment.

Point List Management

Imported or selected points are displayed in a clean, structured point list. Features include search, delete all, undo/redo, and a dynamic point counter for tracking active entries.

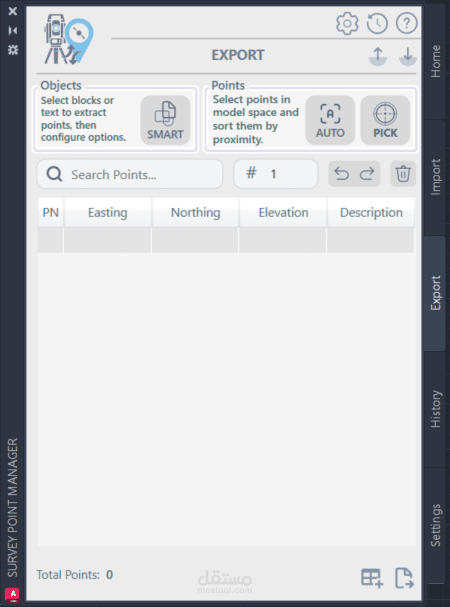

Three Export Methods

Choose the method that fits your needs for exporting and numbering points:

Pick Mode: Select points directly from the drawing manually. Click again to stop the session.

Auto Mode: Define a base point, then select geometry; points are auto‑numbered and inserted into both the drawing and the point list.

Smart Mode: Select a base point, pick multiple blocks or text entities, review them in a results dialog, and generate points from them intelligently.

Smart Table Insertion

Visually summarize your points with smart AutoCAD tables. Customize table style, max rows, optional title, and column visibility to fit your project's standards.

Settings Configuration Panel

Centralized control for all customization options:

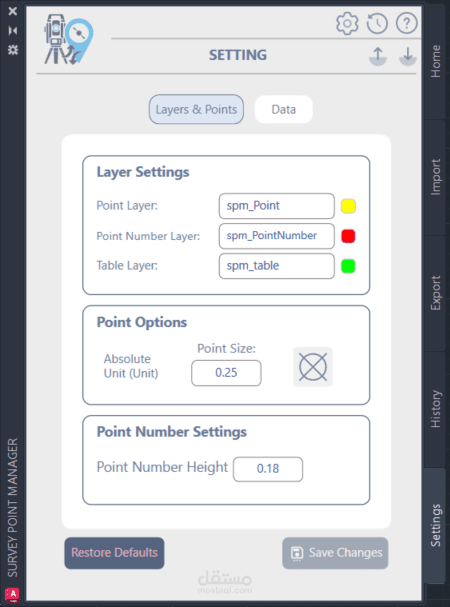

Point Options: Set layers, marker style, size, and text height.

Numbering Settings: Configure prefix, font size, and placement layers.

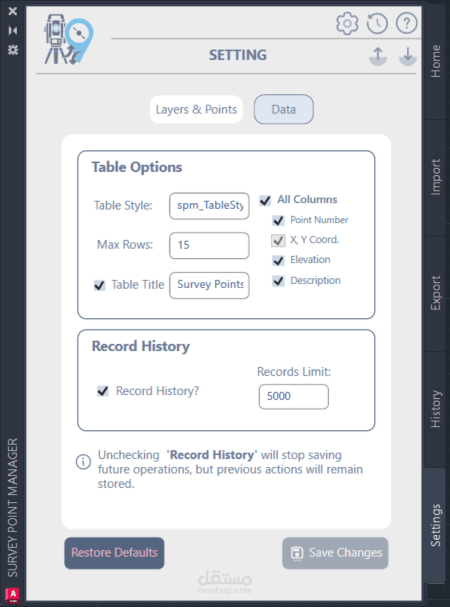

Table Settings: Choose table styles, define max rows, enable/disable titles, and customize visible columns.

History Options: Enable history tracking and control the maximum number of records.

Format Conversion Utility

Seamlessly convert between supported file formats inside AutoCAD (e.g., GSI → CSV, TXT → KML). Ideal for transforming data between field software and design environments.

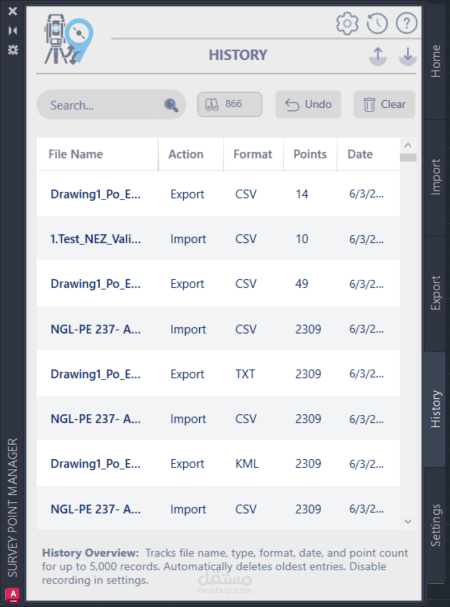

History Tracking

Every import and export operation is recorded. Use the History Manager to review past actions, delete them, or restore cleared records with one click.
