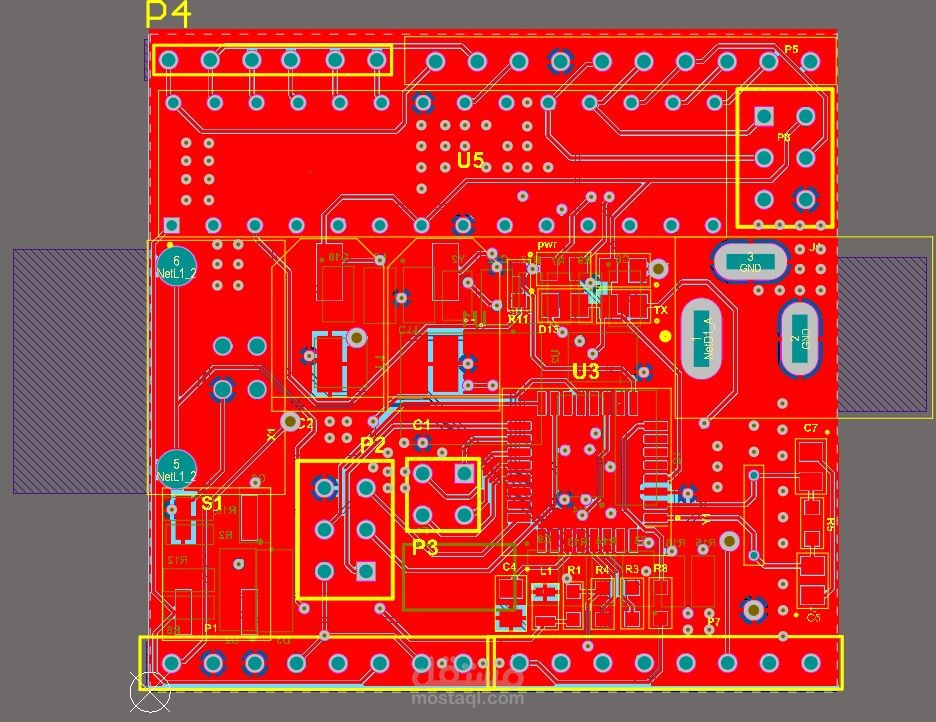

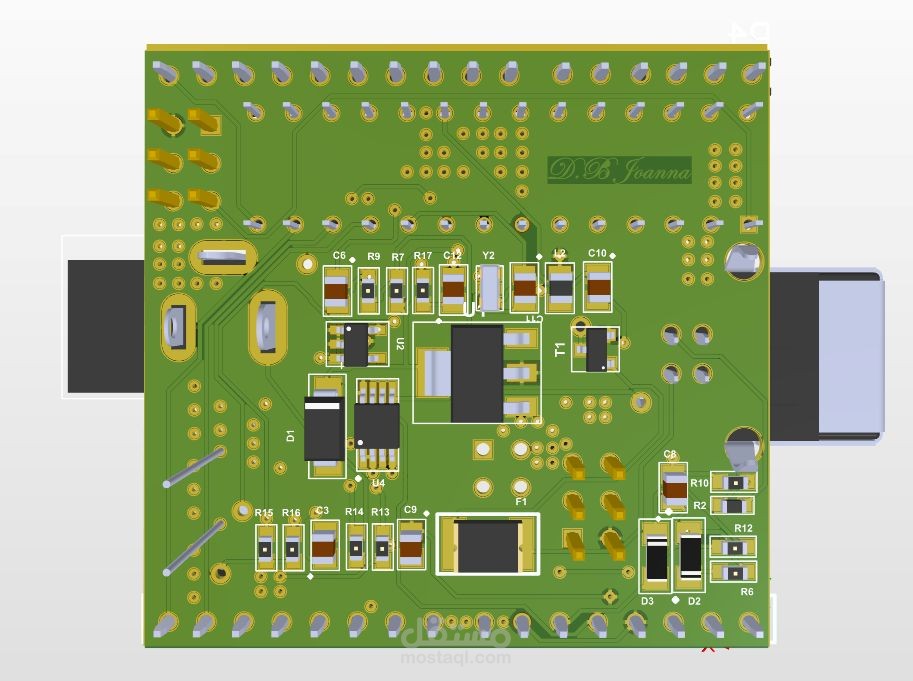

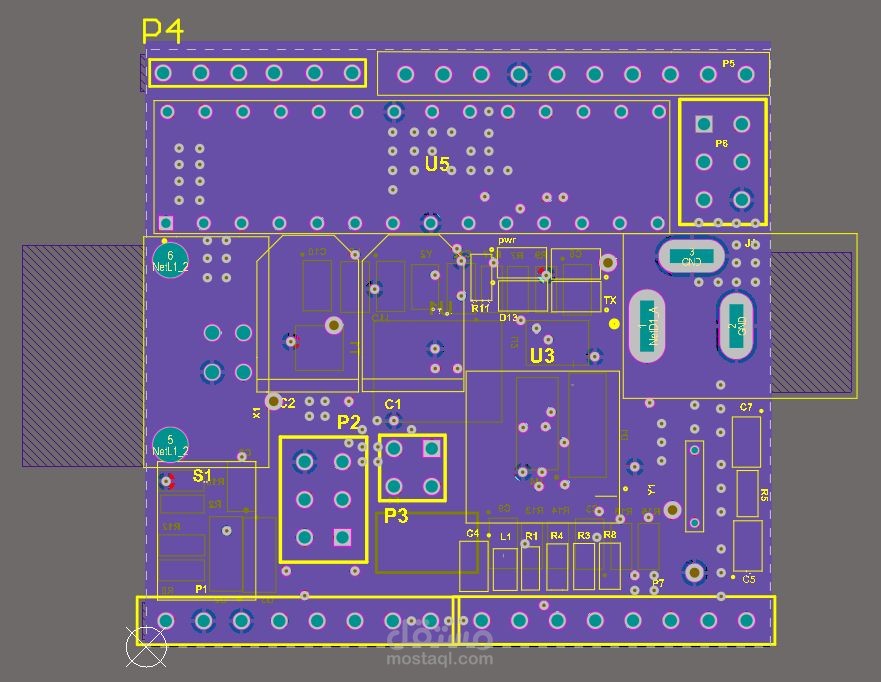

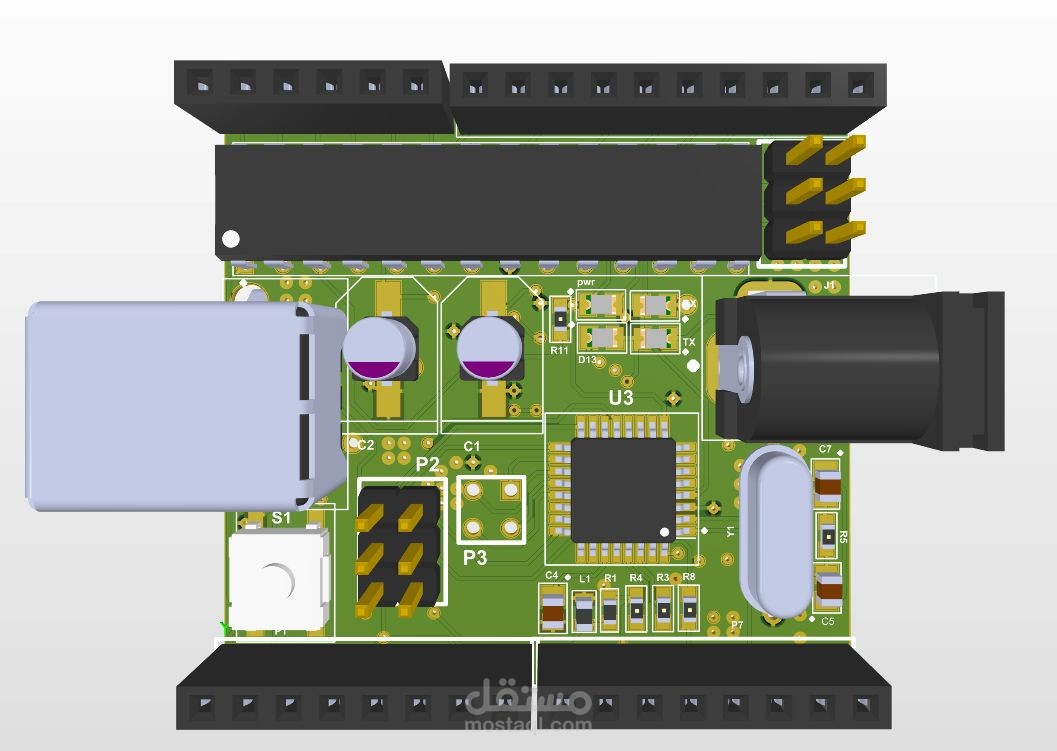

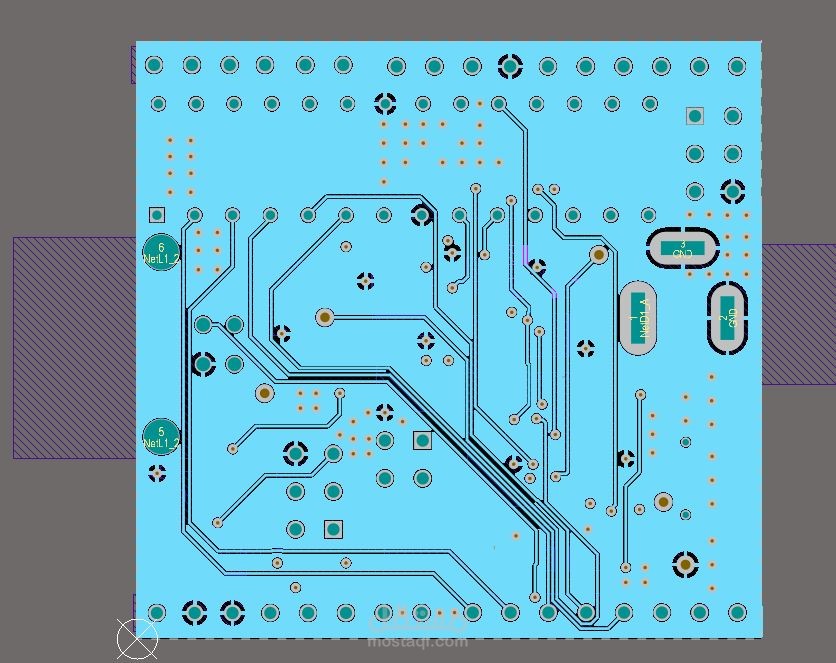

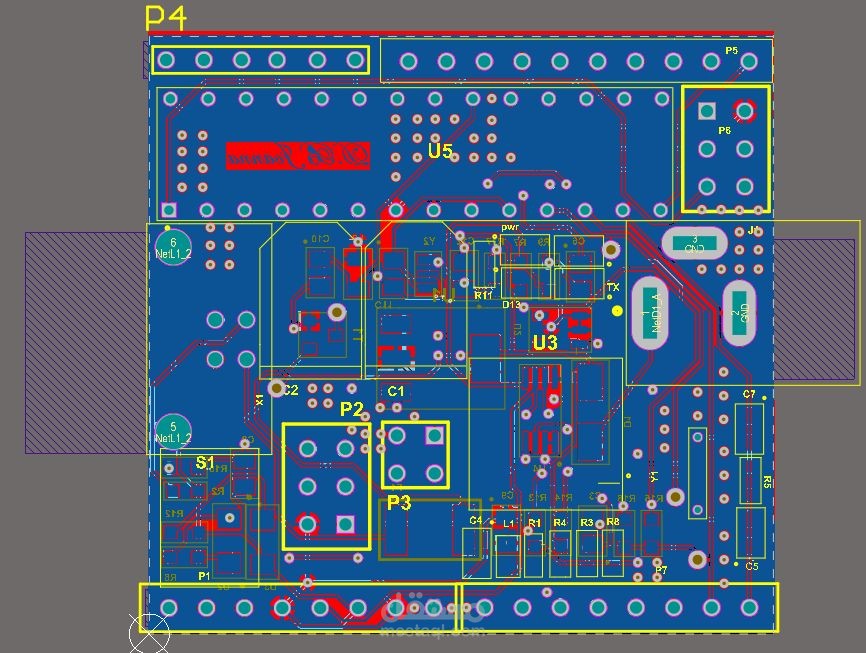

PCB design for the Arduino Uno - but at an incredible size!

تفاصيل العمل

'I've challenged myself to create one of the smallest versions of the Arduino Uno in the world, measuring just 4cm x 4cm.

but this is not all! I'm proud to share that it is designed using Altium® with four layers and pays attention to signal integrity principles, ensuring outstanding performance and stability. !
