Enterprise Network on GNS3

Project Overview:

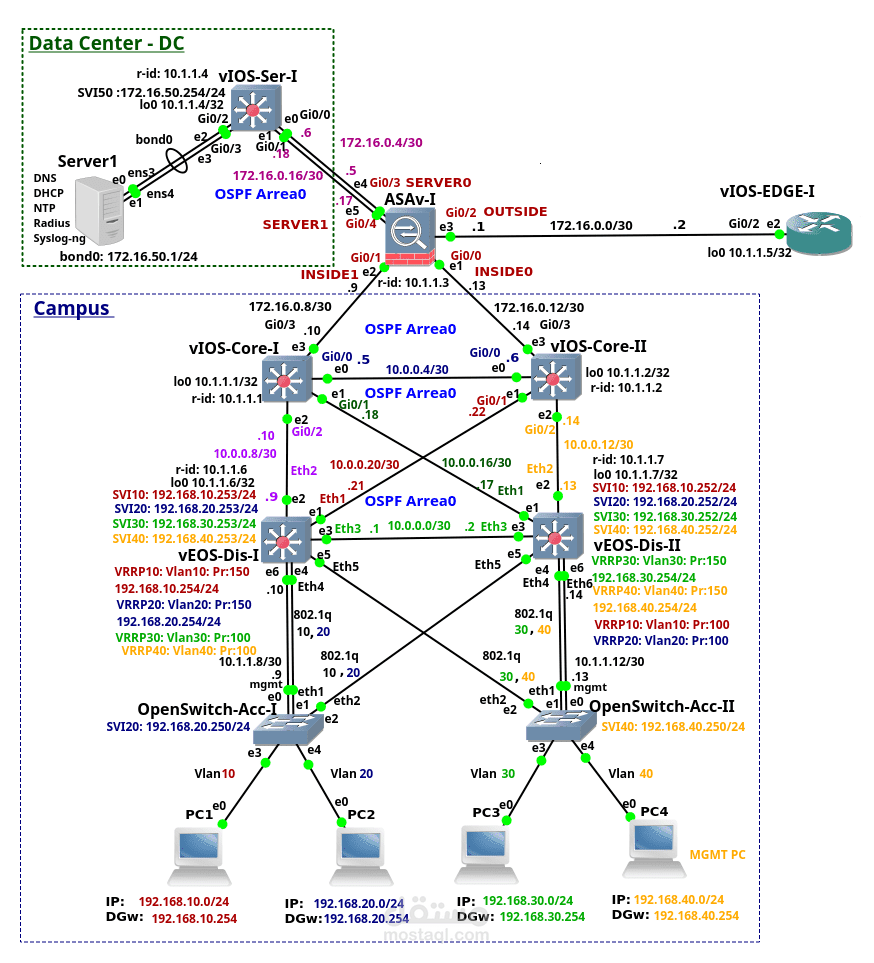

This project represents a comprehensive enterprise network design, structured into three main environments: Data Center (DC), Campus Network, and a DMZ (Demilitarized Zone). The design incorporates dynamic routing protocols (OSPF, eBGP), VLAN segmentation, high availability, security through firewalls, and redundant internet connectivity via two ISPs.

Key Components:

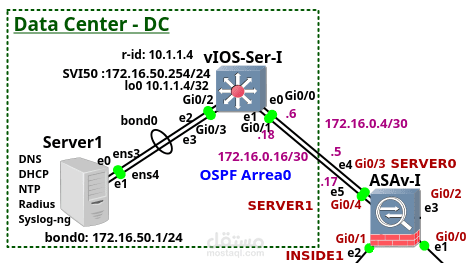

1. Data Center (DC):

Hosts a central server (Server1) providing

DNS, DHCP, NTP, Radius, Syslog-ng services.

Server is connected to vIOS-Ser-I using the internal subnet 172.16.50.0/24.

vIOS-Ser-I is connected to the firewall ASAv-I through interface Gi0/3.

2. Campus Network:

A hierarchical design including three layers:

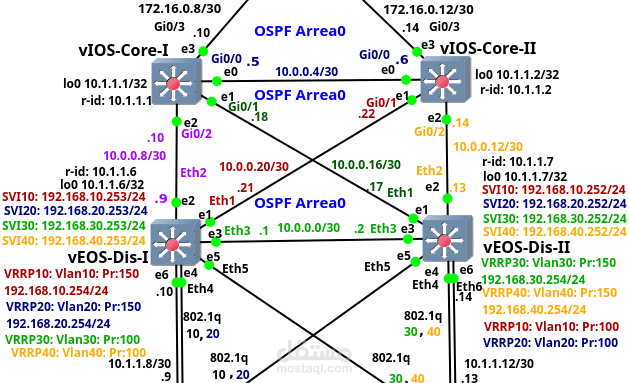

Core Layer:

vIOS-Core-I and vIOS-Core-II are connected via OSPF Area 0.

Distribution Layer:

vEOS-Dis-I acts as the distribution switch and uses VRRP to provide high availability default gateways for VLANs.

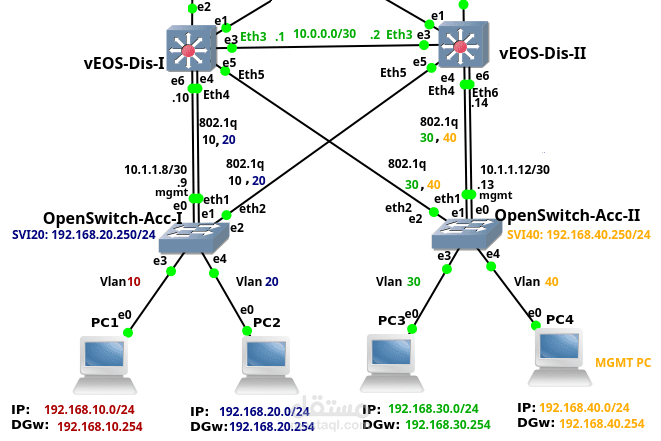

Access Layer:

OpenSwitch-Acc-I and OpenSwitch-Acc-II connect end devices.

Hosts are segmented into different VLANs:

VLAN10: 192.168.10.0/24

VLAN20: 192.168.20.0/24

VLAN30: 192.168.30.0/24

VLAN40: 192.168.40.0/24

Each VLAN has its own IP range and virtual gateway using VRRP.

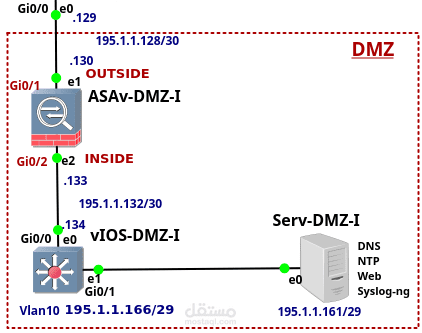

3. DMZ (Demilitarized Zone):

Contains a firewall (ASAv-DMZ-I) connected to the internet and to the internal DMZ router (vIOS-DMZ-I).

A public-facing server (Serv-DMZ-I) is located here, offering:

DNS, NTP, Web, and Syslog-ng services.

DMZ IP range is 195.1.1.160/29.

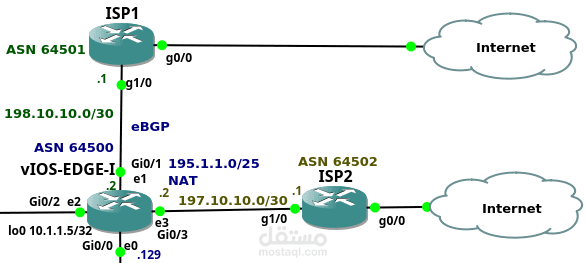

Internet Connectivity:

Handled by vIOS-EDGE-I, which connects to two ISPs:

ISP1 via 198.10.10.0/30 using eBGP (ASN 64501).

ISP2 via 197.10.10.0/30 using eBGP (ASN 64502).

Public IP block 195.1.1.0/25 is used for NAT.

Security Design:

Two firewalls (ASAv-I and ASAv-DMZ-I) are deployed:

One separates the internal network from the internet.

The other secures the DMZ zone.

The DMZ acts as a buffer zone to securely expose public services.

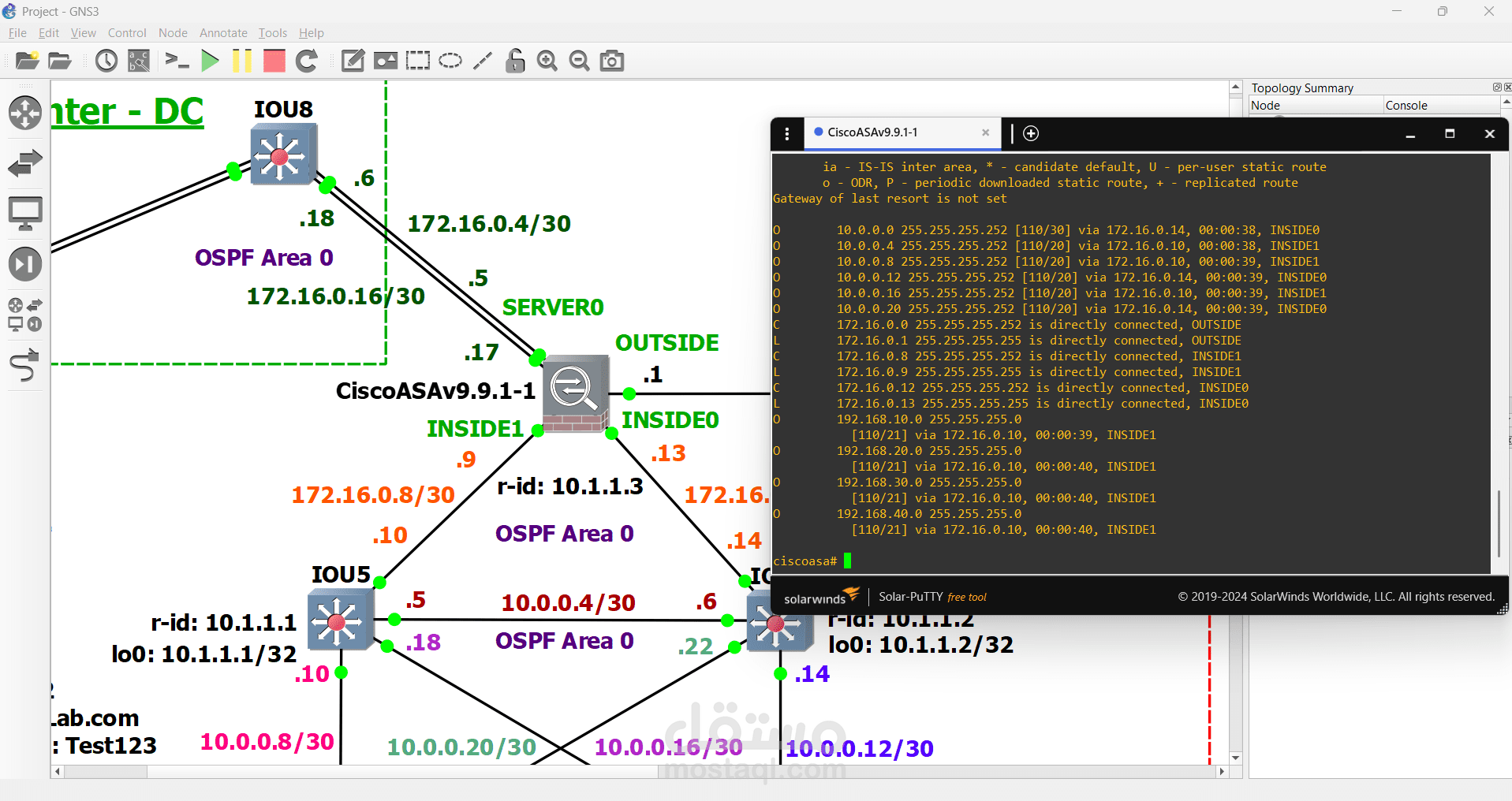

Protocols Used:

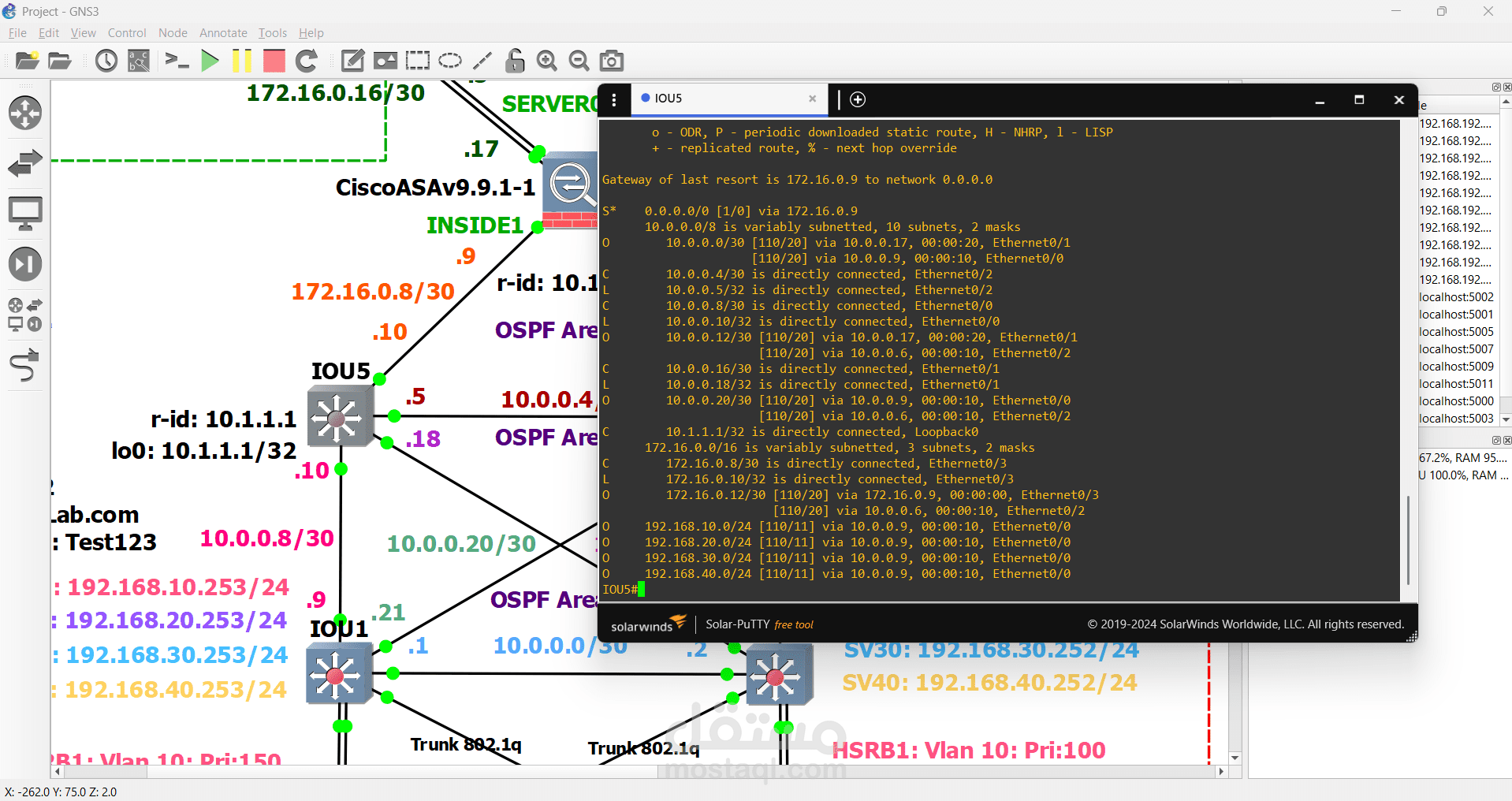

OSPF Area 0: For dynamic internal routing.

eBGP: For external internet connectivity via ISPs.

VRRP: For high availability default gateways per VLAN.

802.1Q: Used for VLAN trunking between switches and routers.

Network Features:

Modular, scalable hierarchical design.

Redundant paths and high availability using VRRP.

Segmentation using VLANs.

Secure separation of internal, external, and public zones.

Support for dynamic routing and internet failover.
