Function Generator

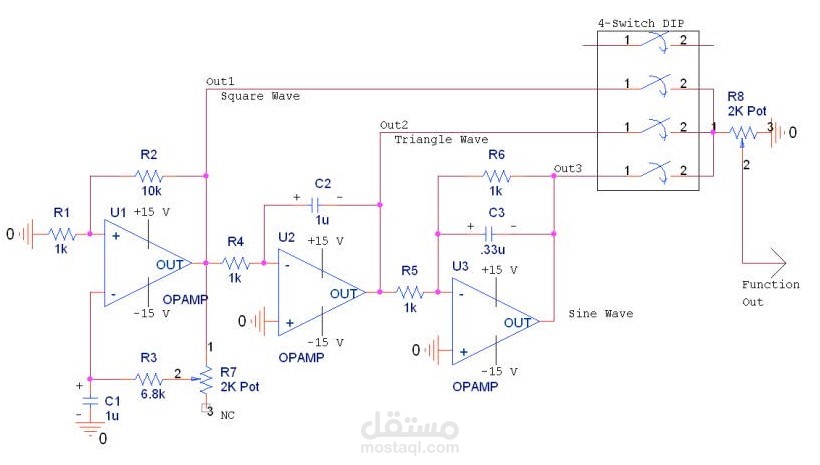

Using either three 741 op-amp chips wire the three-stage op-amp circuit .

1.The first op-amp stage generates a square wave.

2.The second op-amp stage integrates the square wave to produce a triangle wave.

3.The final op-amp stage is a low-pass filter, removing the higher frequency components of the triangle wave so that it closely resembles a sine wave with the same fundamental frequency.
