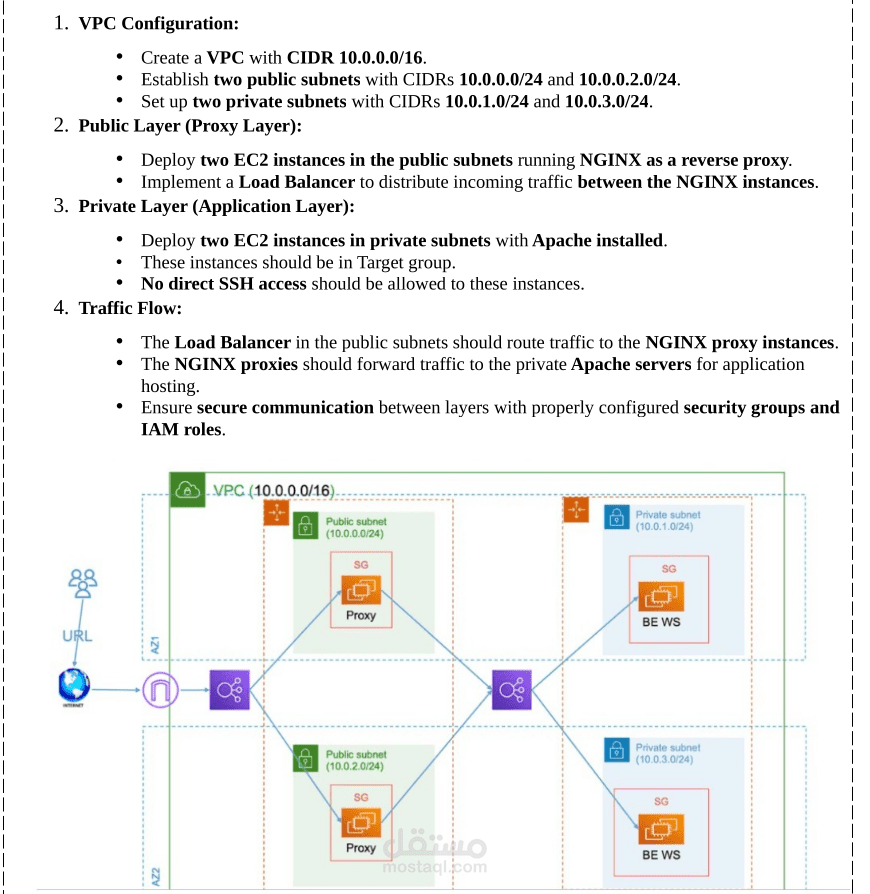

Design and deploy a robust AWS VPC infrastructure that ensures secure and efficient traffic distribution between application components while maintaining high availability and scalability.

Requirements:

1. VPC Configuration:

• Create a VPC with CIDR 10.0.0.0/16.

• Establish two public subnets with CIDRs 10.0.0.0/24 and 10.0.0.2.0/24.

• Set up two private subnets with CIDRs 10.0.1.0/24 and 10.0.3.0/24.

2. Public Layer (Proxy Layer):

• Deploy two EC2 instances in the public subnets running NGINX as a reverse proxy.

• Implement a Load Balancer to distribute incoming traffic between the NGINX instances.

3. Private Layer (Application Layer):

• Deploy two EC2 instances in private subnets with Apache installed.

• These instances should be in Target group.

• No direct SSH access should be allowed to these instances.

4. Traffic Flow:

• The Load Balancer in the public subnets should route traffic to the NGINX proxy instances.

• The NGINX proxies should forward traffic to the private Apache servers for application

hosting.

• Ensure secure communication between layers with properly configured security groups and

IAM role
