toggle clamp

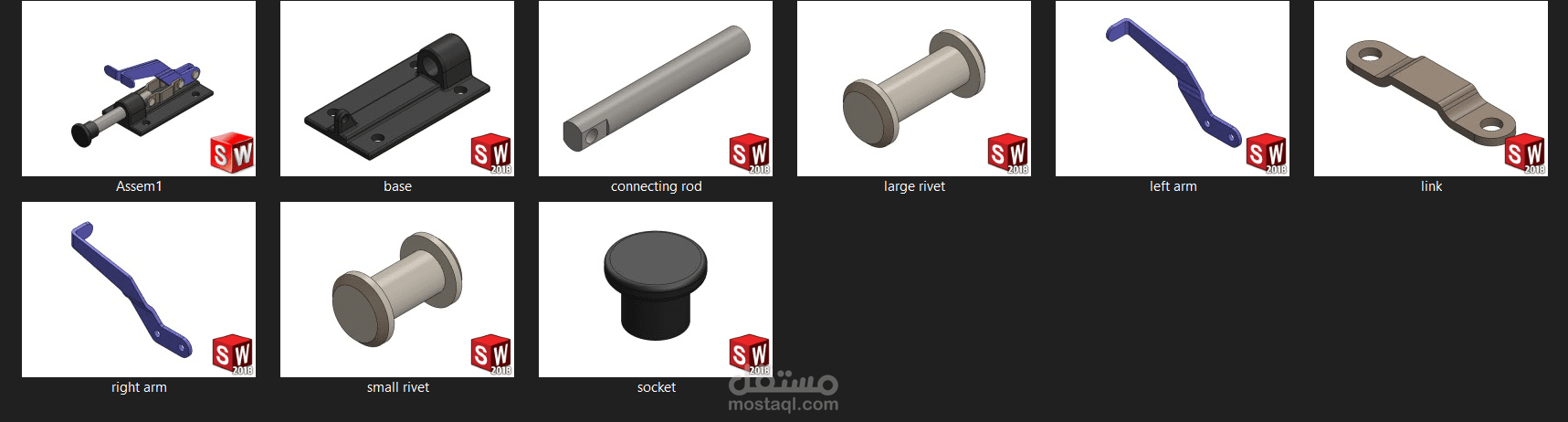

3D CAD model of a toggle clamp assembly, typically used for holding workpieces securely in place during machining or other operations. The model consists of the following key components:

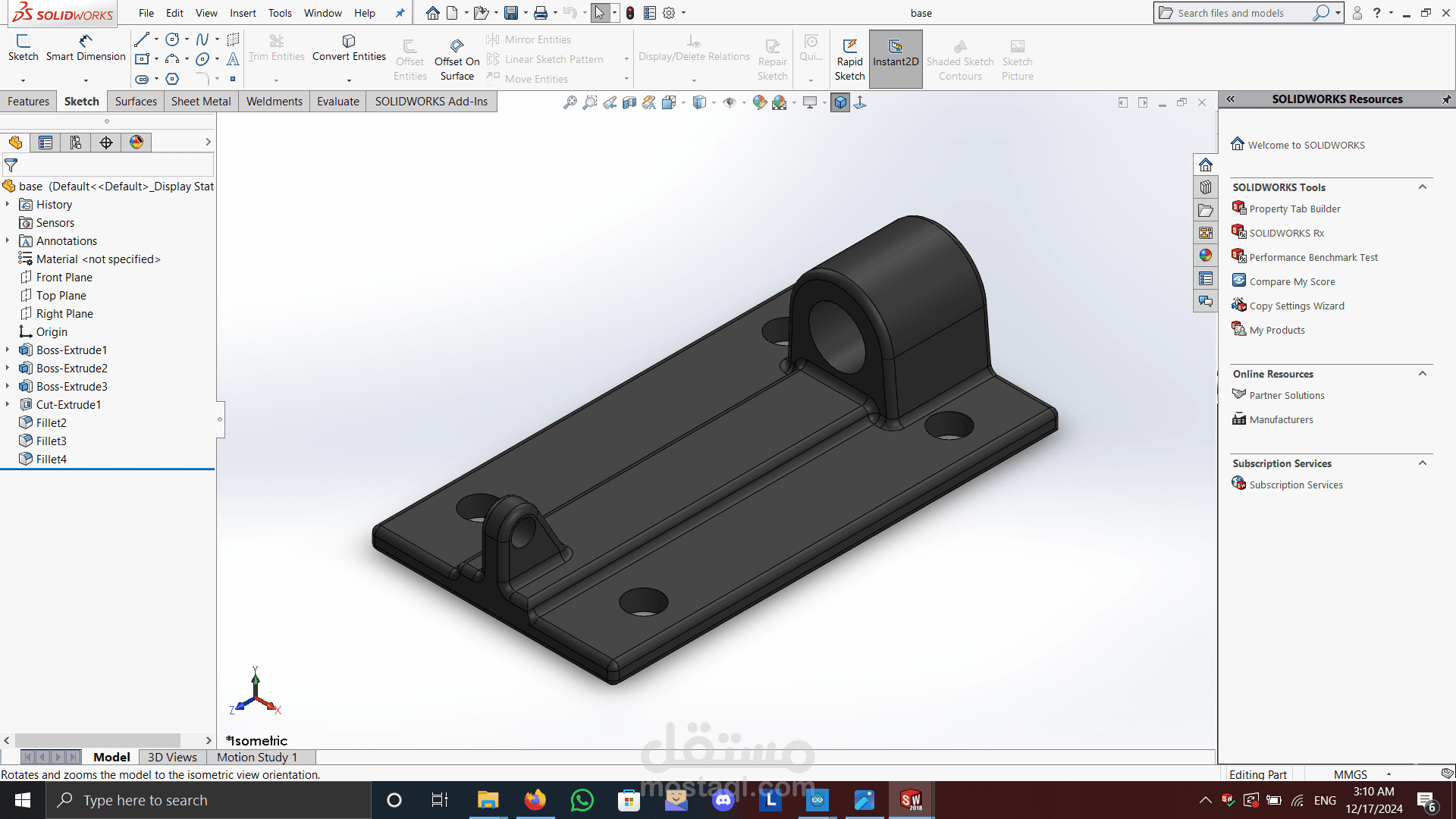

Base Plate (Black):

The flat rectangular plate serves as the mounting point for the clamp.

Two holes are visible for fastening the clamp assembly onto a surface.

Push-Pull Toggle Mechanism (Blue and Gray):

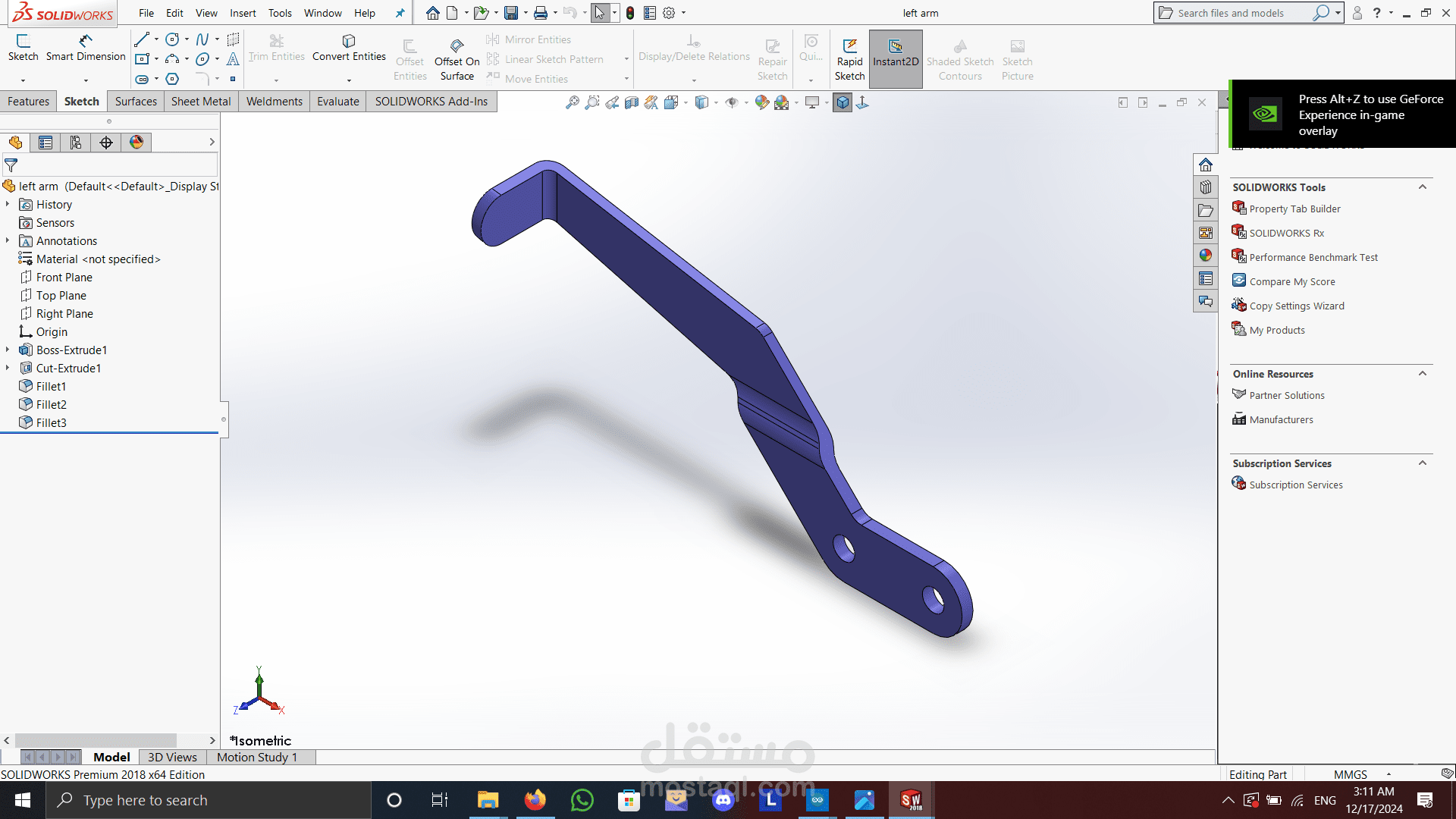

The lever handle (blue) is used to operate the clamp.

Multiple linkages and pivot points allow the handle's motion to control the horizontal movement of the clamping arm (gray cylinder).

Clamp Arm (Gray Cylinder):

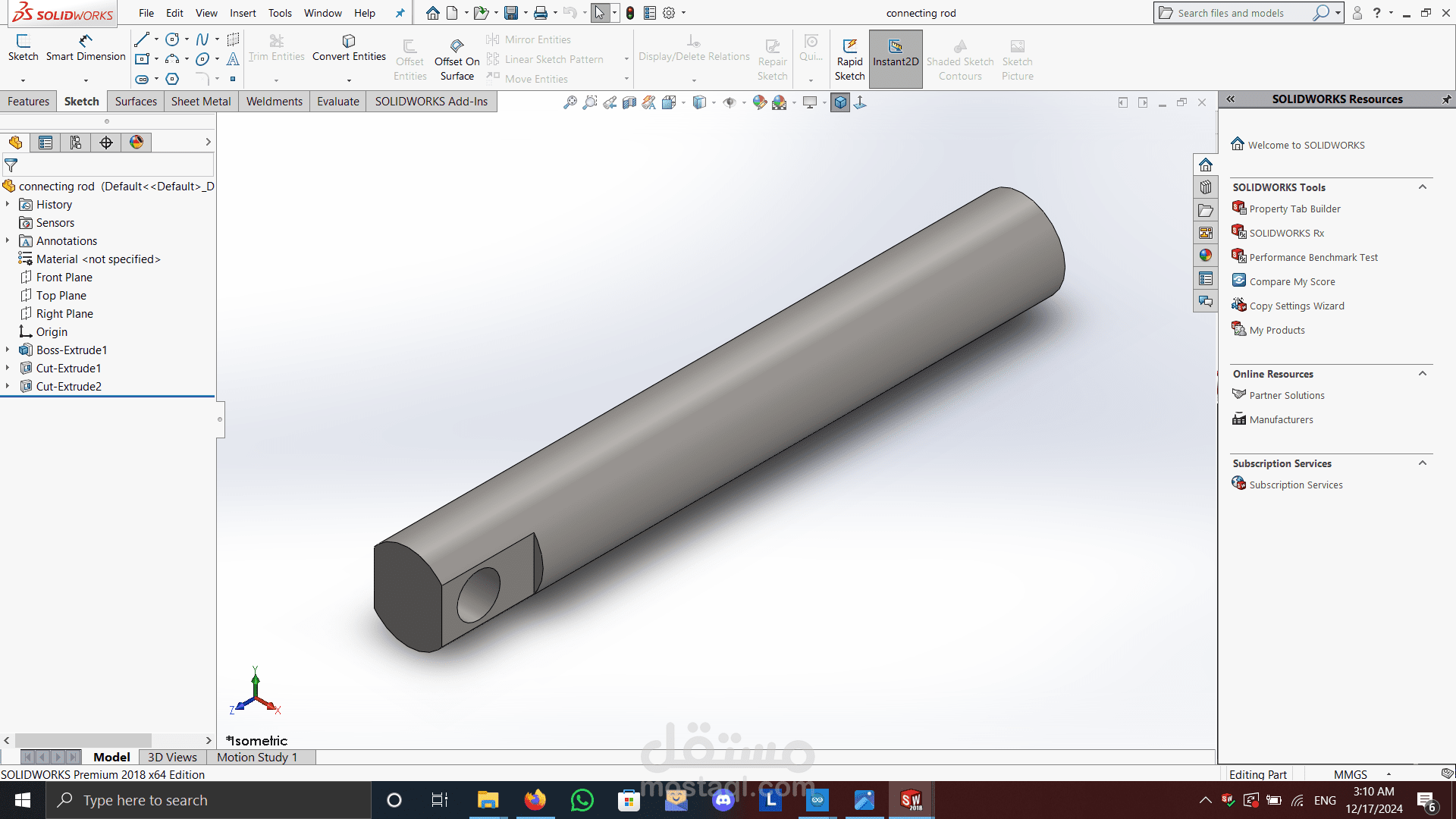

Extends and retracts to apply or release force on a workpiece.

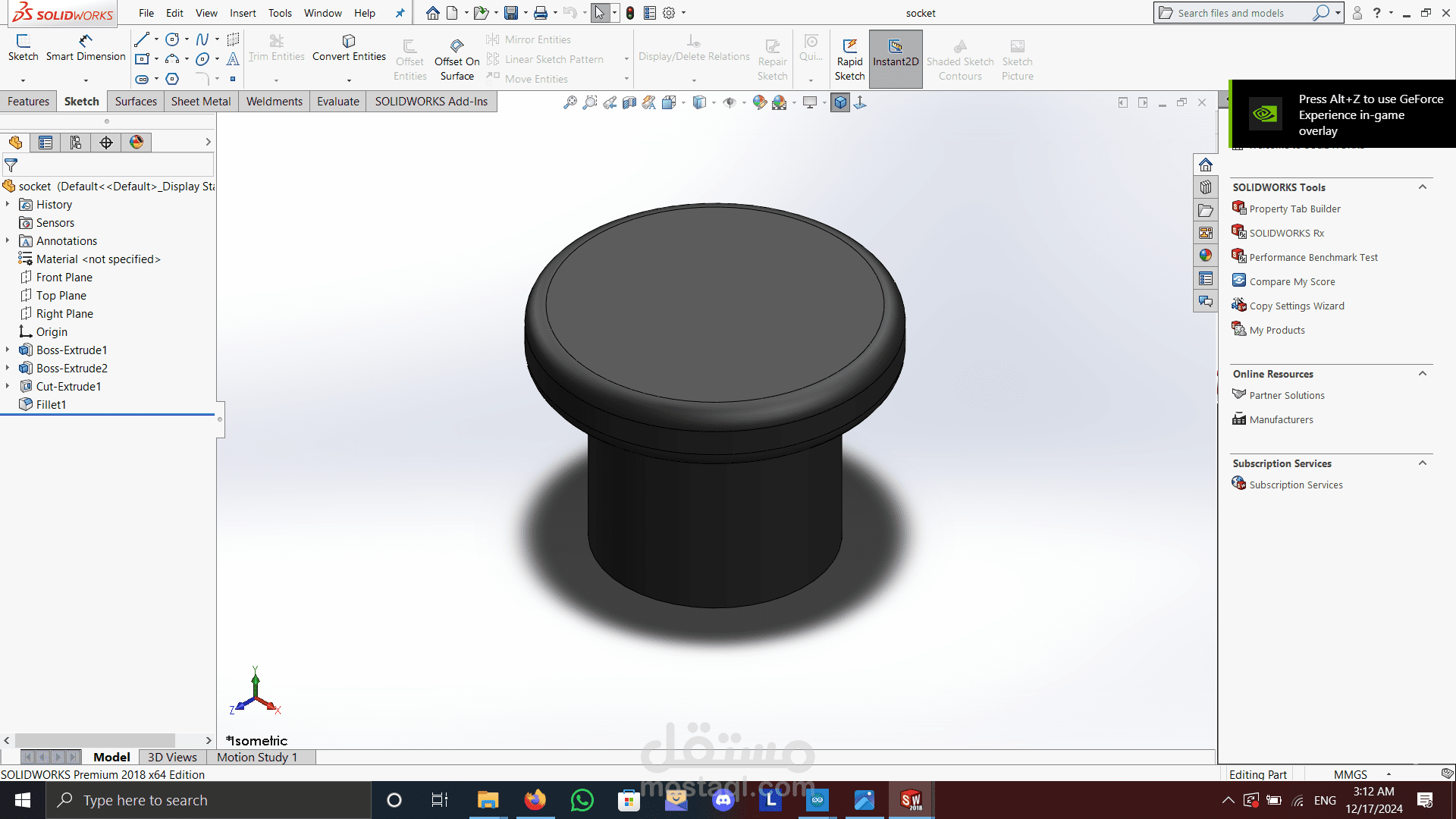

Knob or Plunger End (Black):

At the front end of the clamp arm, a rounded knob or plunger likely acts as the contact point for clamping.
