Gearbox

3D CAD model of a gearbox assembly, highlighting its internal and external components:

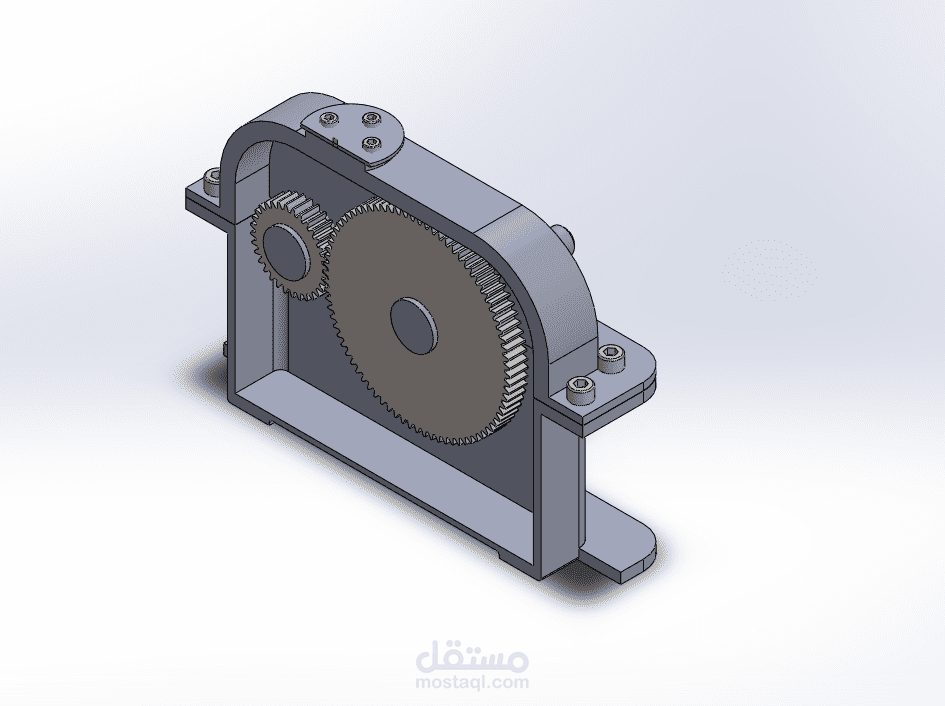

Internal View:

Shows the internal gear mechanism, consisting of two spur gears with precise meshing.

The larger gear transfers rotational motion to the smaller gear, enabling torque transmission and speed adjustment.

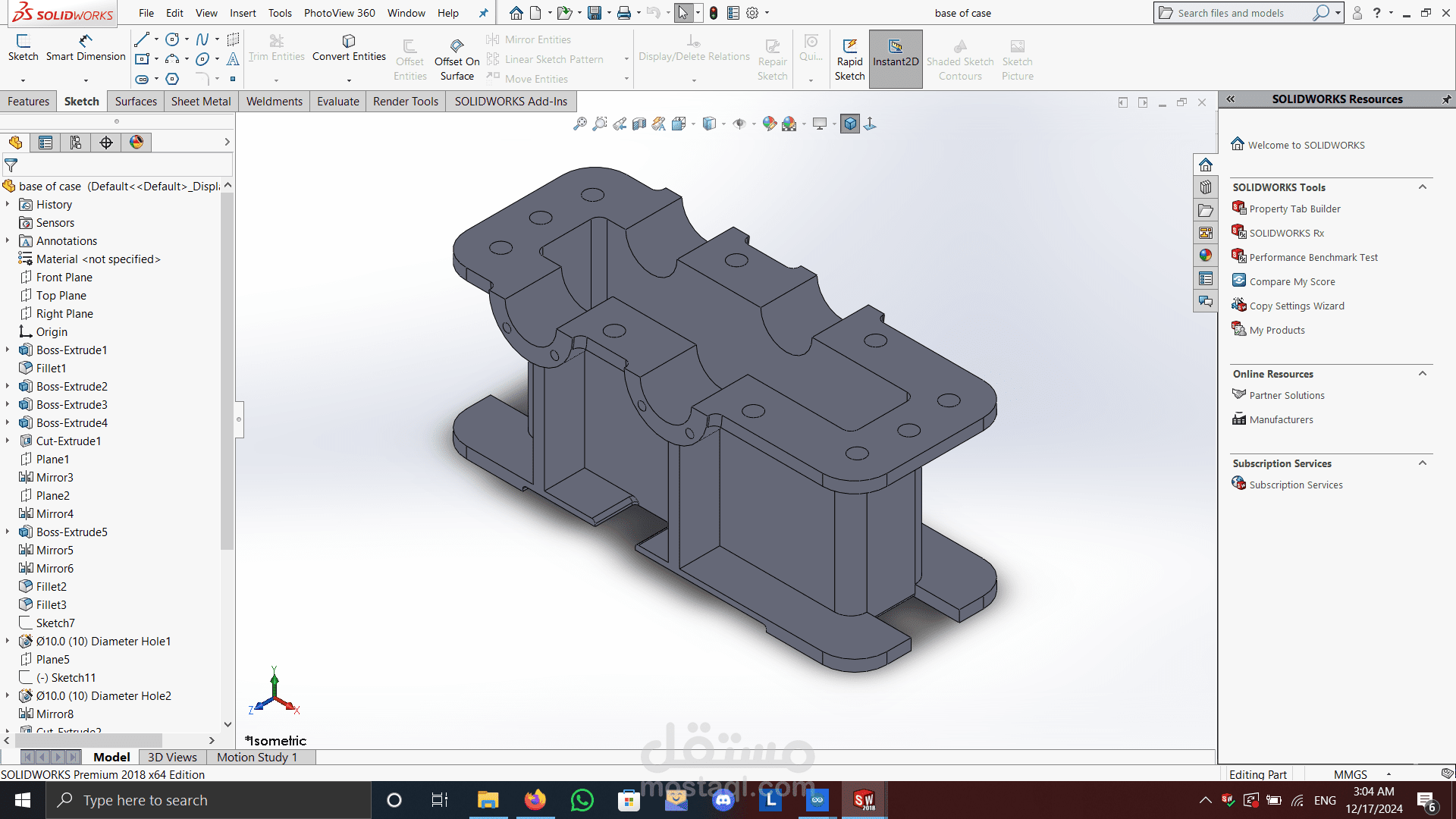

The gearbox casing provides structural support, securing the gears in place while allowing smooth operation.

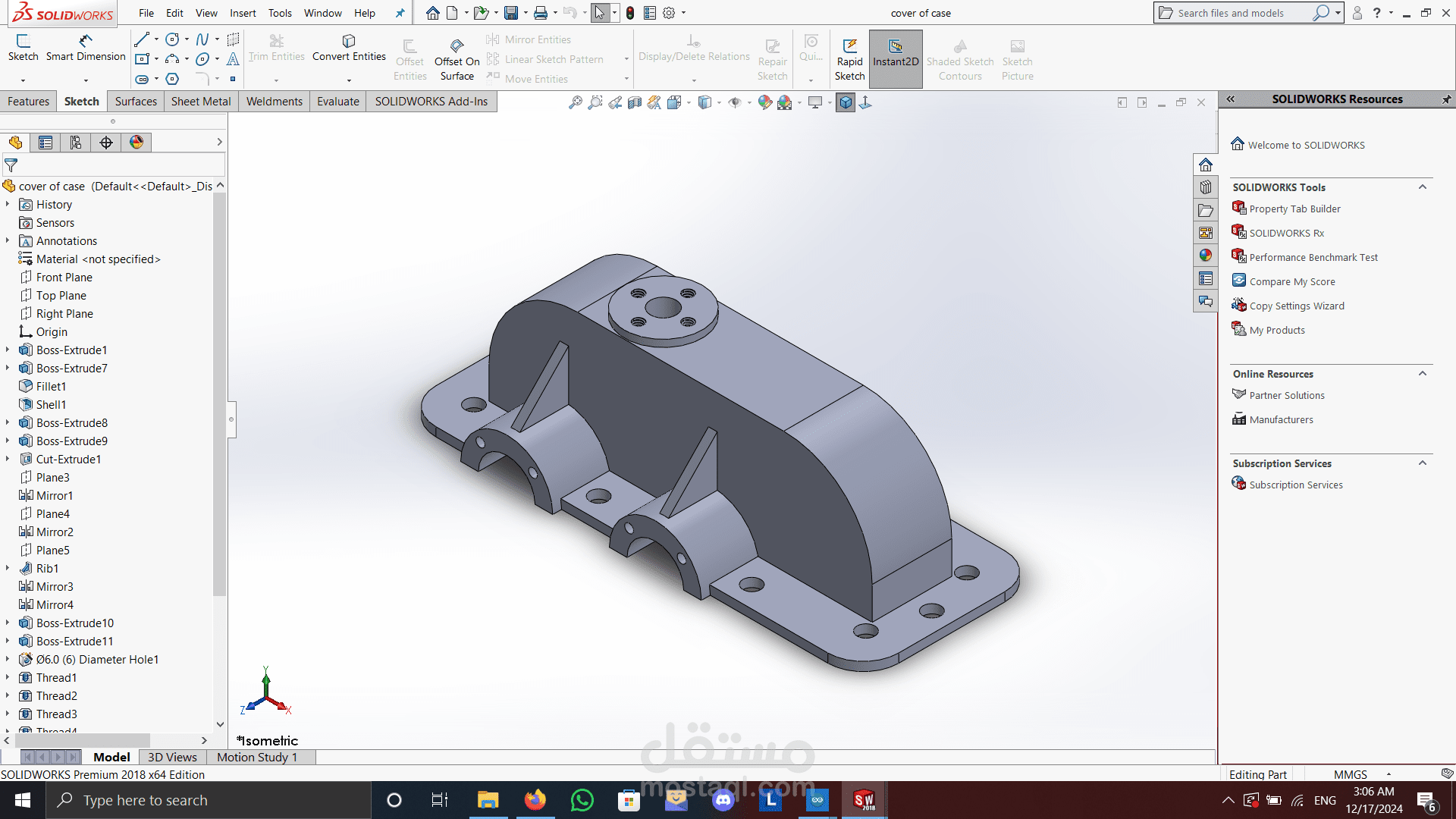

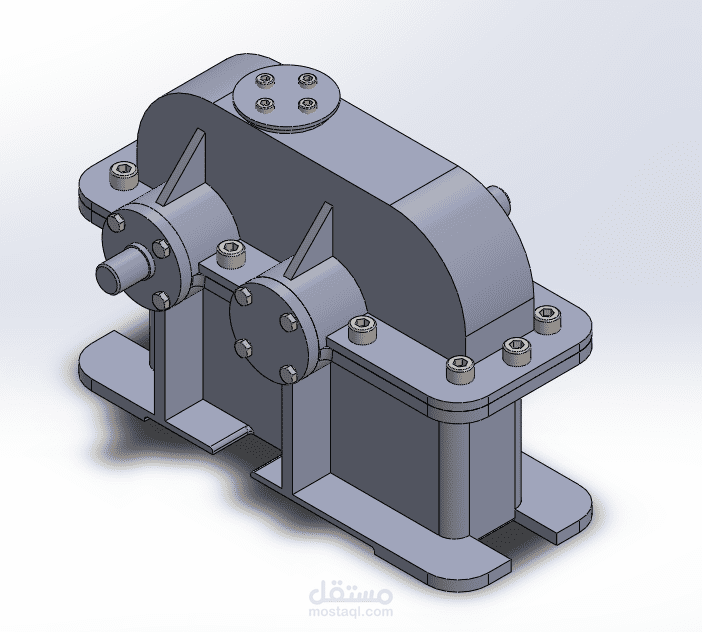

External View:

Displays the fully enclosed gearbox, showcasing a robust design with bolt connections for easy assembly and maintenance.

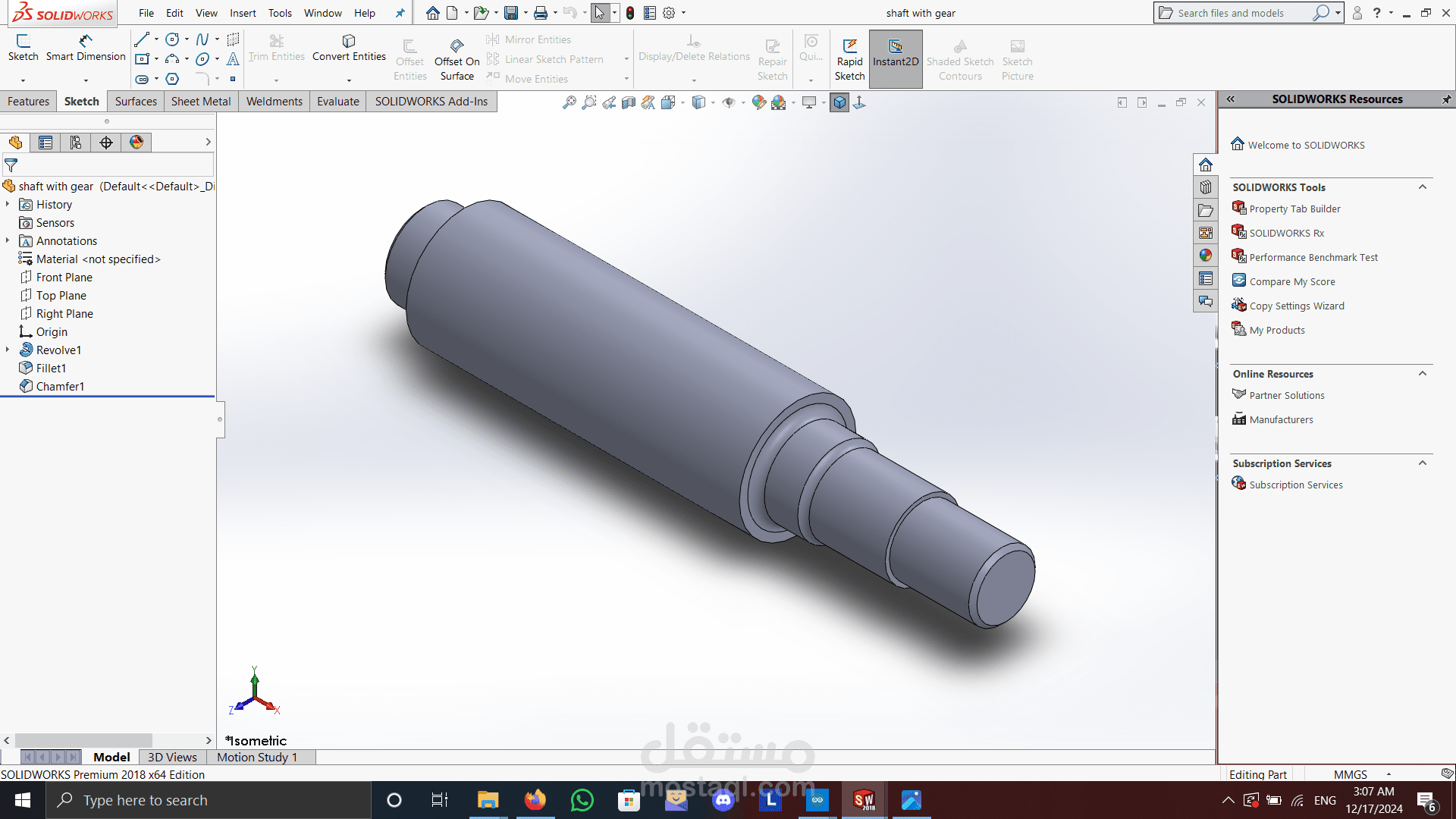

The input shaft and output shaft protrude from opposite ends, facilitating power input and output.

The casing features mounting supports at the base for secure installation.
