FEA Hydrostatic Simulation

From analyzing hydrostatic pressure on a water tank to designing a sturdy shelf with weldment tools, I used SOLIDWORKS to tackle complex engineering challenges.

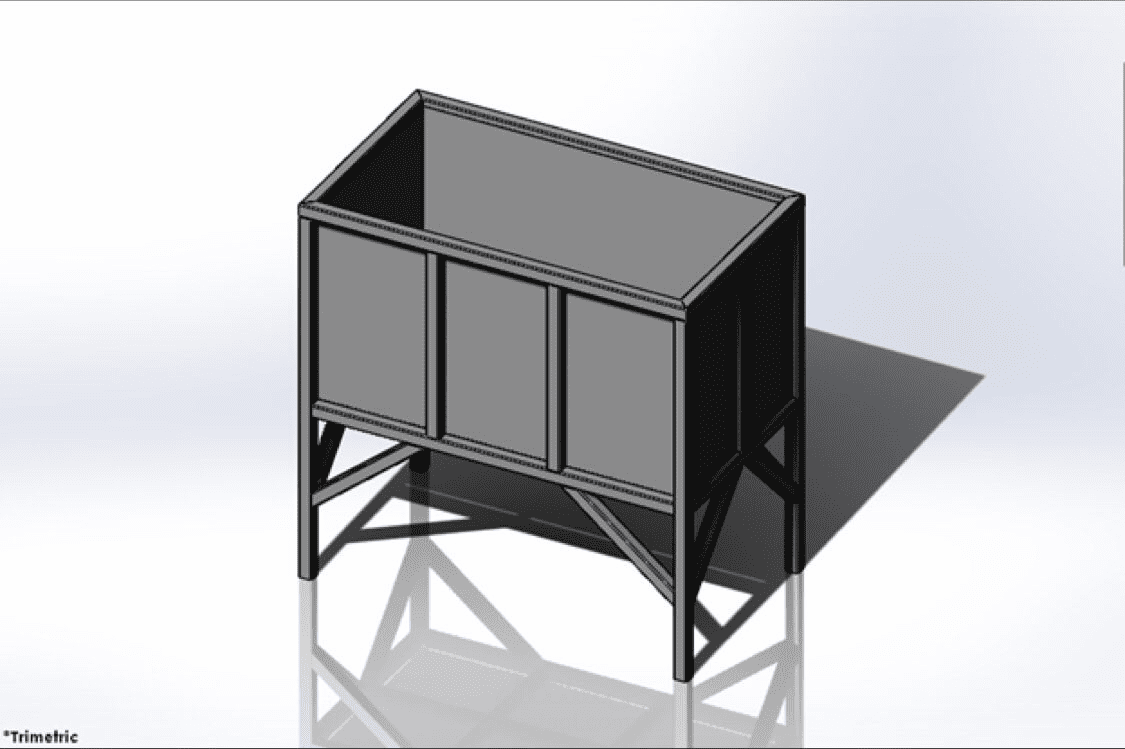

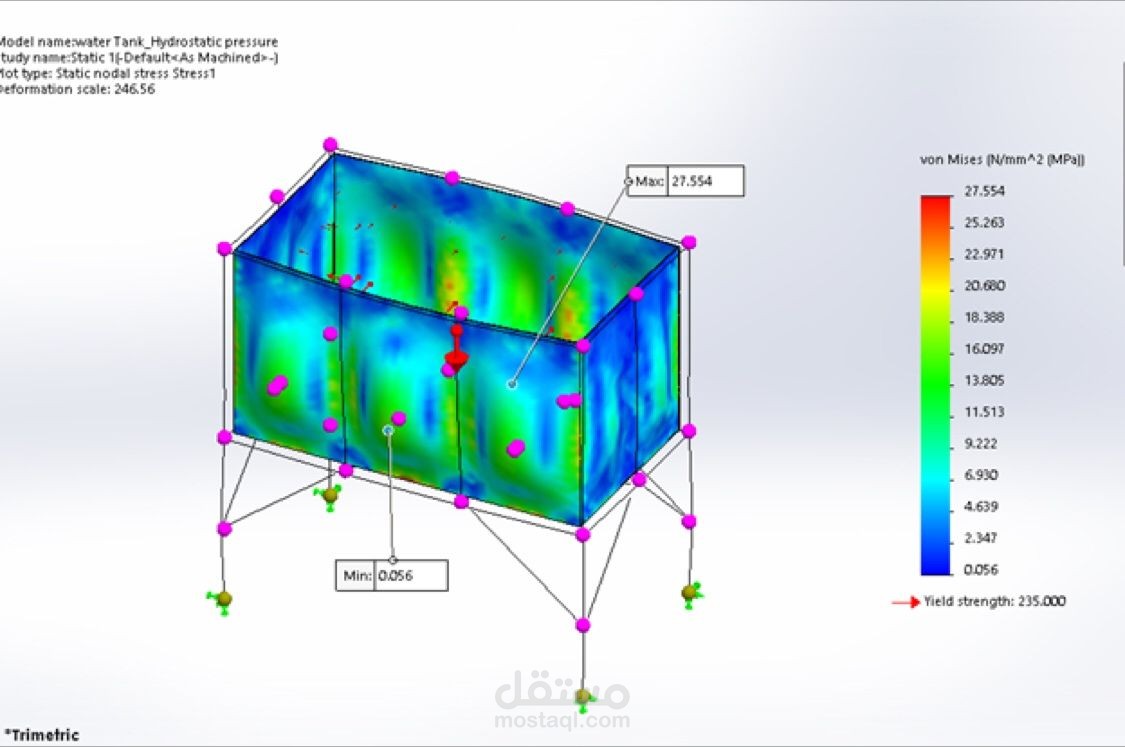

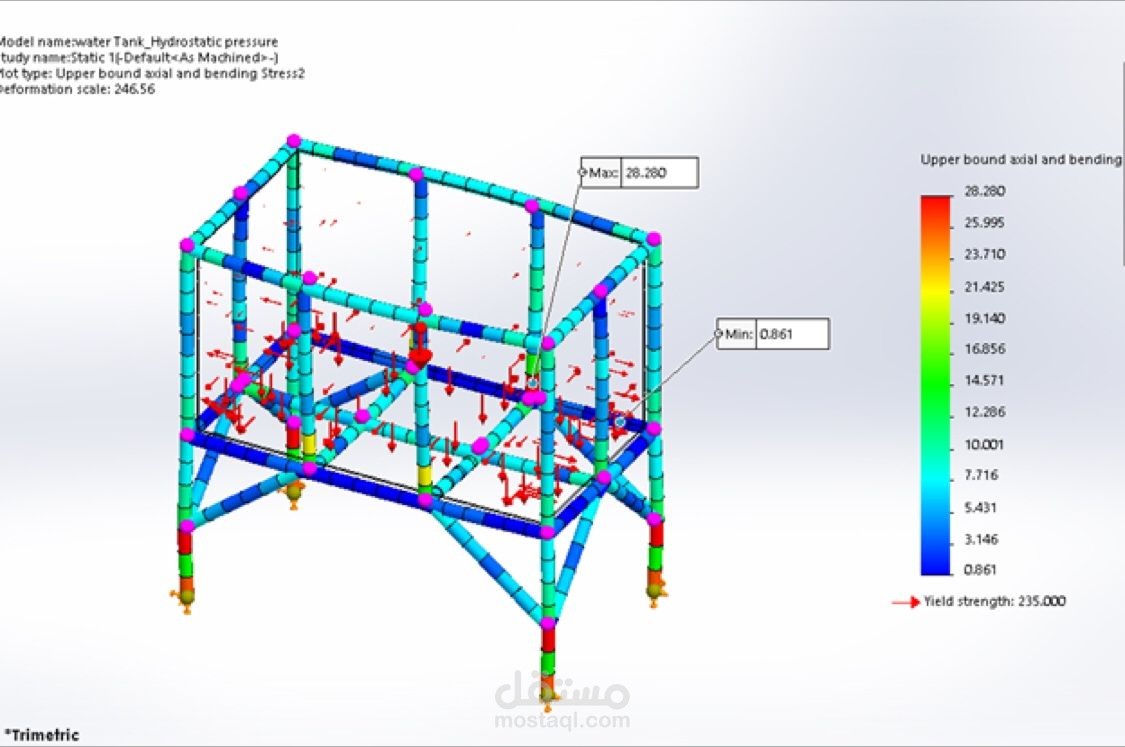

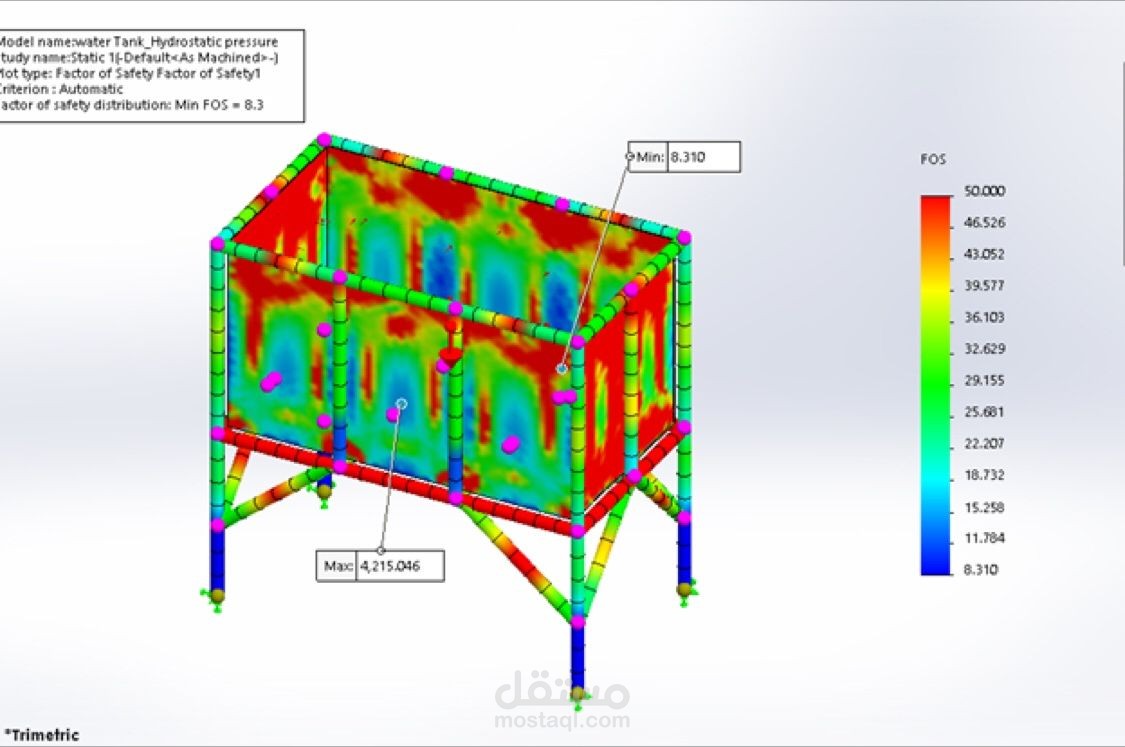

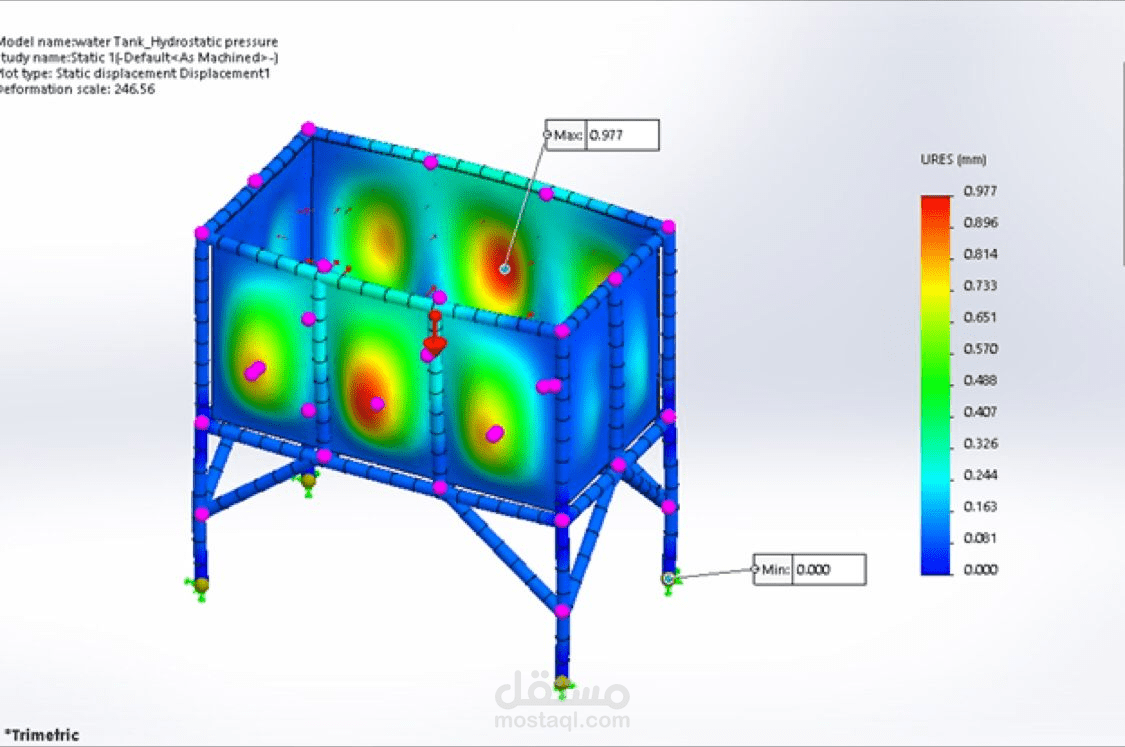

For the water tank, I applied non-uniform hydrostatic pressure and calculated maximum stress, displacement, and safety factors. This provided valuable insights into the tank’s structural integrity.
