Heart Disease Prediction Project
Project Overview
This project aims to predict heart disease stages using a machine learning model deployed through a Flask web application. It involves data analysis, model development, and a user-friendly interface for inputting patient data and viewing predictions.
Project Steps
1. Data Analysis
Objective: Analyze and clean the UCI Heart Disease dataset, handling missing values efficiently.
Missing Values: Instead of deleting rows (which would reduce the dataset from 920 to 299 rows), imputation with median and mode was used.
EDA (Exploratory Data Analysis):
Used functions like describe(), info(), and value_counts() to understand data distribution.
Checked unique values in each column and explored feature relationships using plots.
2. Model Development
Model Creation: Developed a predictive model with steps including encoding, scaling, and data splitting.
Performance and Saving: The model's performance was evaluated, and the following were saved:
Prediction model: heart_disease_model.keras
Encoders: heart_disease_encoder.pkl and heart_disease_OneHotEncoder.pkl
Standard Scaler: heart_disease_standard_scaler.pkl
Integration: Provided examples to ensure input data compatibility with the Flask app.
3. Flask Application
Purpose: Collect inputs from users, process them, and use the model for predictions.
Input Consistency: The app processes inputs using the same steps as the model development phase.
4. Templates
index.html: A basic HTML template with input fields matching model features, a prediction button, and a section to display results.
Saved Files
heart_disease_encoder.pkl - Saved Label Encoder.
heart_disease_model.keras - Saved Prediction Model.
heart_disease_OneHotEncoder.pkl - Saved OneHot Encoder.
heart_disease_standard_scaler.pkl - Saved Standard Scaler.
heart_disease_uci.csv - Dataset in CSV format.
Screenshots

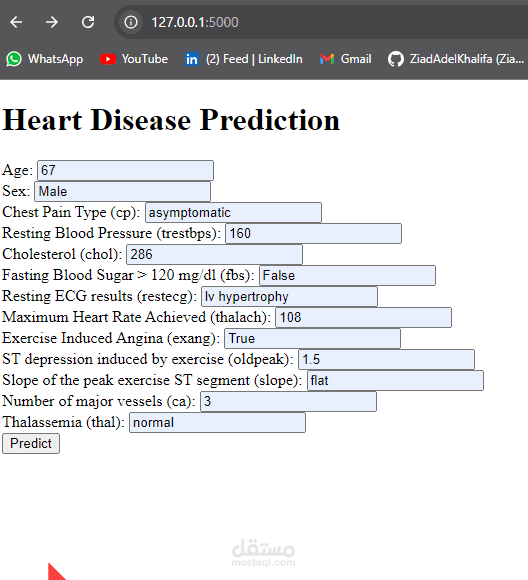

Input Page (0.png): Displays how users enter feature values.
Prediction Result (1(1).png): Shows JSON output containing:
Predicted Category: The category number with the highest probability.
Predicted Label: The meaning of the predicted category.
Prediction Probabilities: Probabilities for each class in the prediction.
How to Run the Project
1. Set Up the Conda Environment
Create and activate a conda environment with the required Python version:
conda create --name heart_disease_env python=3.8
conda activate heart_disease_env
2. Install Required Libraries
Create a requirements.txt file with the following content:
TensorFlow==2.13.0
Keras==2.13.1
Scikit-learn==1.3.2
Pandas==2.0.3
Matplotlib==3.7.5
Seaborn==0.13.2
Imbalanced-learn==0.12.3
Joblib==1.4.2
NumPy==1.24.3
Flask==3.0.3
Install the libraries using:
pip install -r requirements.txt
3. Run the Application
Run the Flask app using:
python app.py
Ensure that the directory contains:
Model: heart_disease_model.keras
Label Encoder: heart_disease_encoder.pkl
OneHot Encoder: heart_disease_OneHotEncoder.pkl
Standard Scaler: heart_disease_standard_scaler.pkl
Include a templates folder with the index.html file.
