Electric Design Work

The program covered the following topics:

1. Design concept

(Zoning - Load estimation according to Egyptian code ,DPS code ,IEEE NEC).

2. Bulk Equipment

( Low/Medium voltage switchgear -

Transformer - Generator - UPS - Centeral

Battery - ATS).

3. Space program.

4. Lighting Design

(Indoor Lighting - Street Lighting )

5. Small power Design and MEP

Coordination.

6. Light Current Design

(Fire alarm system - Sound system - CCTV -

Public Address system - Access control

System - Structure Cabling).

7. Cables and Busway Sizing.

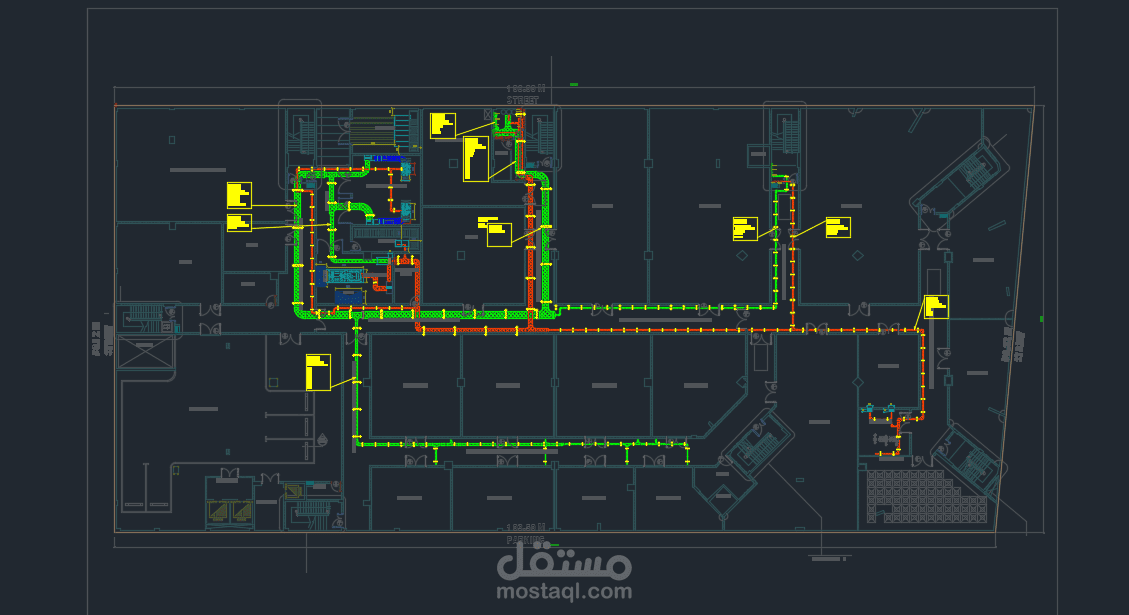

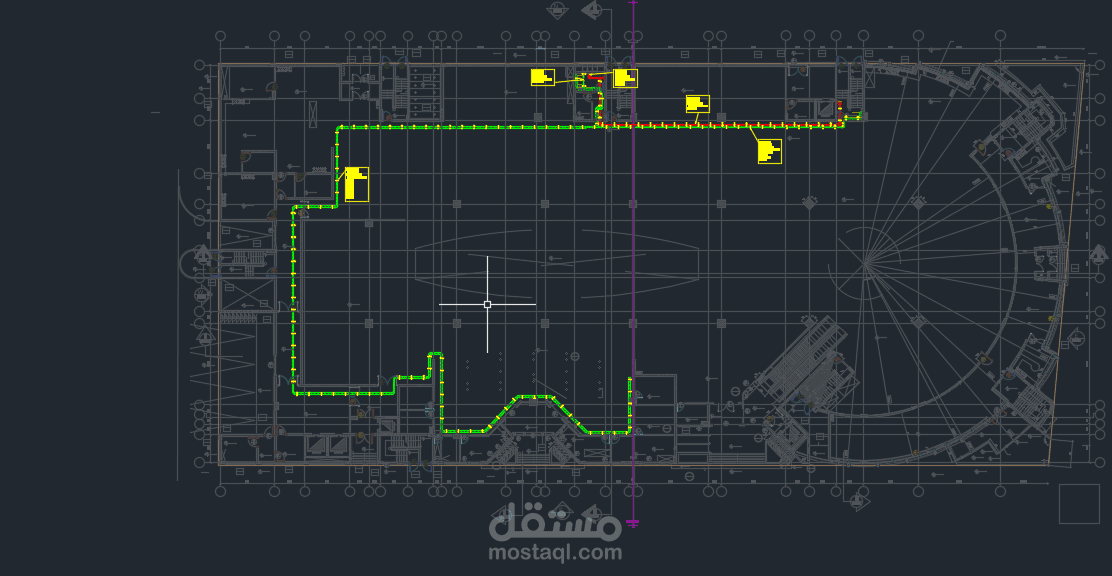

8. Cable Routing.

9. Panel Schedule.

10. Power Factor correction.

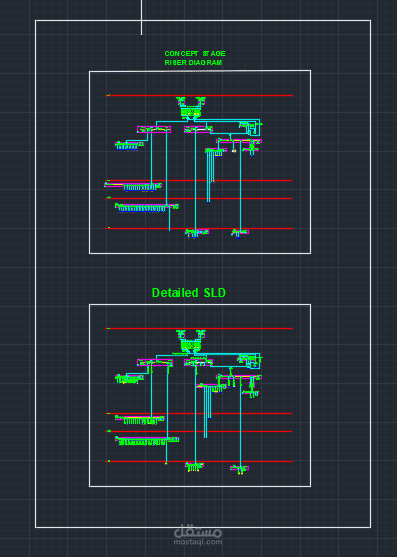

11. Single Line Diagram.

12. Switching Devices.

13. Selectivity and Cascading.

14. Voltage Drop and Short Circuit

Calculations.

15. Infrastructure work.

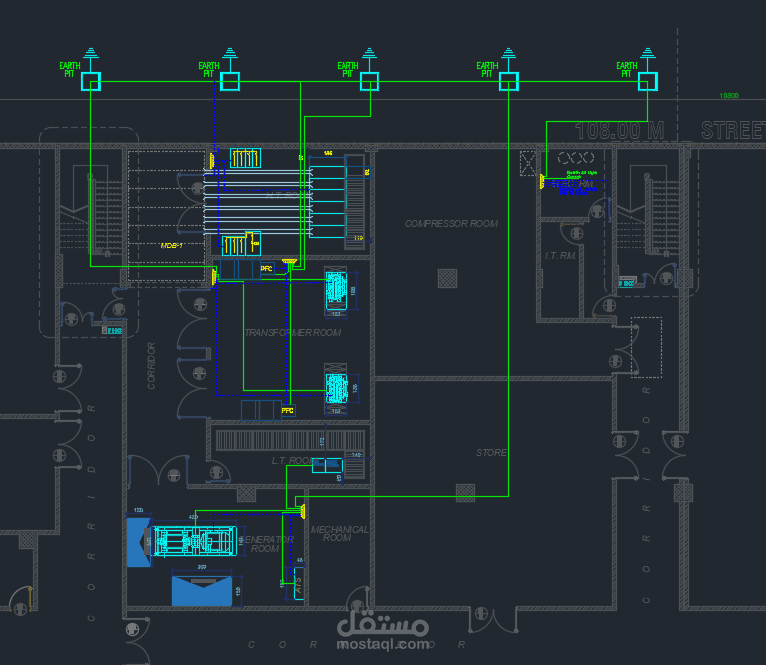

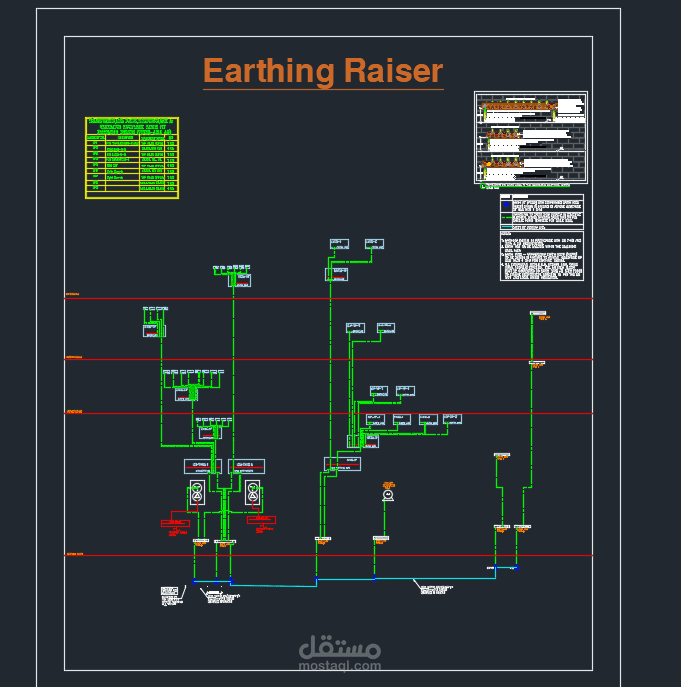

16. Earthing System.

17. Lightinig System.

Also enhanced my knowledge in :

-AutoCAD.

-Revit.

-Dialux red.

-Dialux evo.

-Etap.

-Excel.

Designed, executed, and discussed a

complete final project

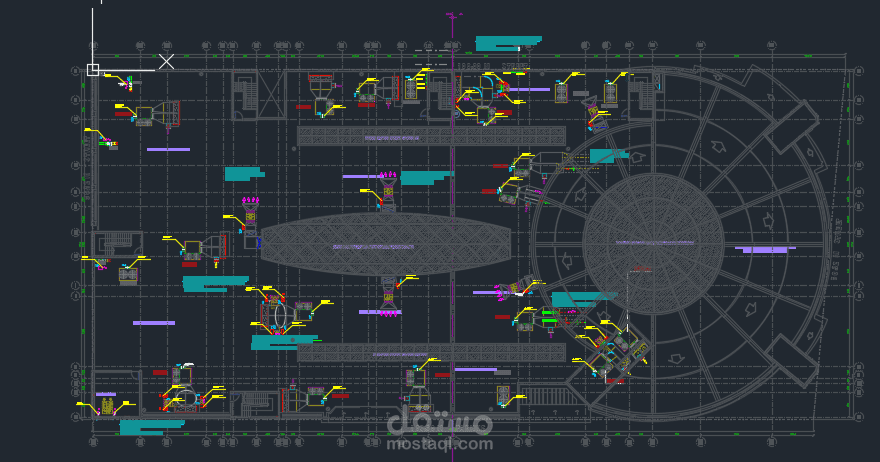

"Electrical Distribution for commercial

Mall" (Al Rumaithya Mall).

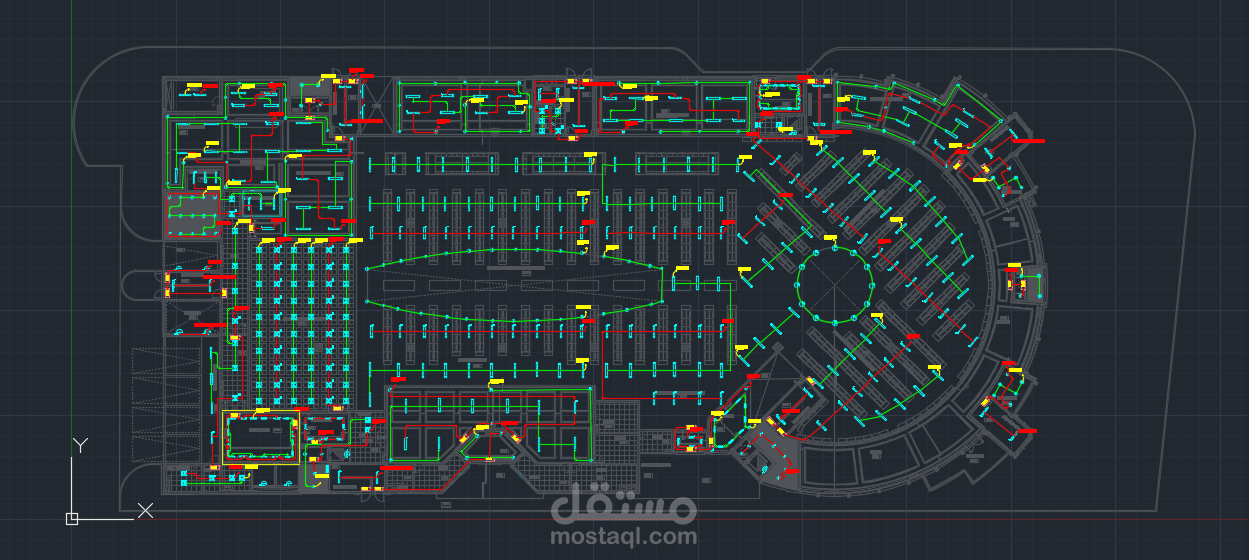

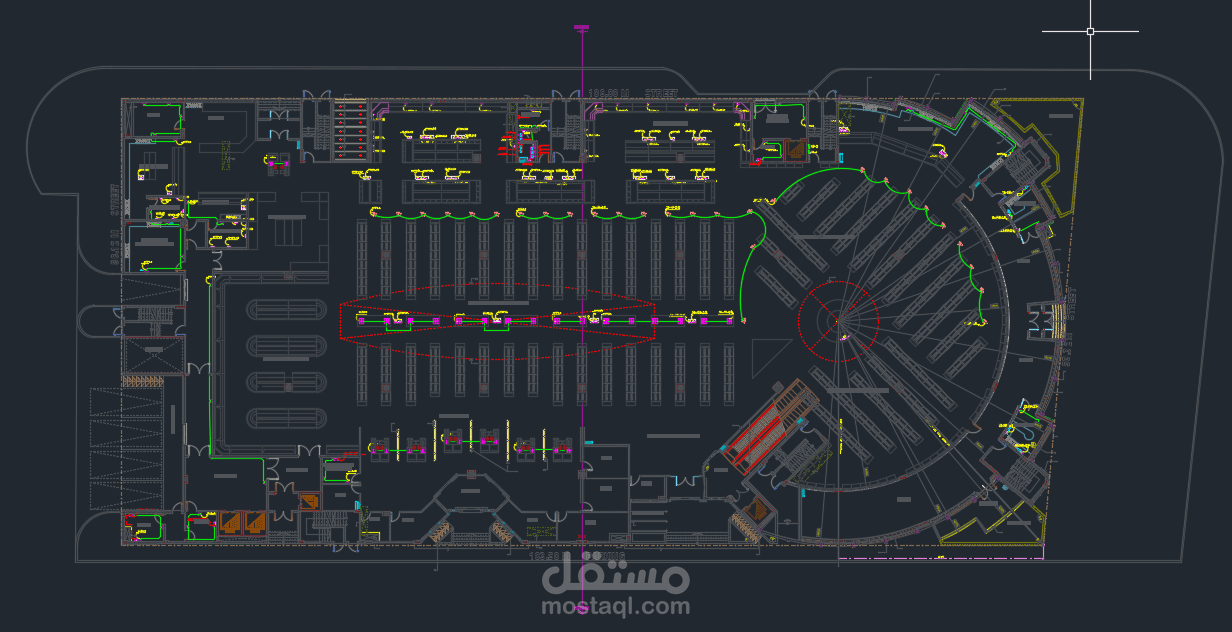

Design the Interior Electrical Installation For

a Commercial Building.

The project duration was three weeks of hard

work with my teammates and we made the

project discussion with leading engineers in

the company.
