Mechanical Design for Gantry Crane Hinge

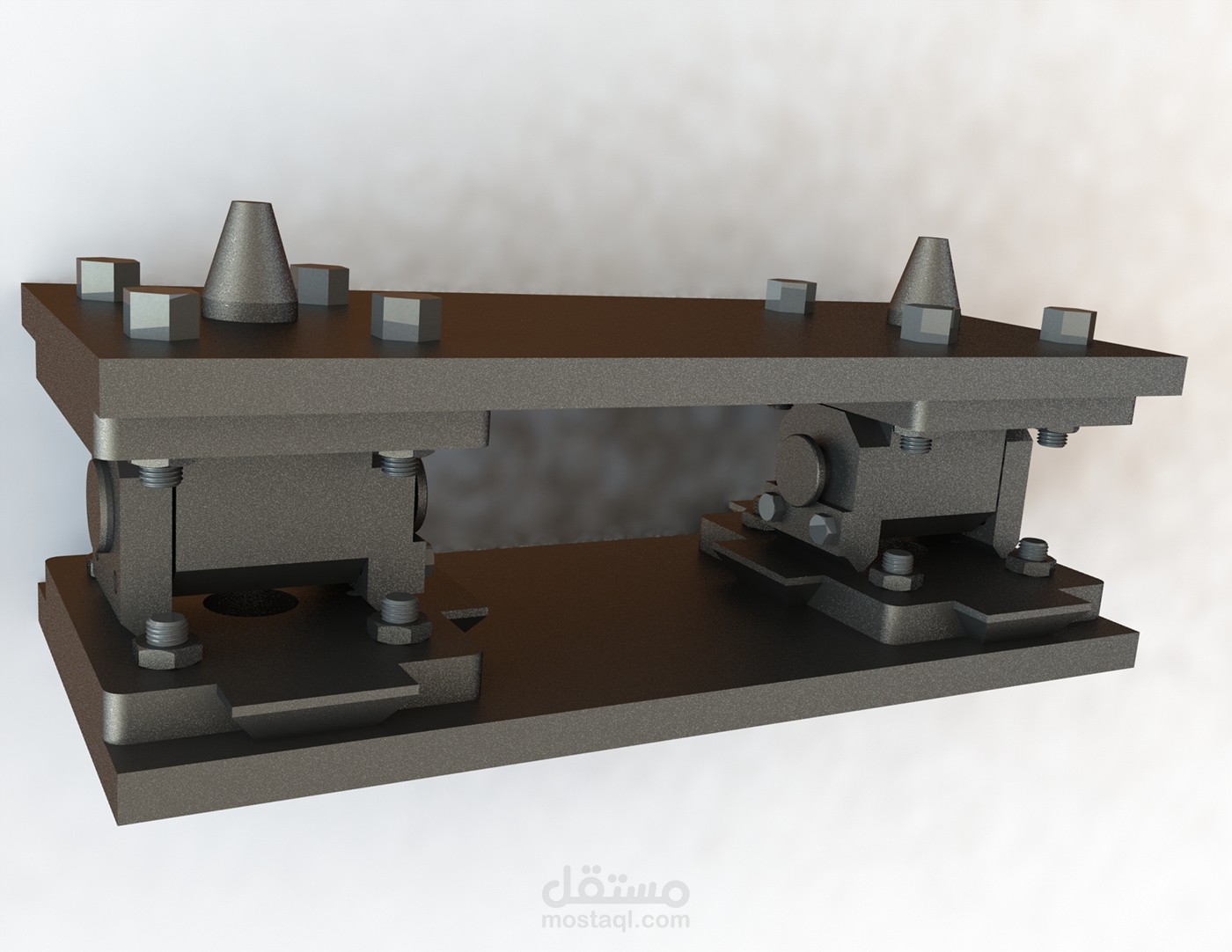

Project description. I was tasked with converting 2D drawings of a gantry crane hinge into a comprehensive 3D model. While I did not originally design the components, I meticulously interpreted the provided 2D part drawings and created detailed 3D models. Furthermore, I assembled these components into a complete 3D assembly, ensuring accuracy and functionality in the final design.
