Semi Automatic 2-axis CNC table

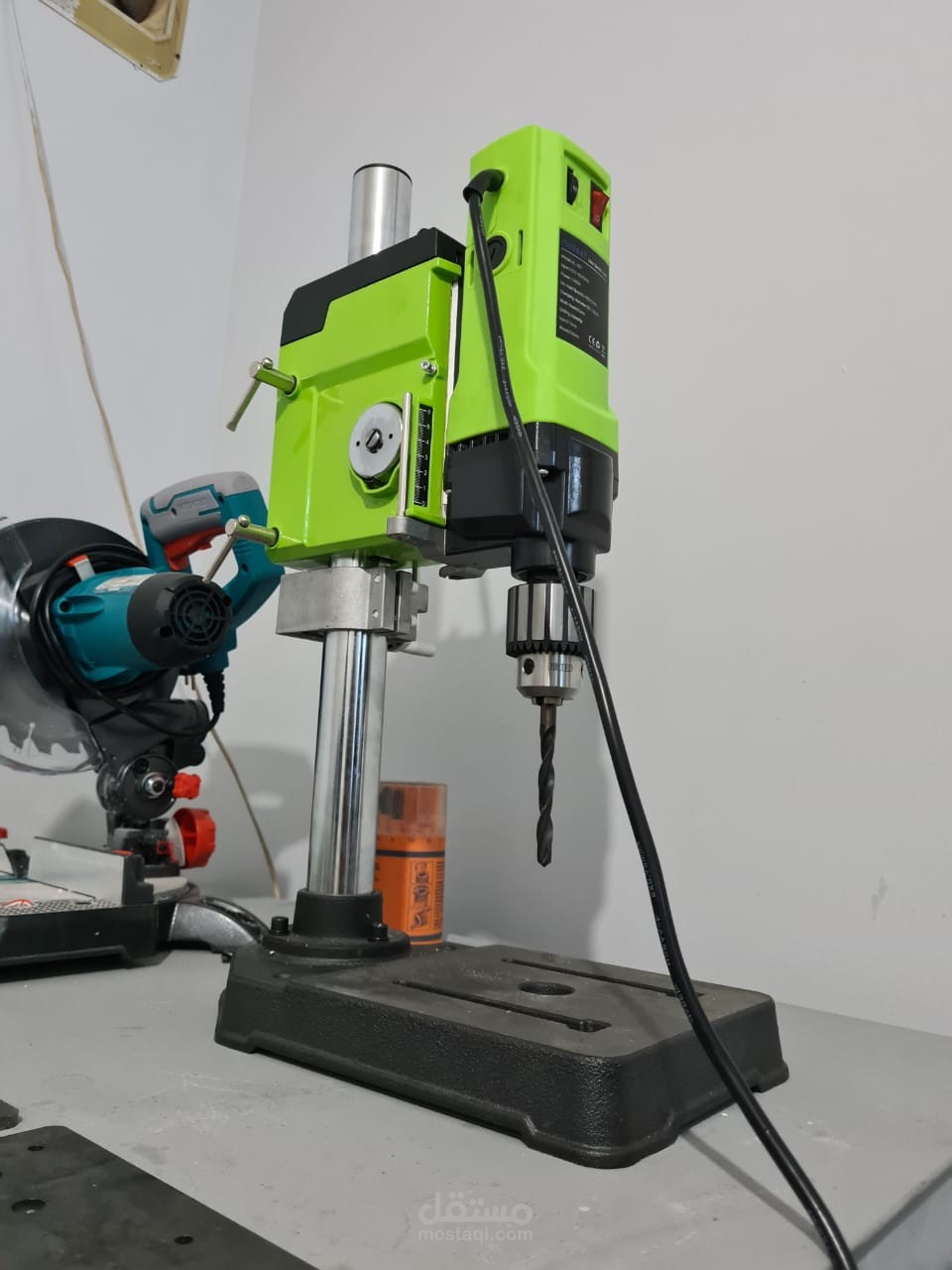

This 2-axis CNC semi-automatic CNC table is designed to be mounted on a press drill to give the user the ability to make slotes and to make holes with accurate positioning which can not be acheived with only the press drill. This system is implemented on my press drill at my LAB.

Project Description :

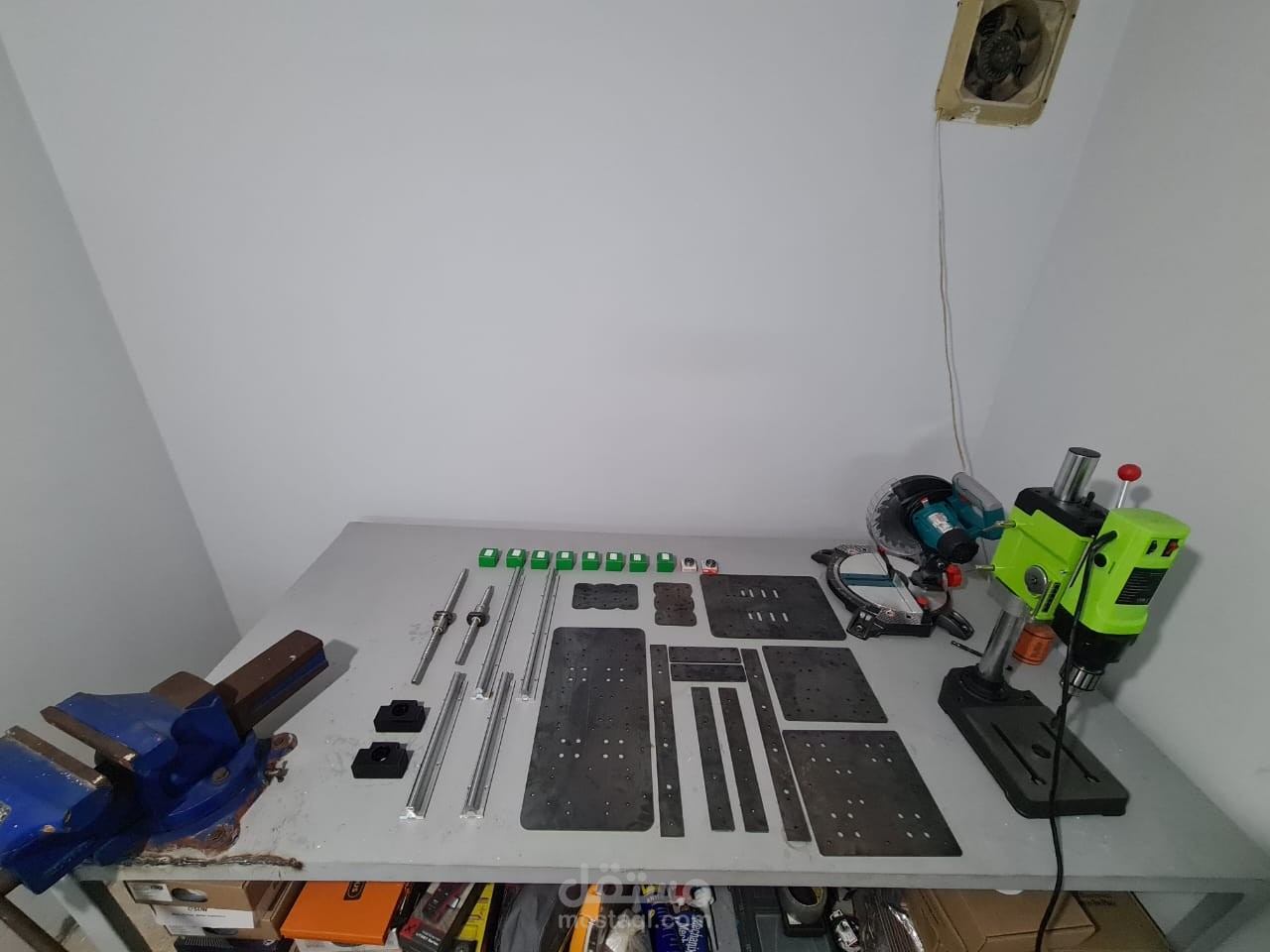

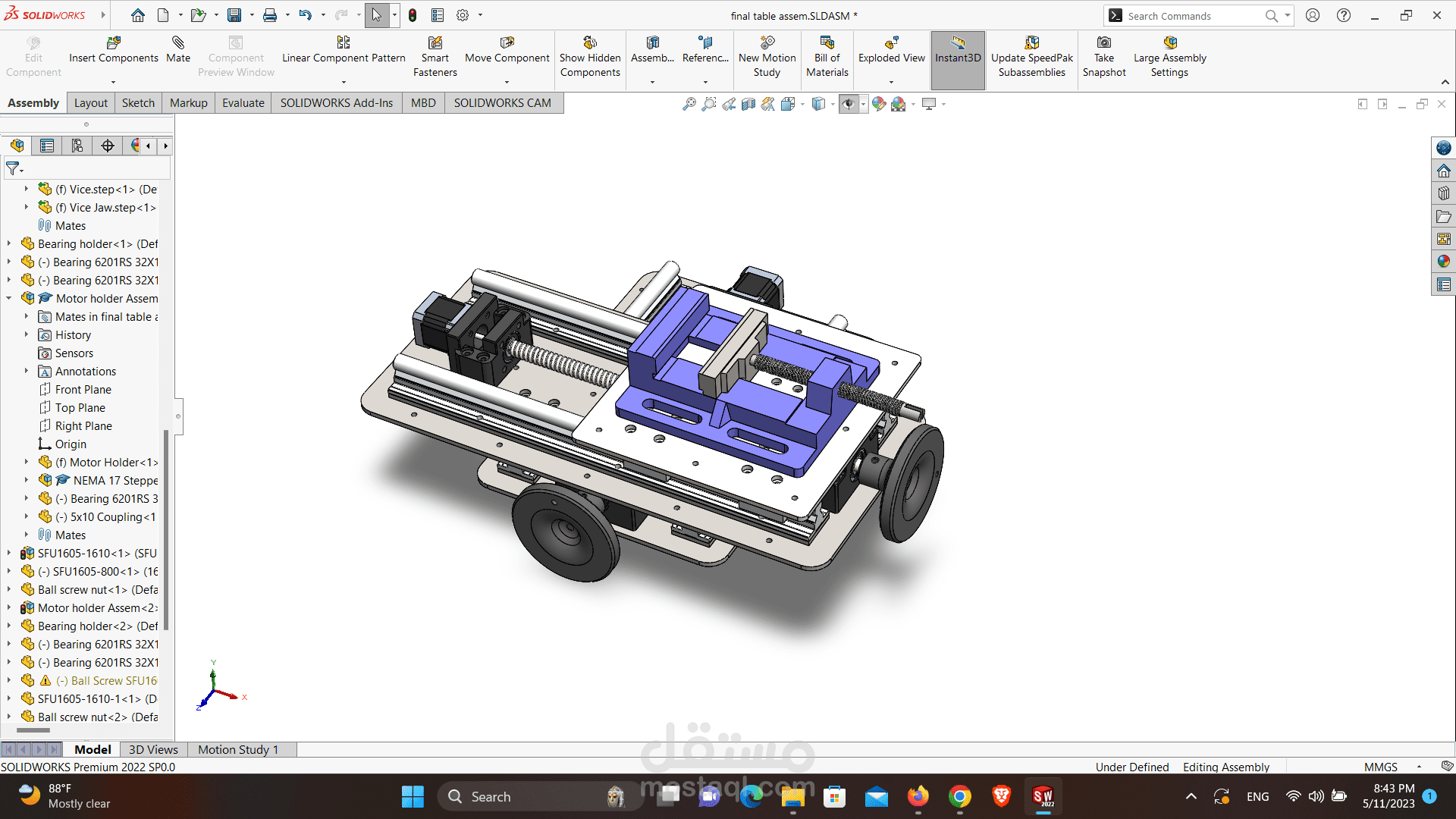

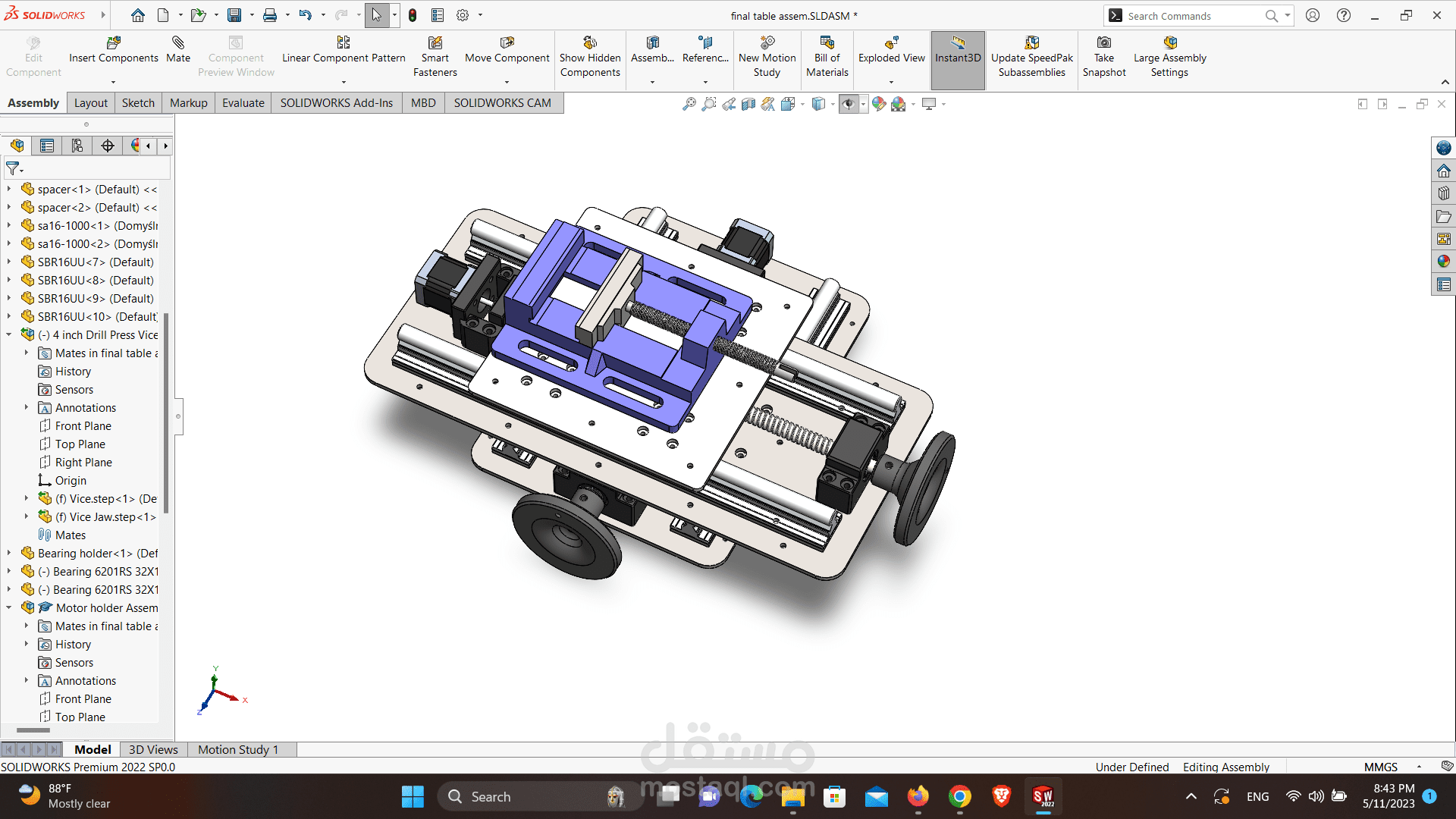

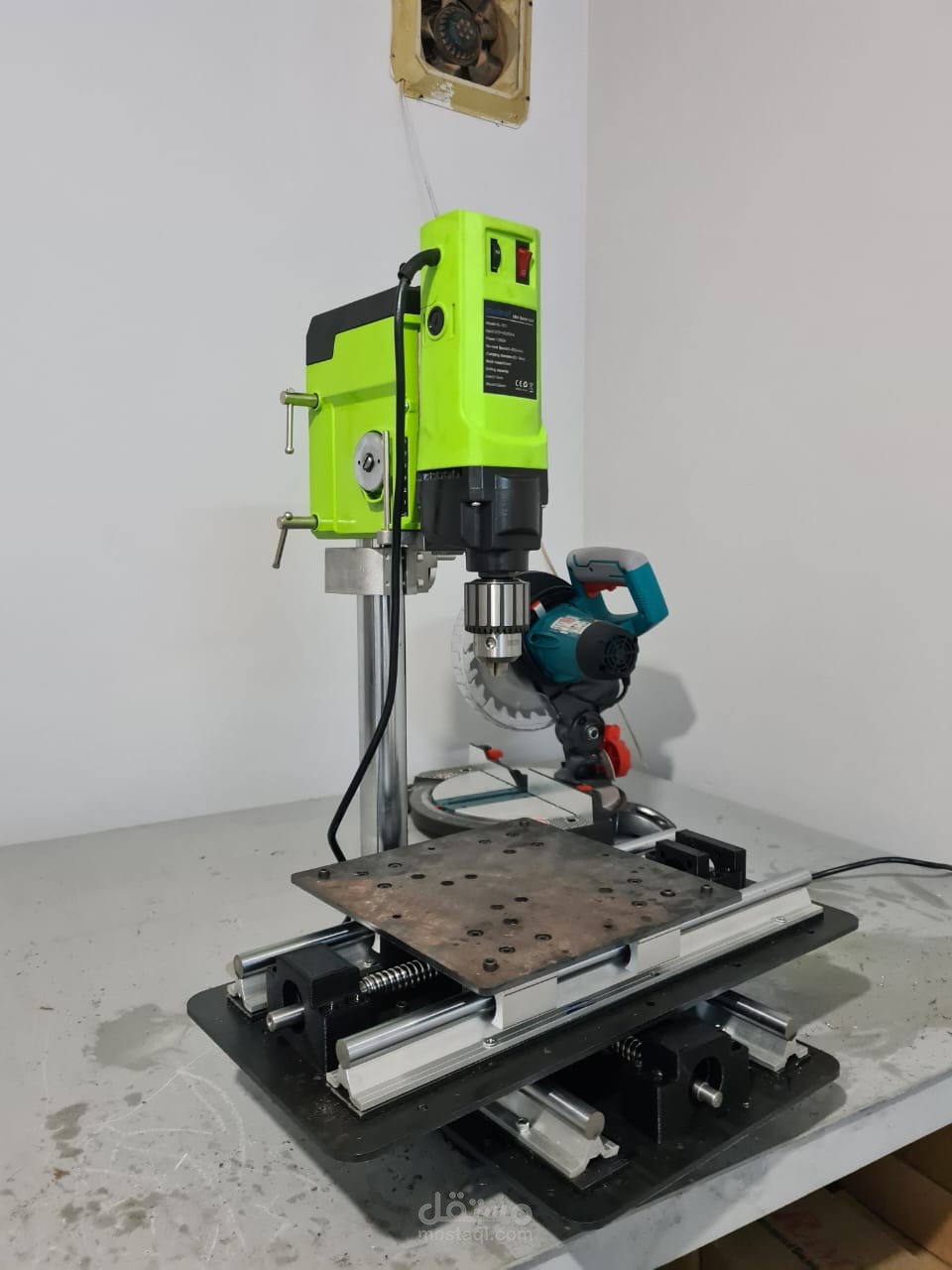

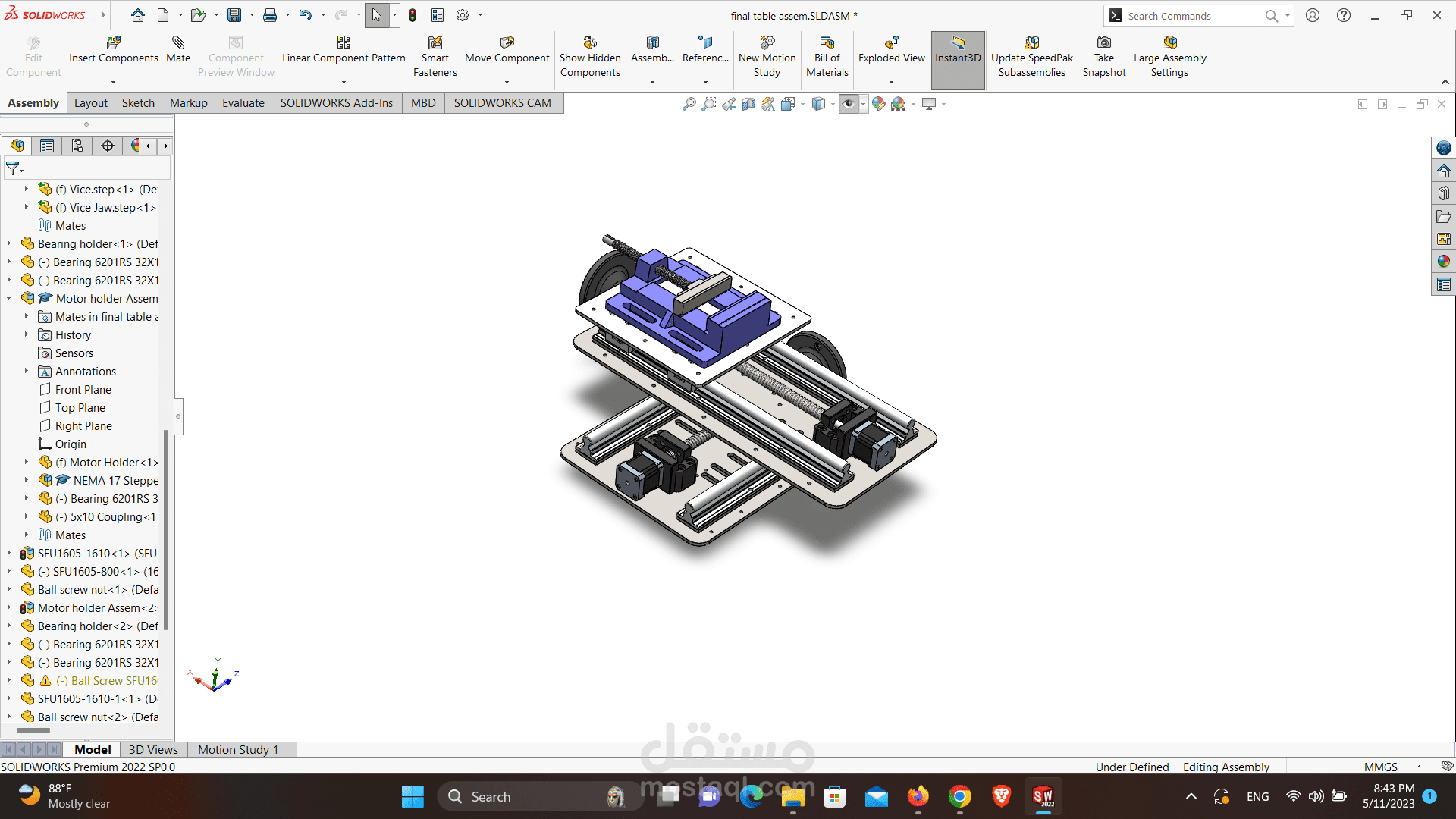

First the Semi Automatic_2-axis CNC table is designed and modeled on Solidworks and then the designed parts is manufactured using LASER cutting machine and conventional Lathe, then assembled in my LAB with the assembly steps and all the rails are mounted and caliprated with dial indicator. The system is designed to be used with two modes of operation ; manual withe the rollers and automatic with arduino based control . last but not least the software is designed to take coordinates from the user and convert them to stepper signals going to the stepper drivers.
