Magnetic Coupler - magnetic clutch -

This Project was designed to use the magnetic coupling as a part of motor testing setup, however we then used it as a magnetic coupler design set varying the num. of magnet and air gap

Project Description :

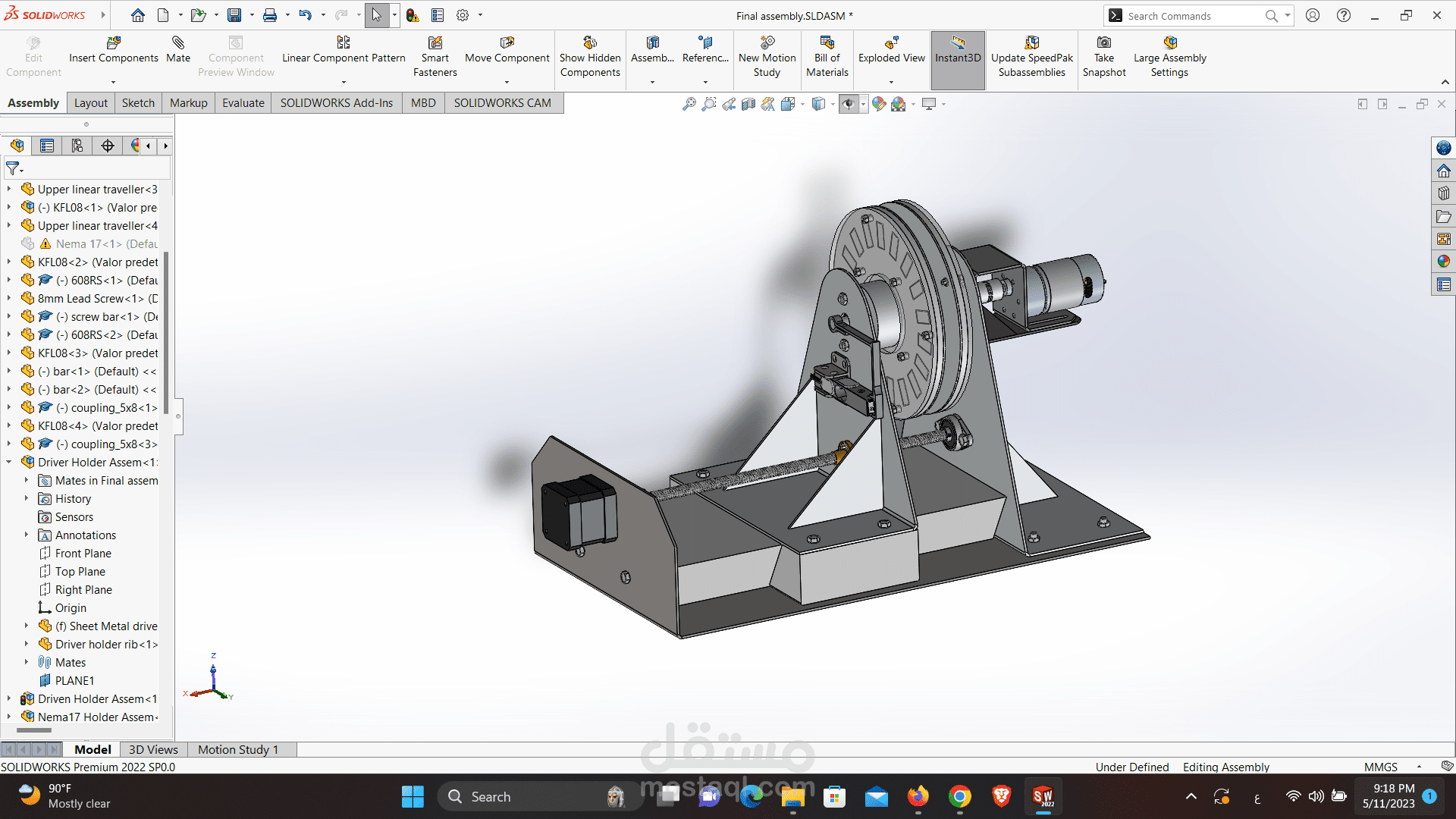

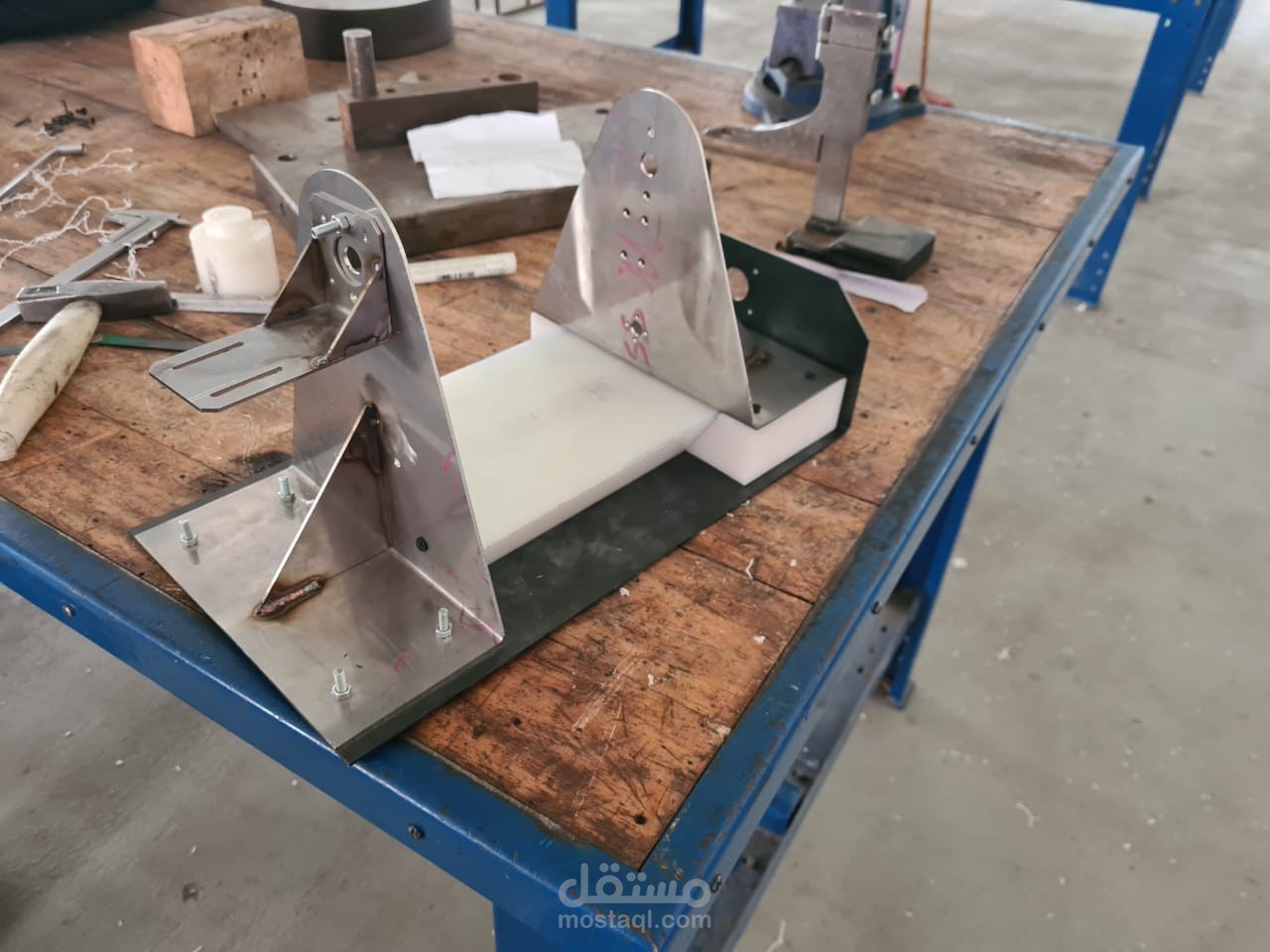

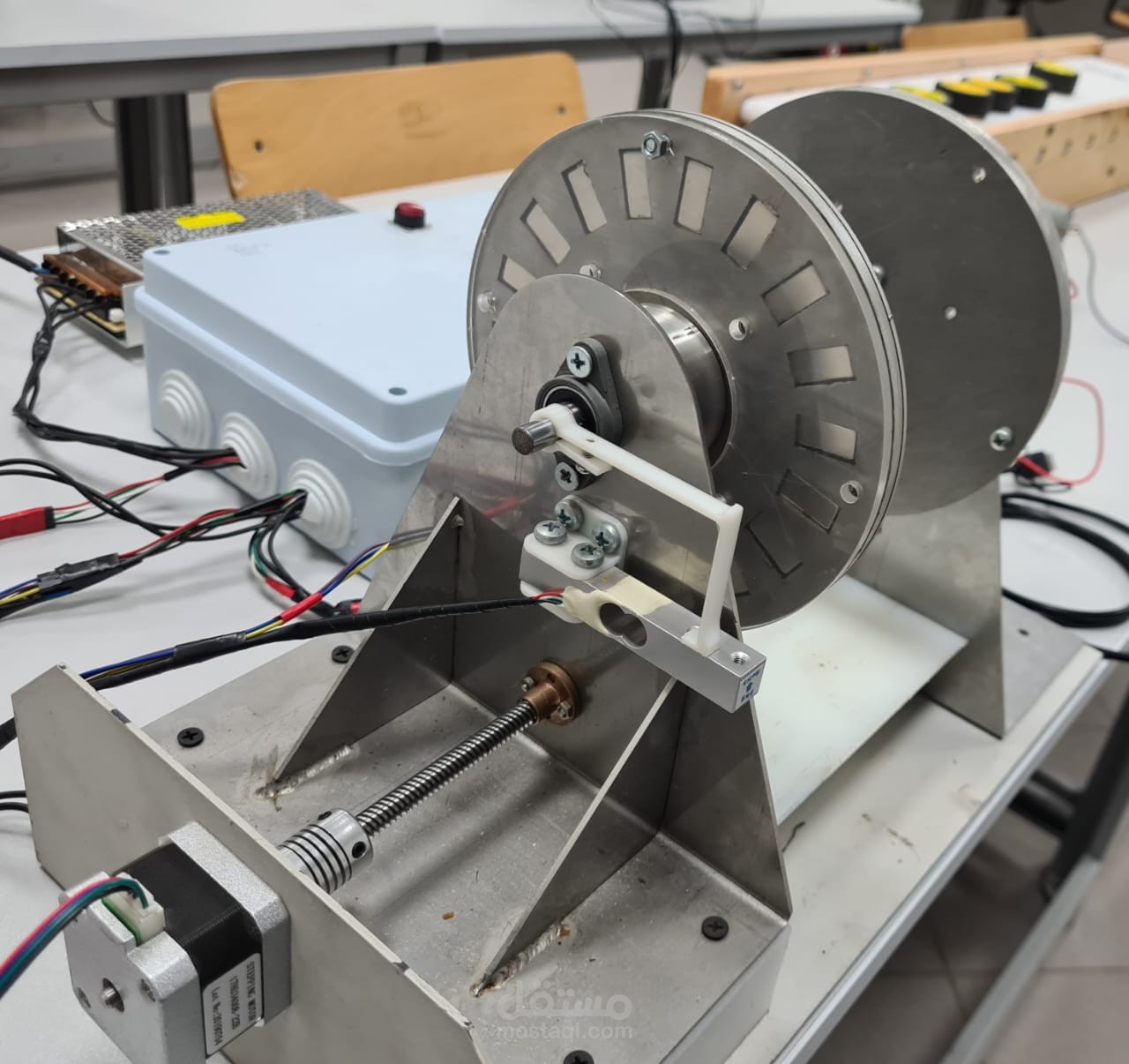

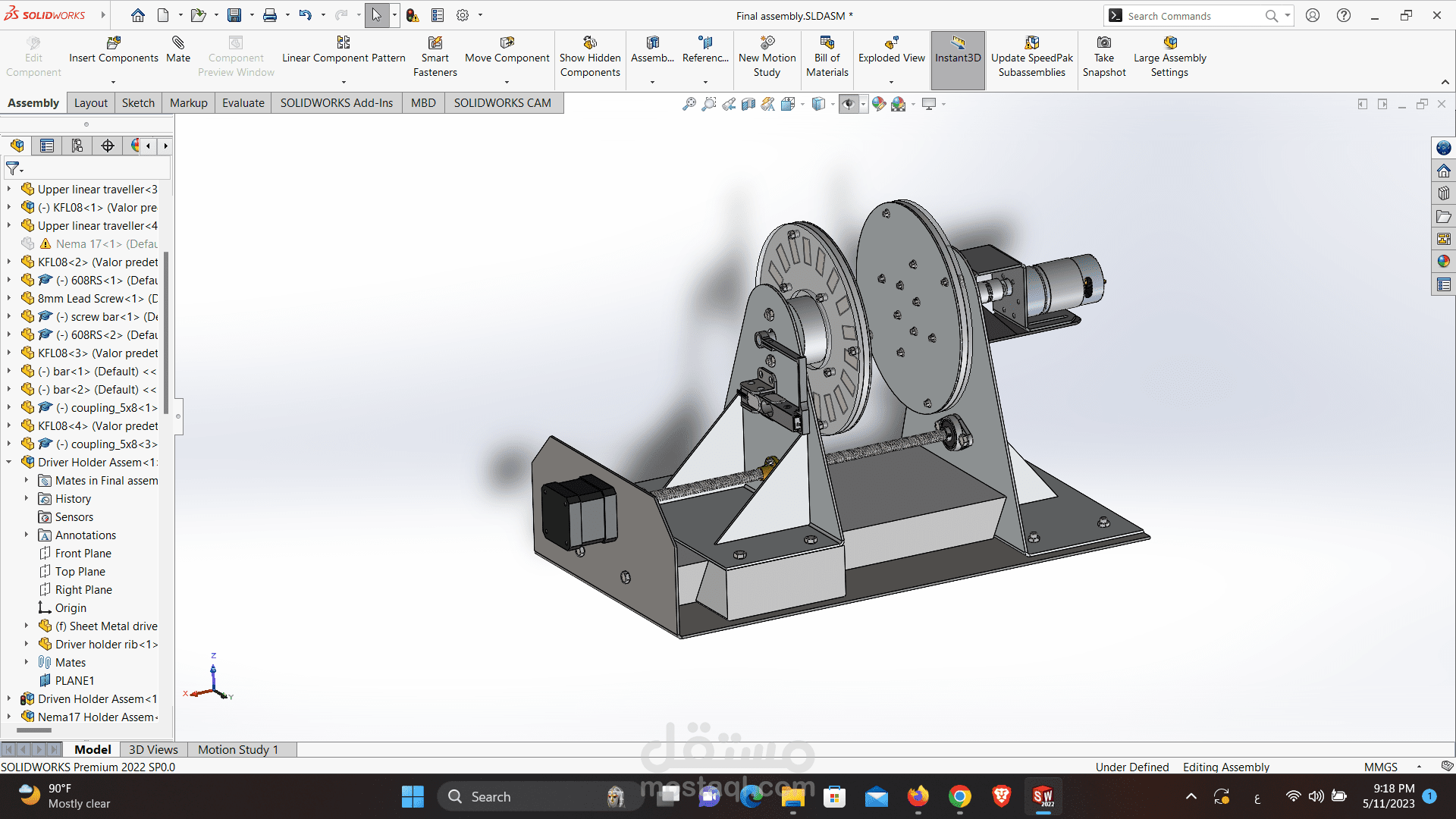

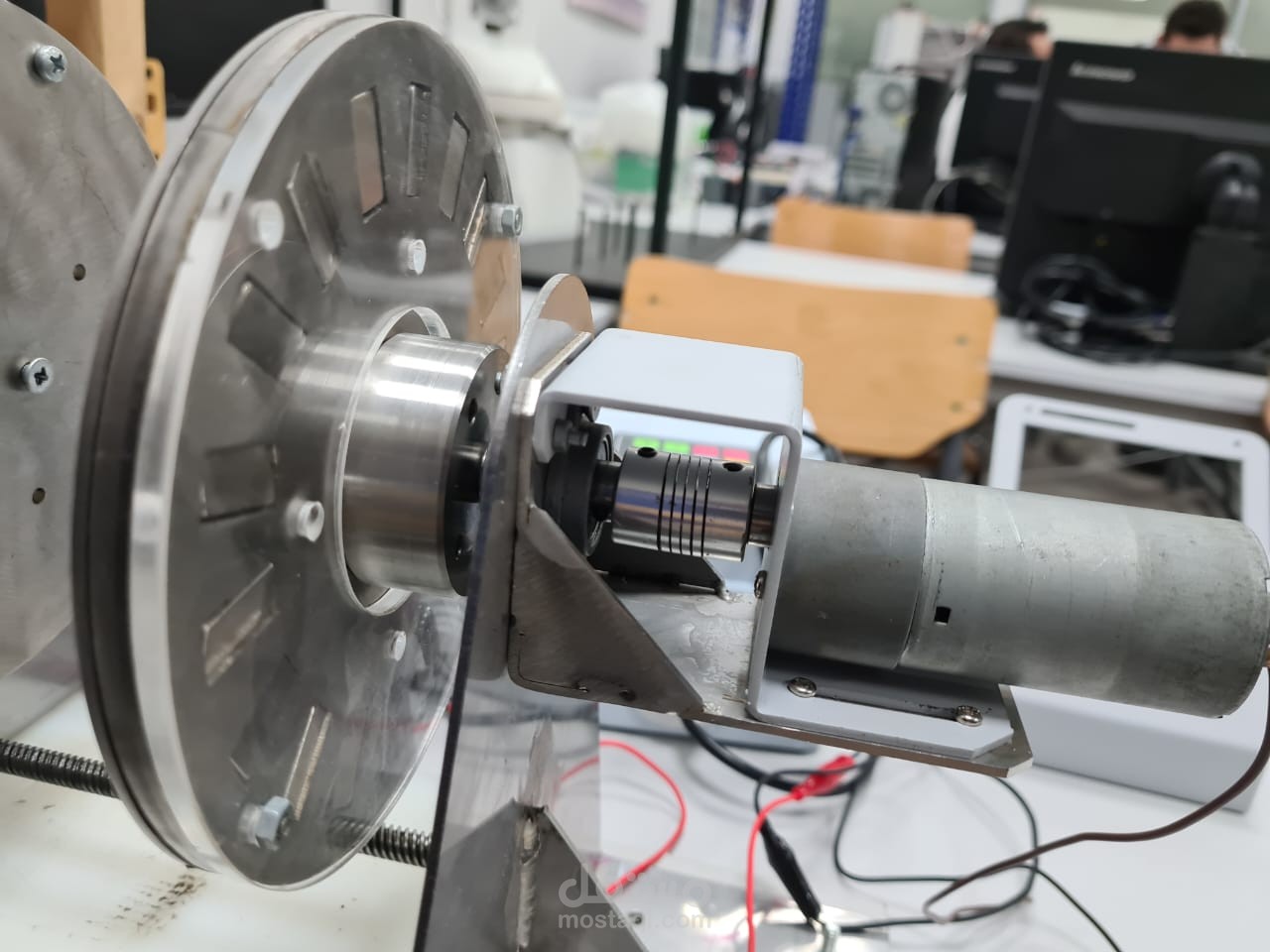

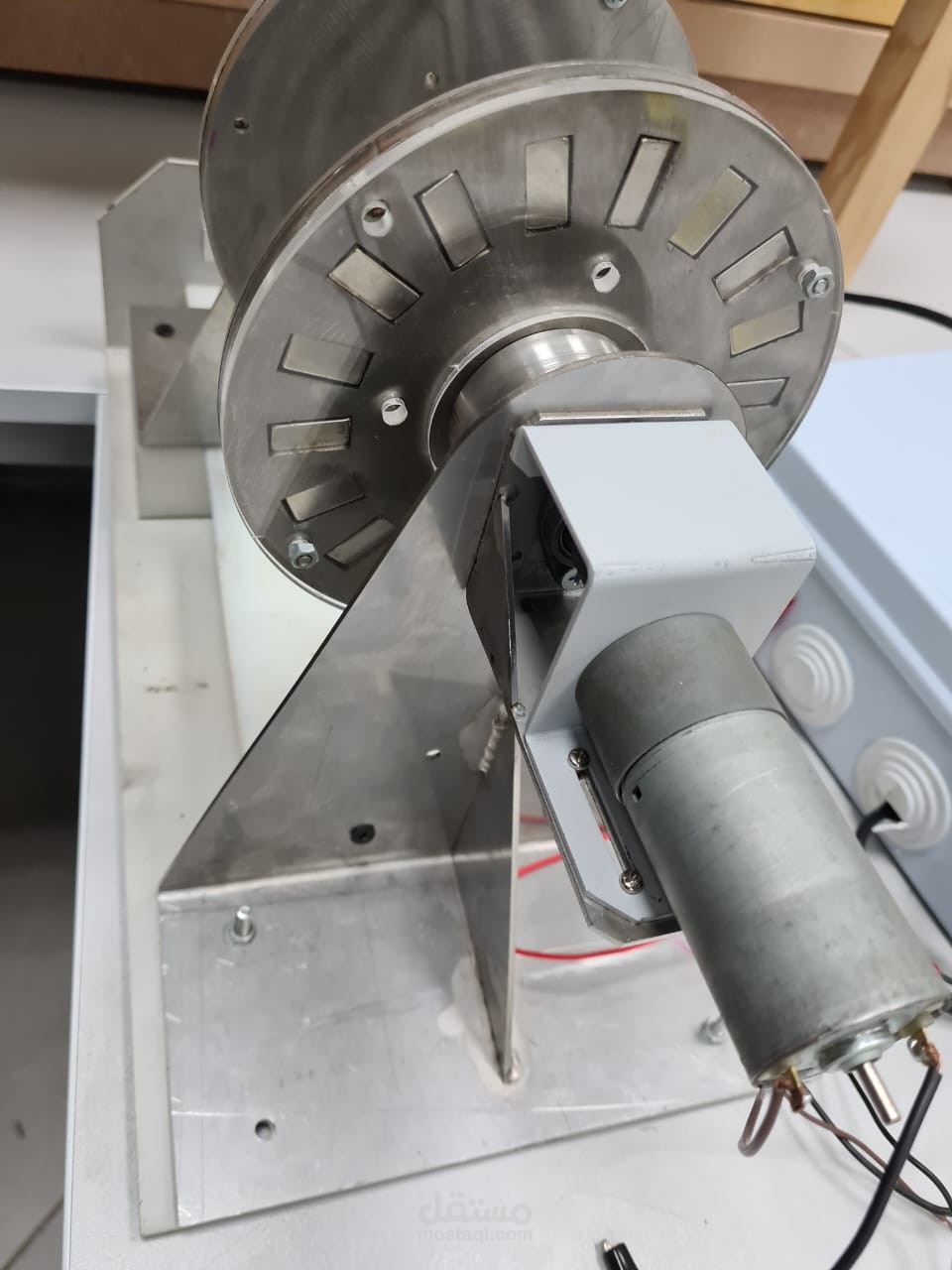

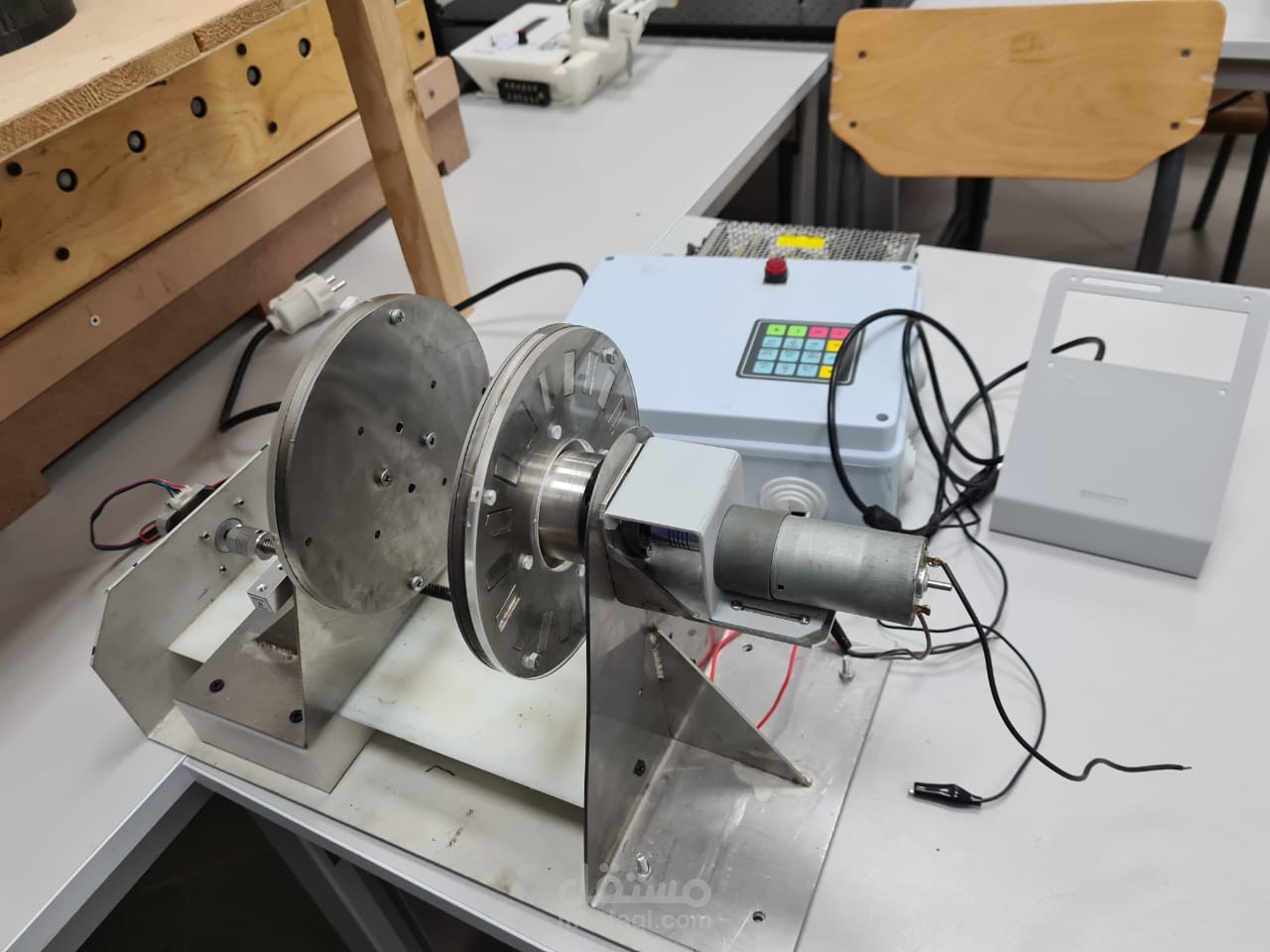

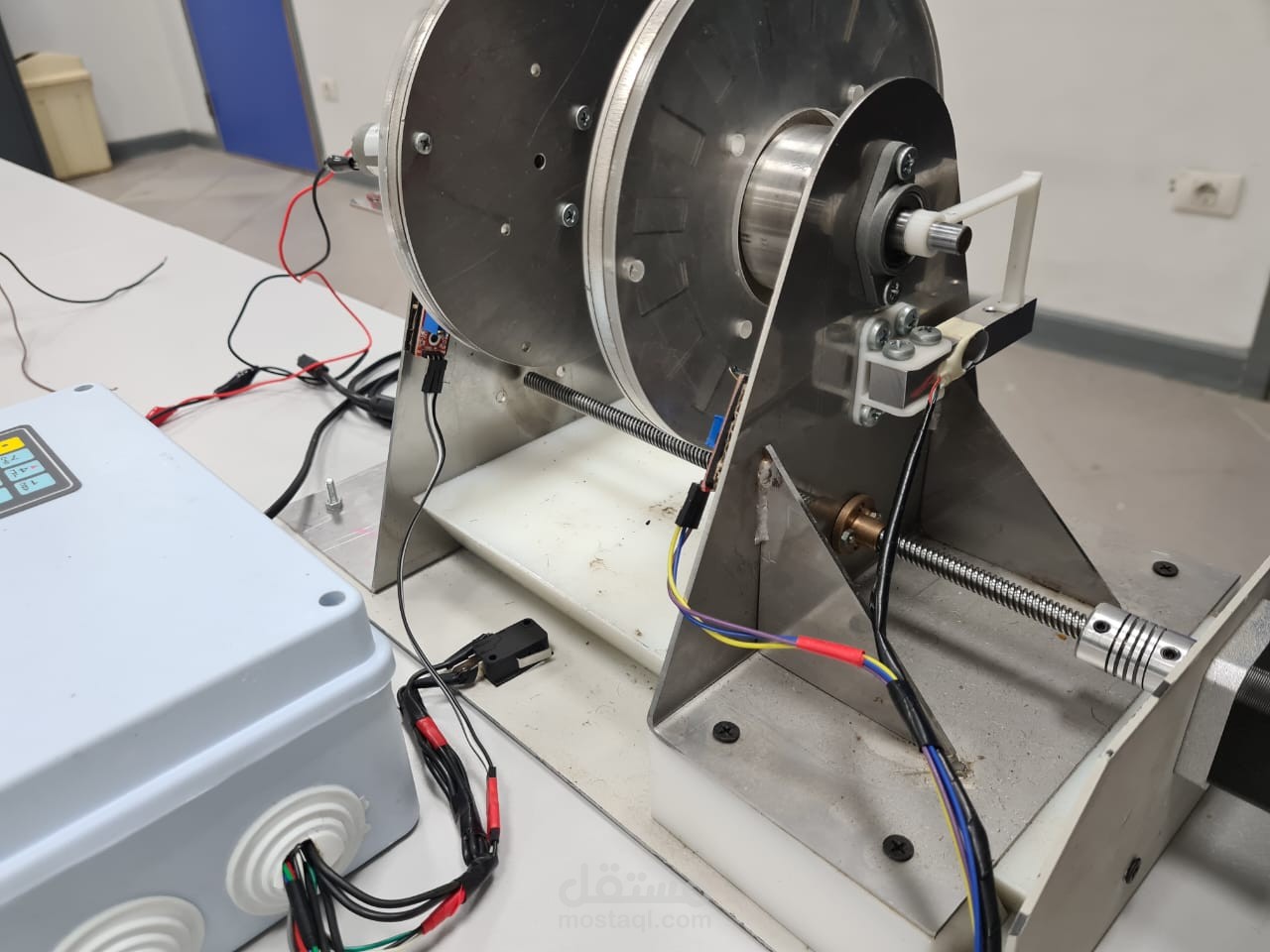

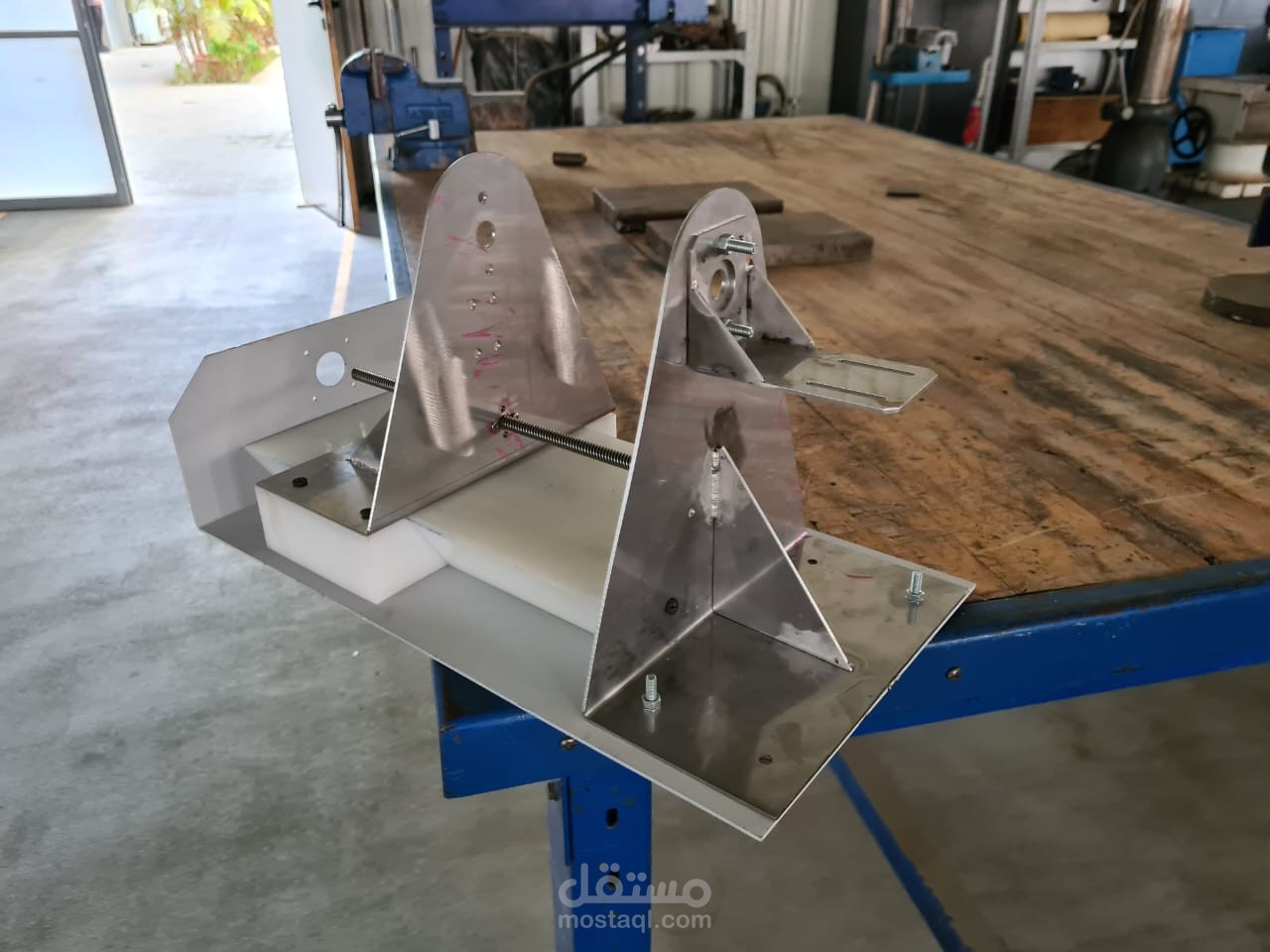

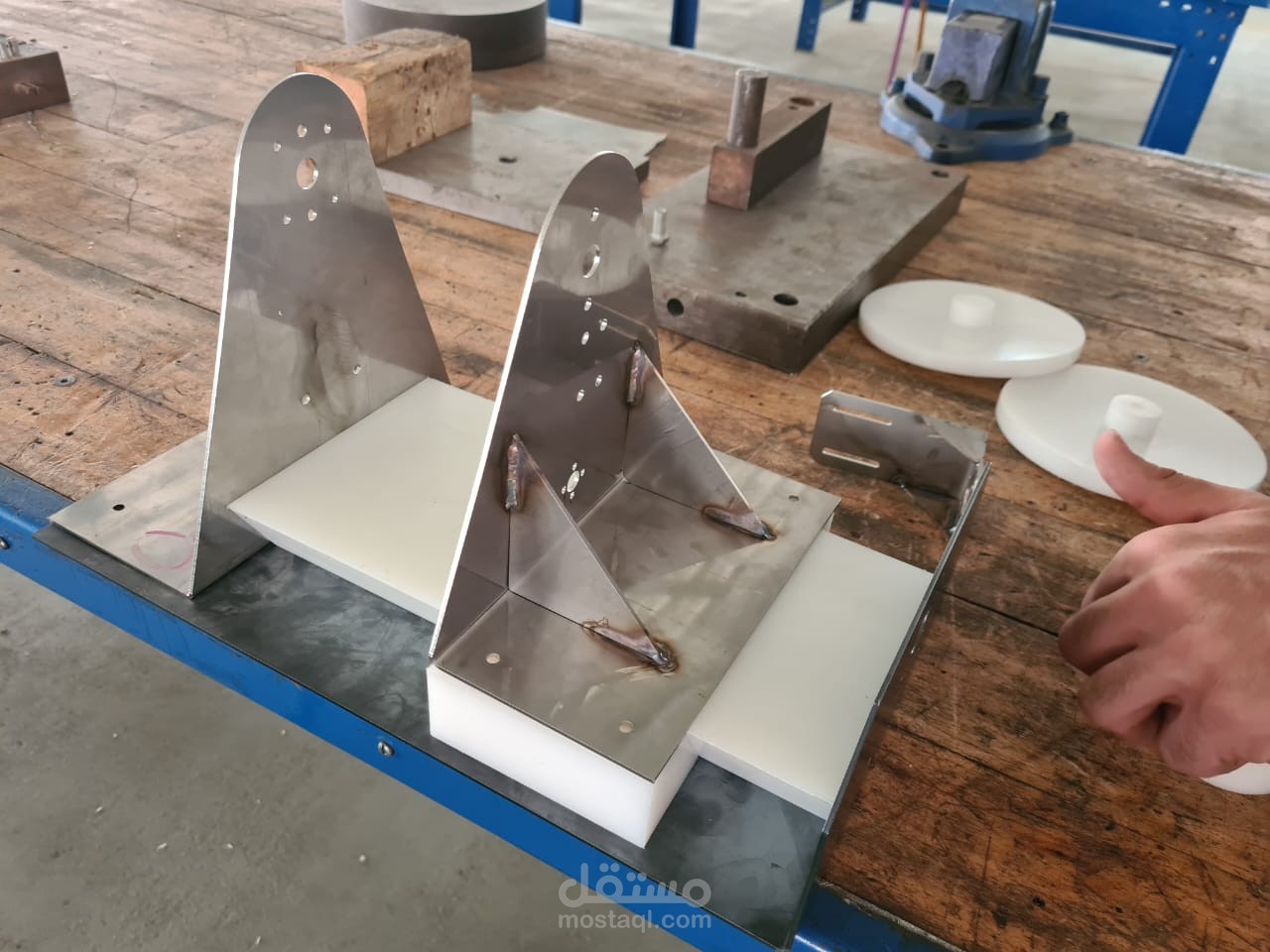

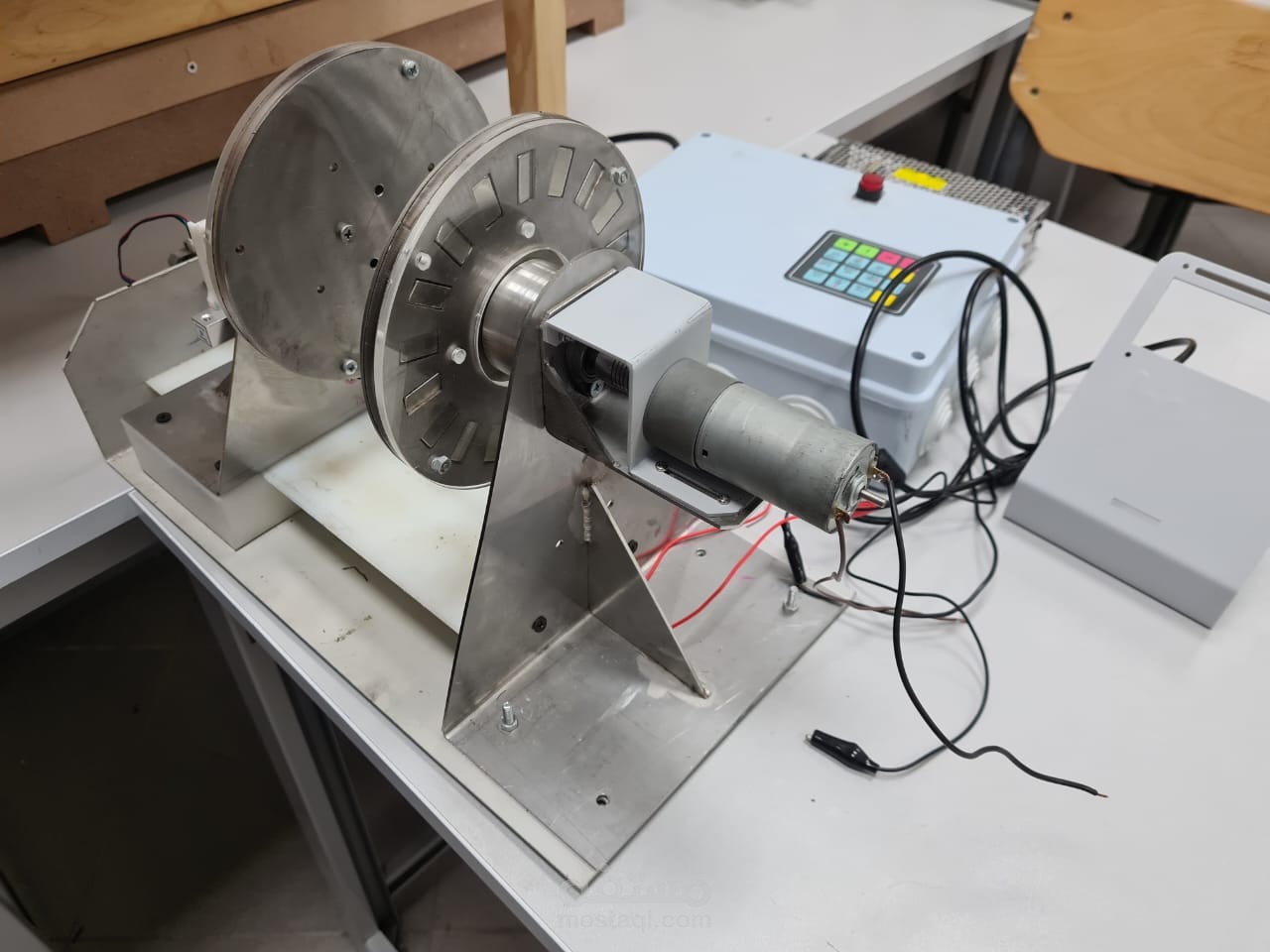

First the system is designed and modeled on Solidworks and then the designed parts is manufactured using Laser cutting machine , conventional Lathe , conventional milling machine ,and CNC bending machine. It was desired to measure the torque of a motor that wanted to be tested however applying so much force on the motor shaft may hurt the motor ,so I choosed the magnetic coupler to be added to the system to add the following : - Mechanical fusing. - No load starting. At the end the system succeded to acheive the desired objective to measure the motor torque , no load speed electrical power ,and efficiency.
