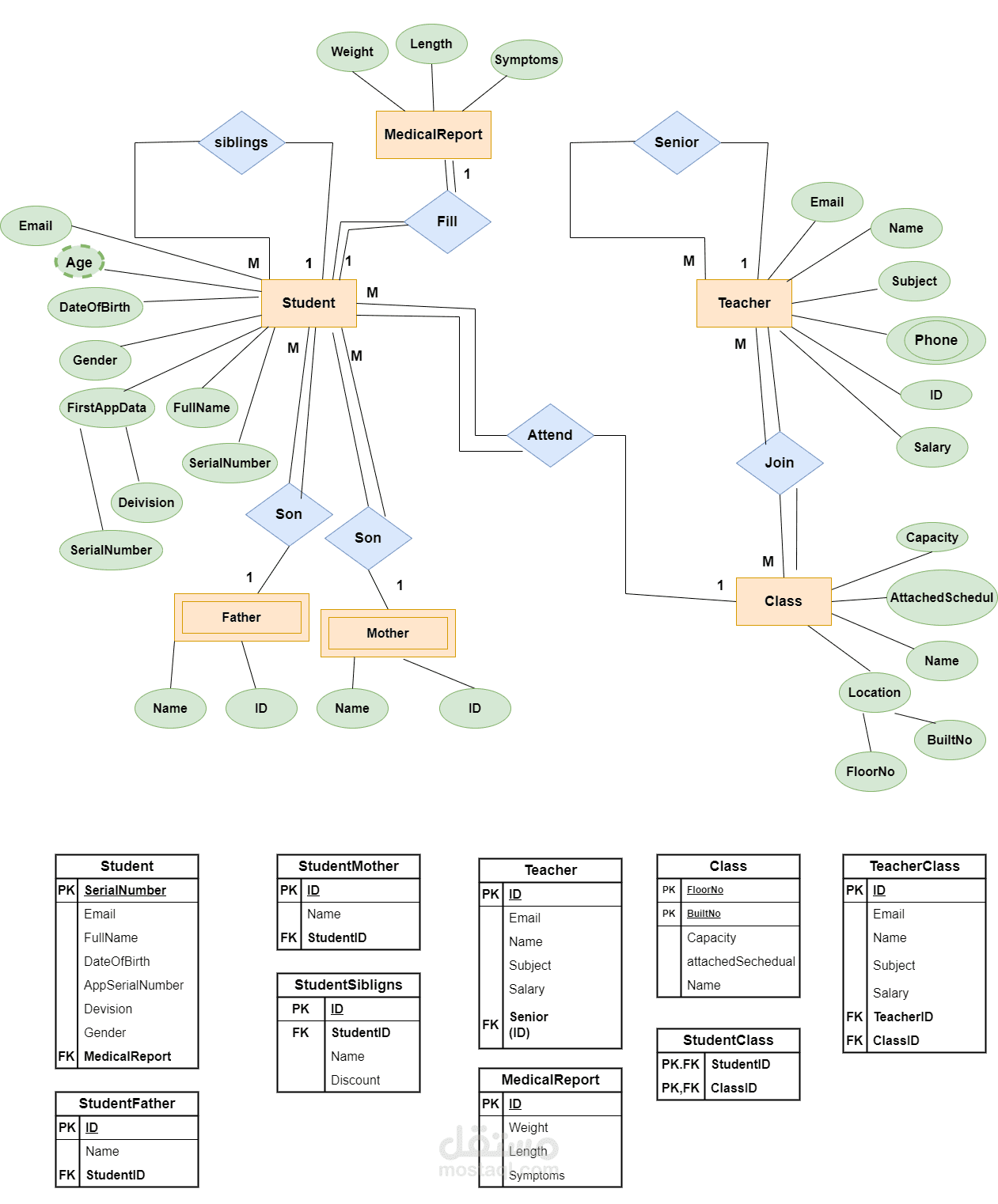

To design an Entity-Relationship Diagram (ERD) and map the database for the school system based on the provided information, we can identify the following entities and their relationships:

Entities:

Student

Medical Report

Sibling

Parent(Mother/Father)

Teacher

Subject Head (Senior Teacher)

Class

Attributes for each entity:

Student:

Serial Number (Primary Key)

Full Name

Age

Gender

Date of Birth

Completion Certificate Copy

Email

Division

Medical Report (FK)

Medical Report:

Report ID (Primary Key)

Weight

Length

Disease/Allergy Information

Sibling:

Sibling ID (Primary Key)

Student ID(FK)

Name

Discount

Parent:

Parent ID (Primary Key)

Parent Name

Relationship (Father/Mother)

Student Serial Number (Foreign Key to Student entity)

Teacher:

Teacher ID (Primary Key)

Name

Subject

Phone Number

Email Address

Monthly Salary

Subject Head (FK Student ID)

Class:

Class Name

Location (Building No(PK), Floor No(PK))

Class Capacity

Schedule

Relationships:

Each Student has one Medical Report. (One-to-One relationship)

Each Student belongs to one Division, but a Division can have many Students. (One-to-Many relationship)

Some Students may have Siblings in the school, leading to a Sibling entity. (Many-to-Many relationship, resolved with an associative entity Sibling)

Each Student has two Parents, but a Parent can have multiple Students. (One-to-Many relationship)

Each Teacher is associated with one Class, but a Class can have multiple Teachers. (Many-to-Many relationship, resolved with an associative entity Teacher_Class)

There is a Subject Head for each group of Teachers. (One-to-One relationship between Teacher and Subject Head)

Each Class is associated with one Division, and a Division can have multiple Classes. (One-to-Many relationship)
