Sizes separator machine

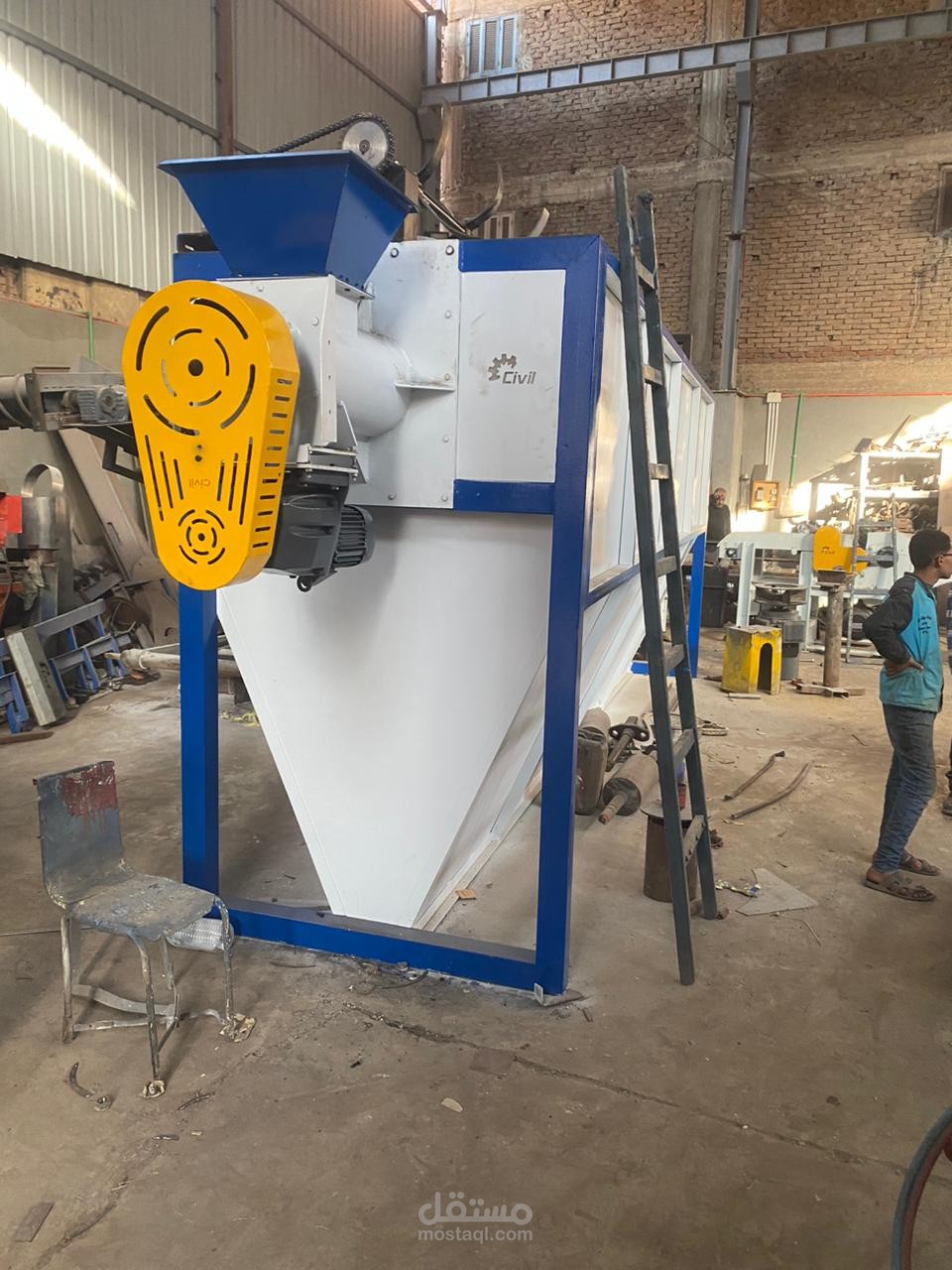

Design and implementation of a machine for separating and classifying grains (It is also used in many applications).

Screens are installed on the rotating part of the machine with the required size according to the product used.

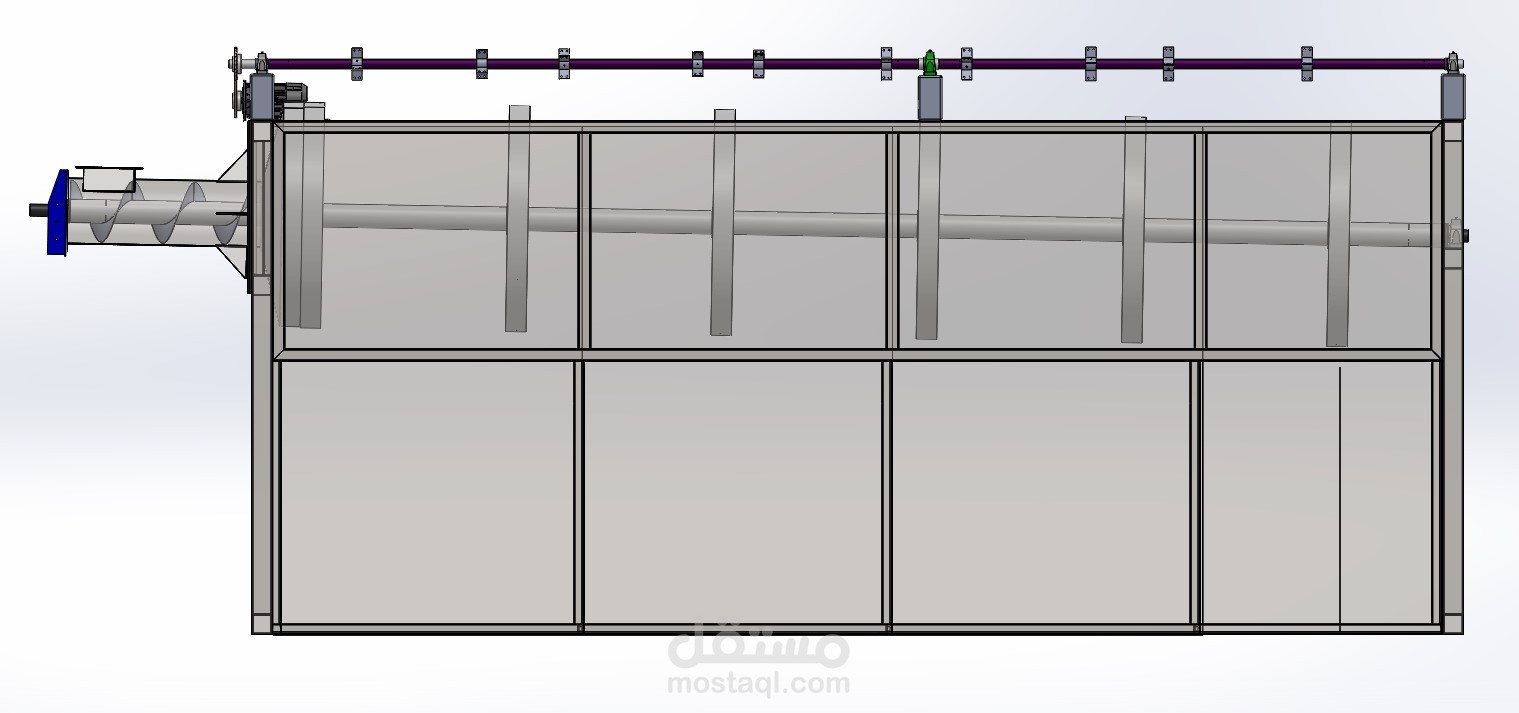

One of the important observations in the machine is the inclination of the rotating shaft to allow the movement of the product in the exit direction.

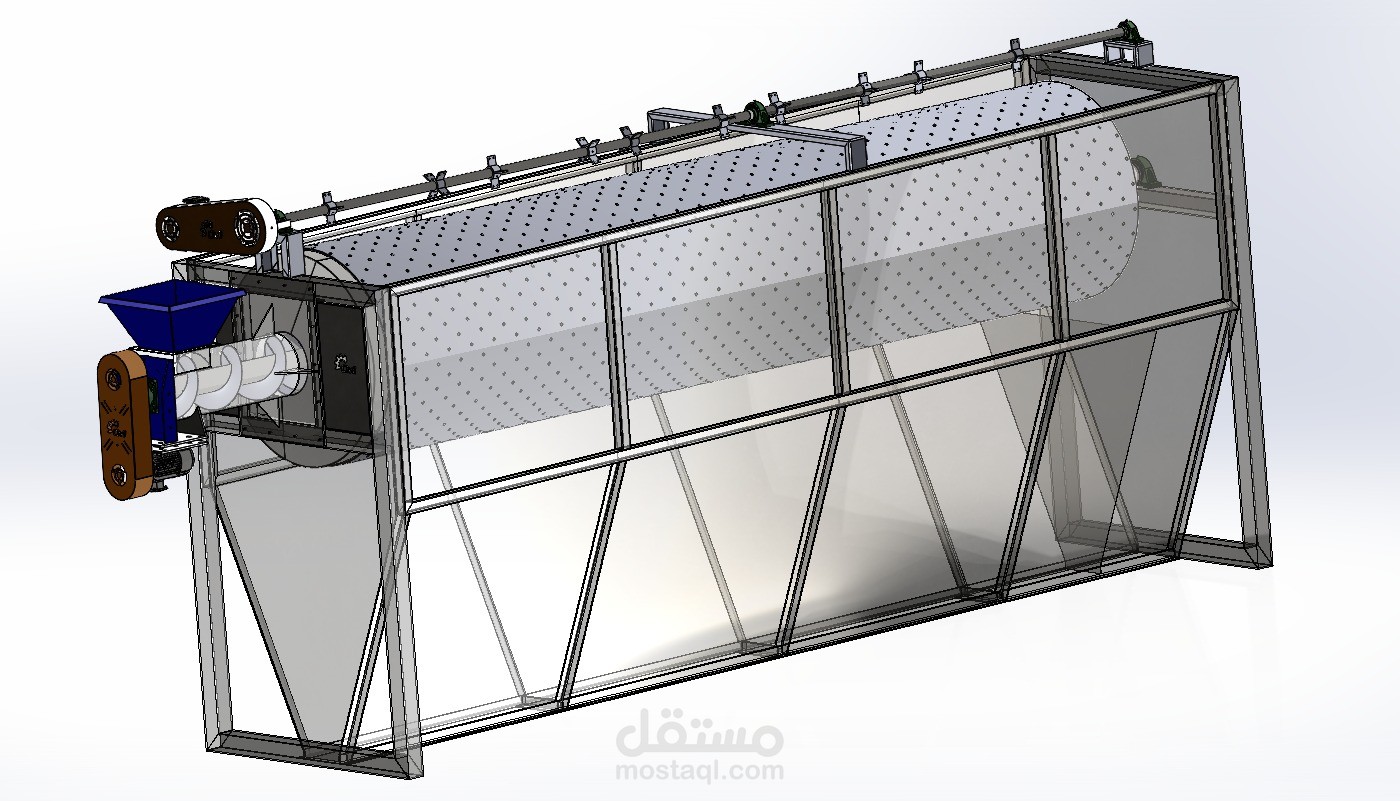

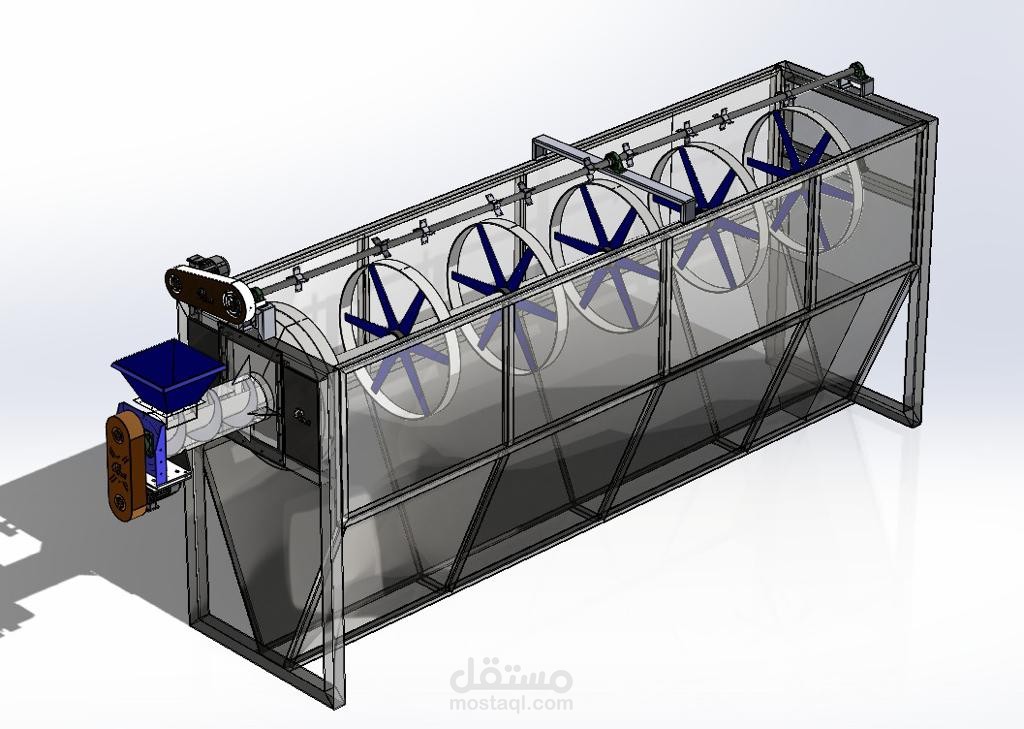

Designed using Solidworks

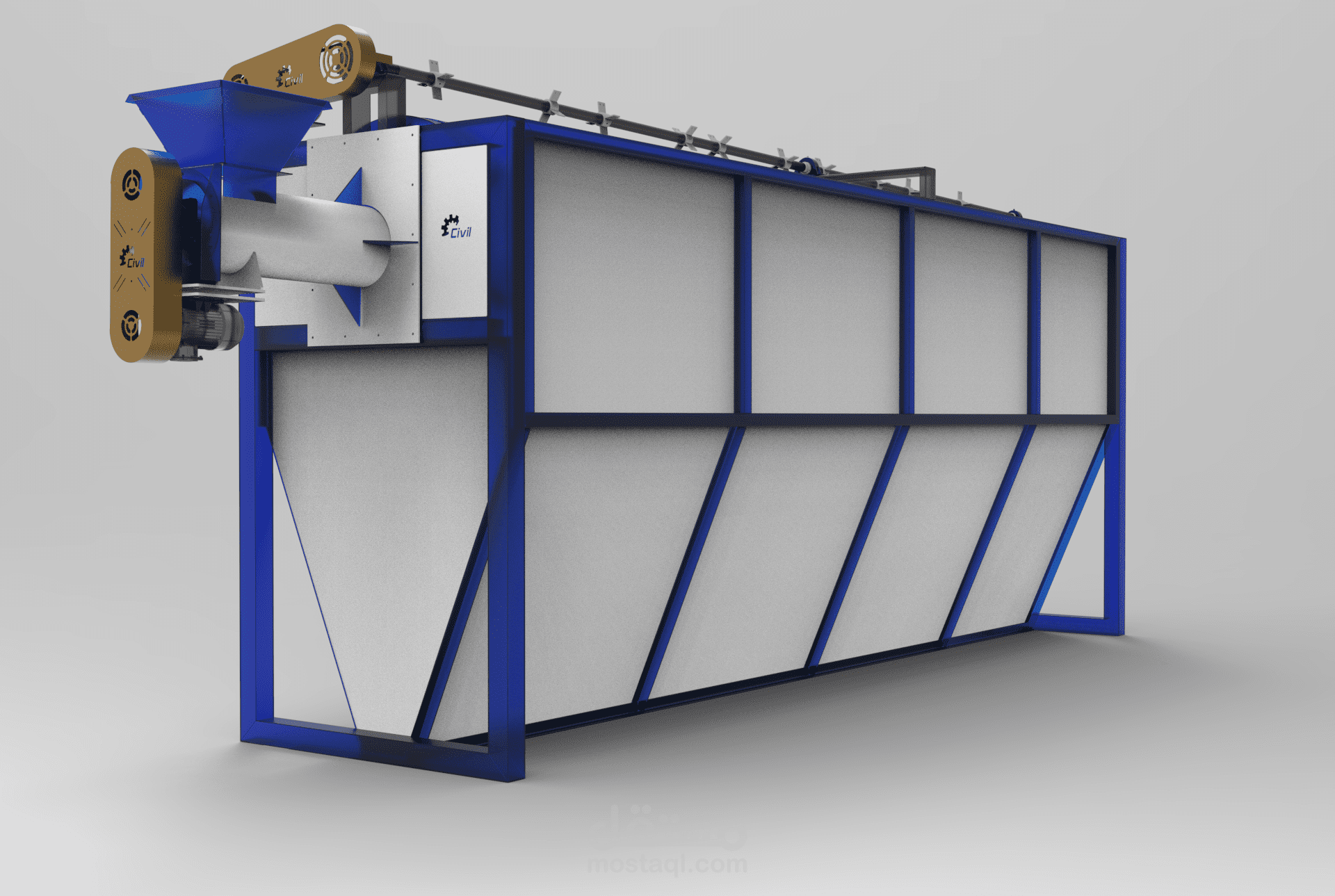

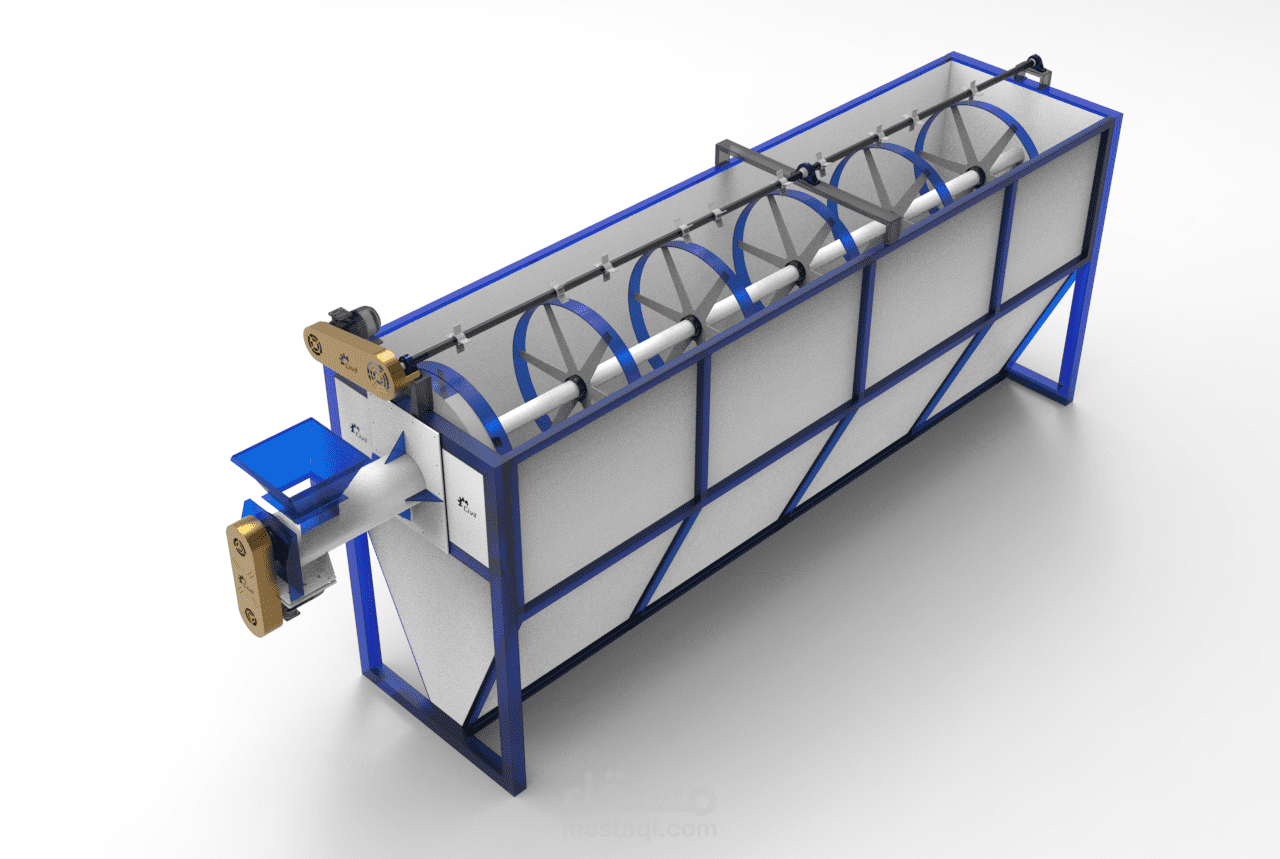

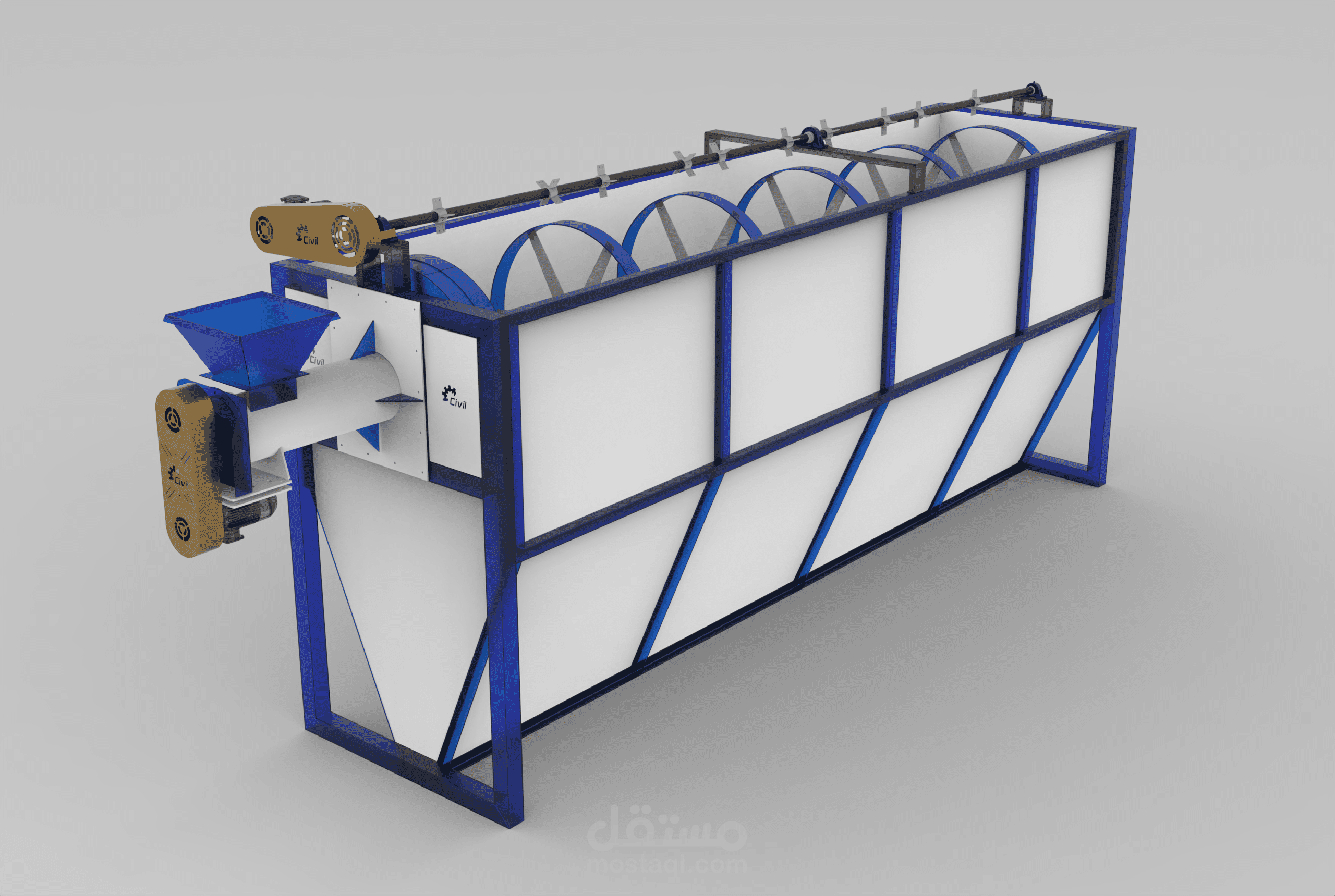

Rendered by Key-Shot.
