FIRE FIGHTING System for residential building

FIRE FIGHTING SYSTEMT

proposed building comprises of one (1) basement floors, one (1) ground floor and three (3) floor only. LOW-RISE BUILDING (<15m)

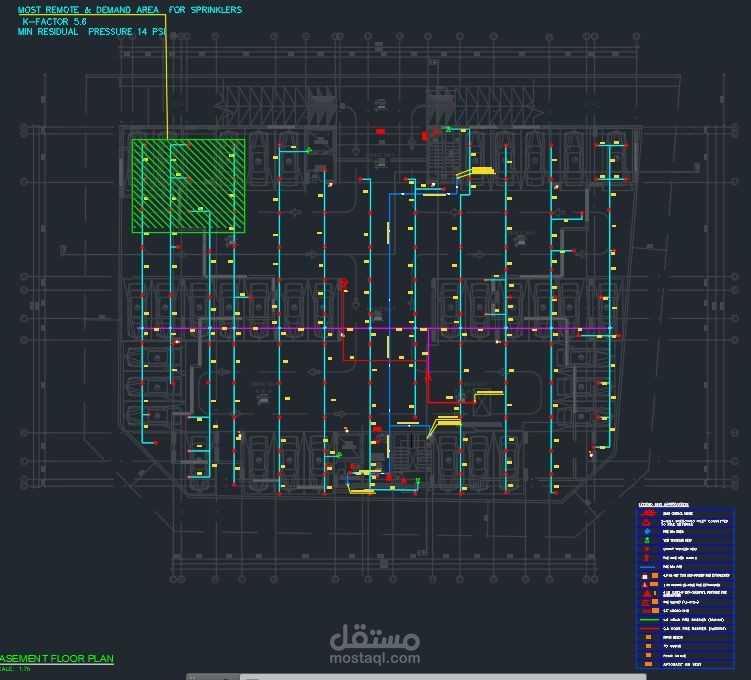

Basement level - (driveway, parking, garbage.) with area >1115 occupancy is protected with sprinkler system. In addition to sprinkler system, fire hose reel system is also provided for occupant use. The parking occupancy under nfpa 13, the hazard classification is ordinary hazard group ii. Hence, the design density of 0.2 gpm/ft2 is considered. As per the hydraulic calculation, the capacity of the

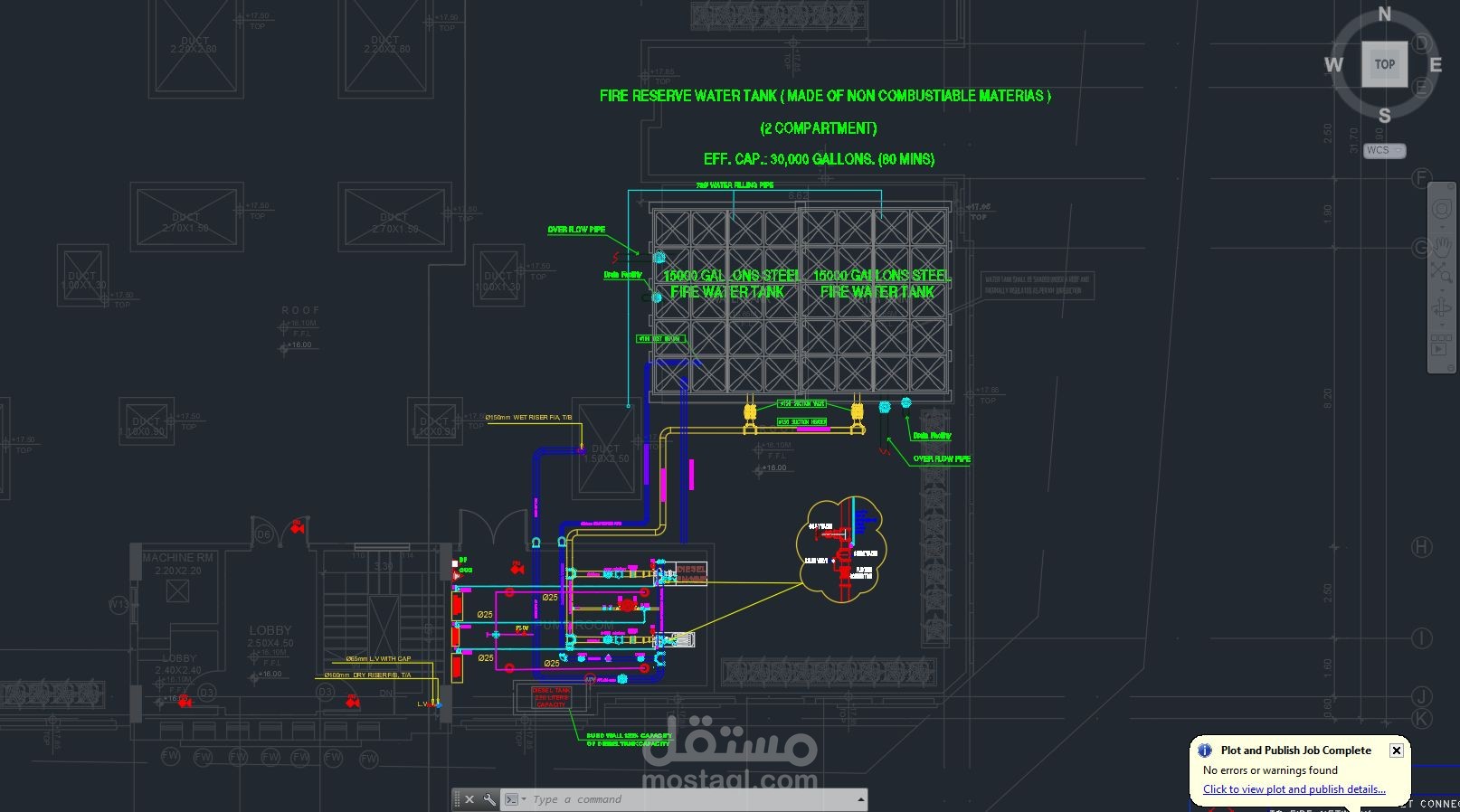

fire pump set is 500gpm @ 5 bar

Ground floor level & typical floor with low rise buildings is residential Occupancy

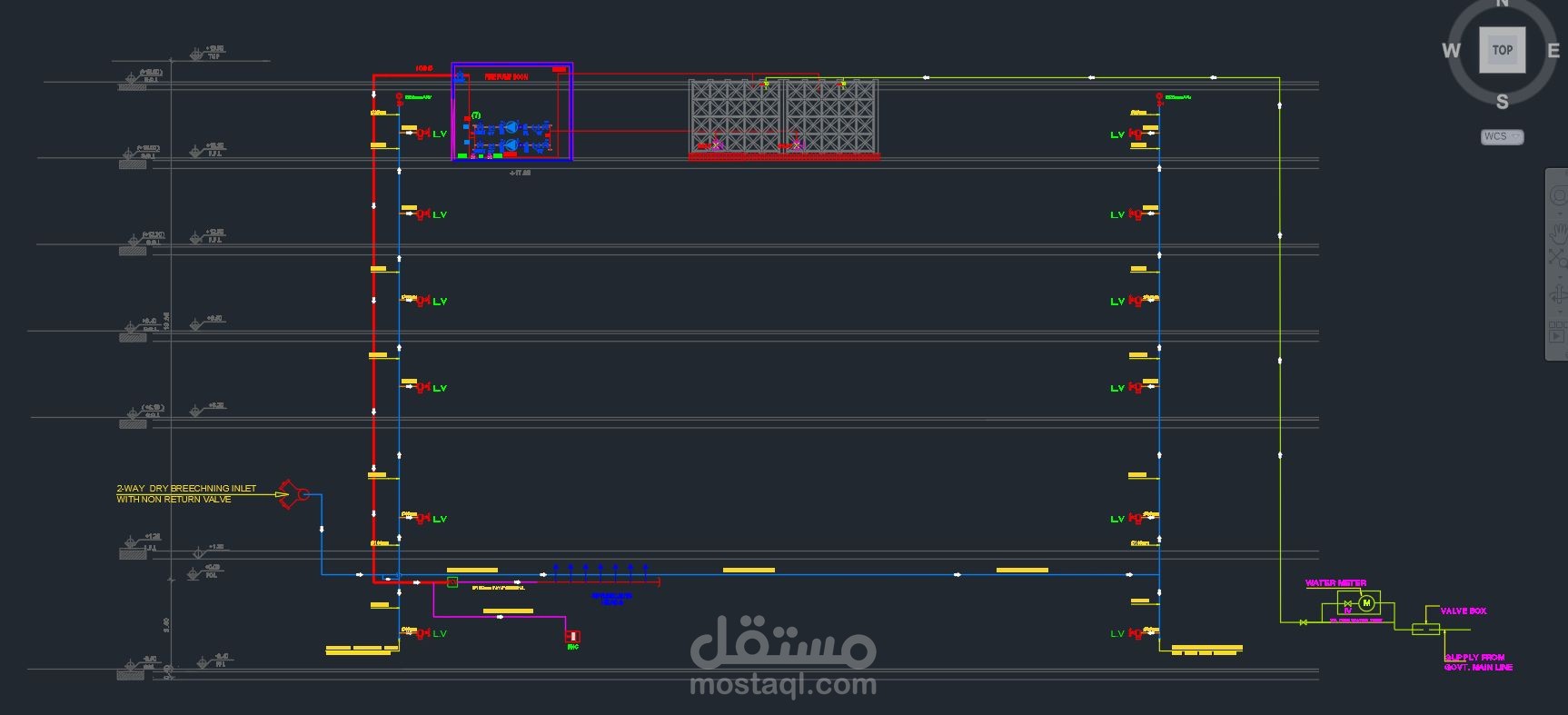

is fully protected with dry stand pipe system and portable fire Extinguisher

Substation on ground floor non water bases system I.E. clean agent or aerosol system is provided
