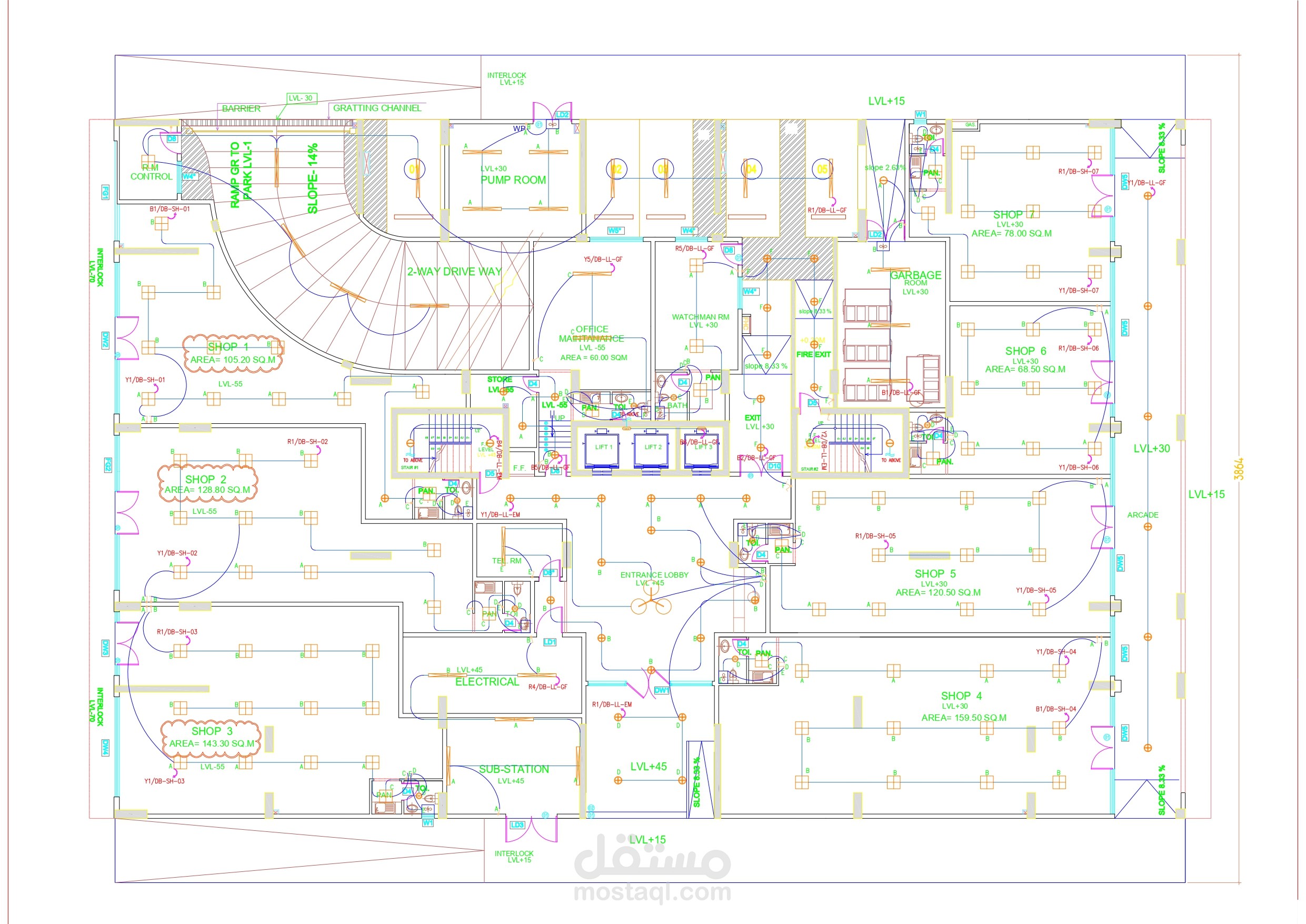

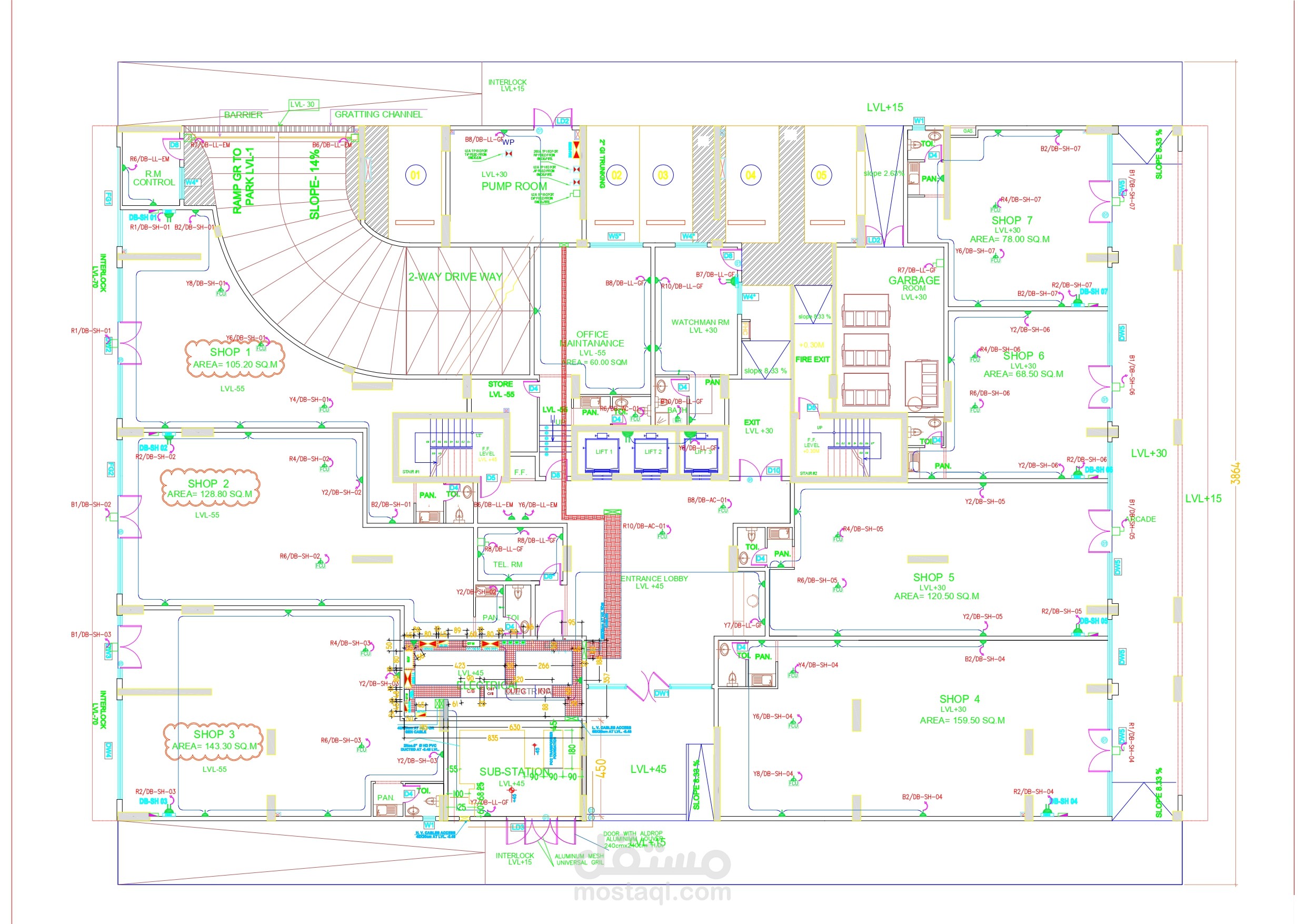

RESIDENTIAL & COMMERCIAL BUILDING (G+2P+5TYP+ROOF)

The building is connected to 1500 KVA transformer with total connected load 1300 KW.

2500A LV-panel installed in electrical room with 475Kvar capacitor bank.

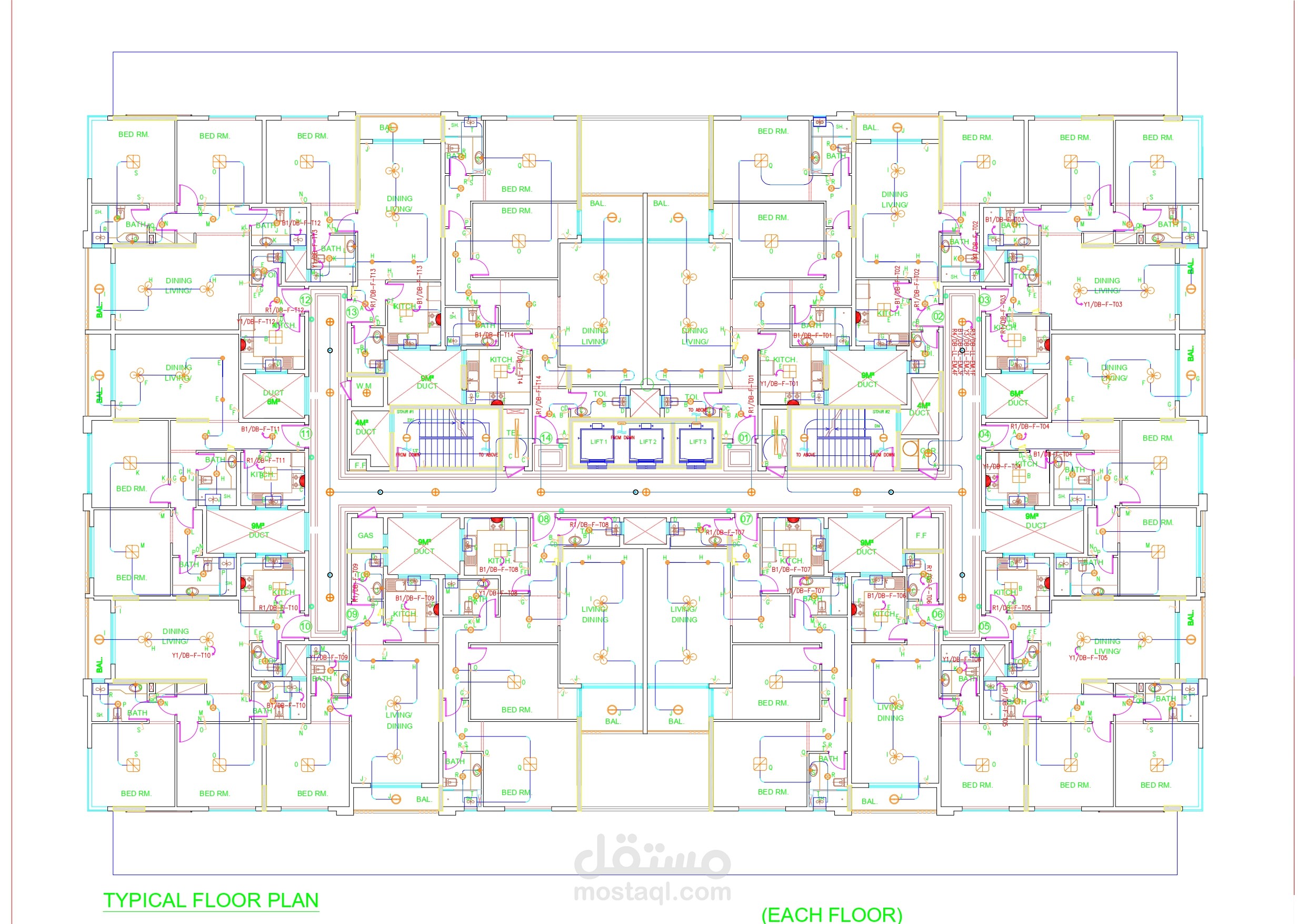

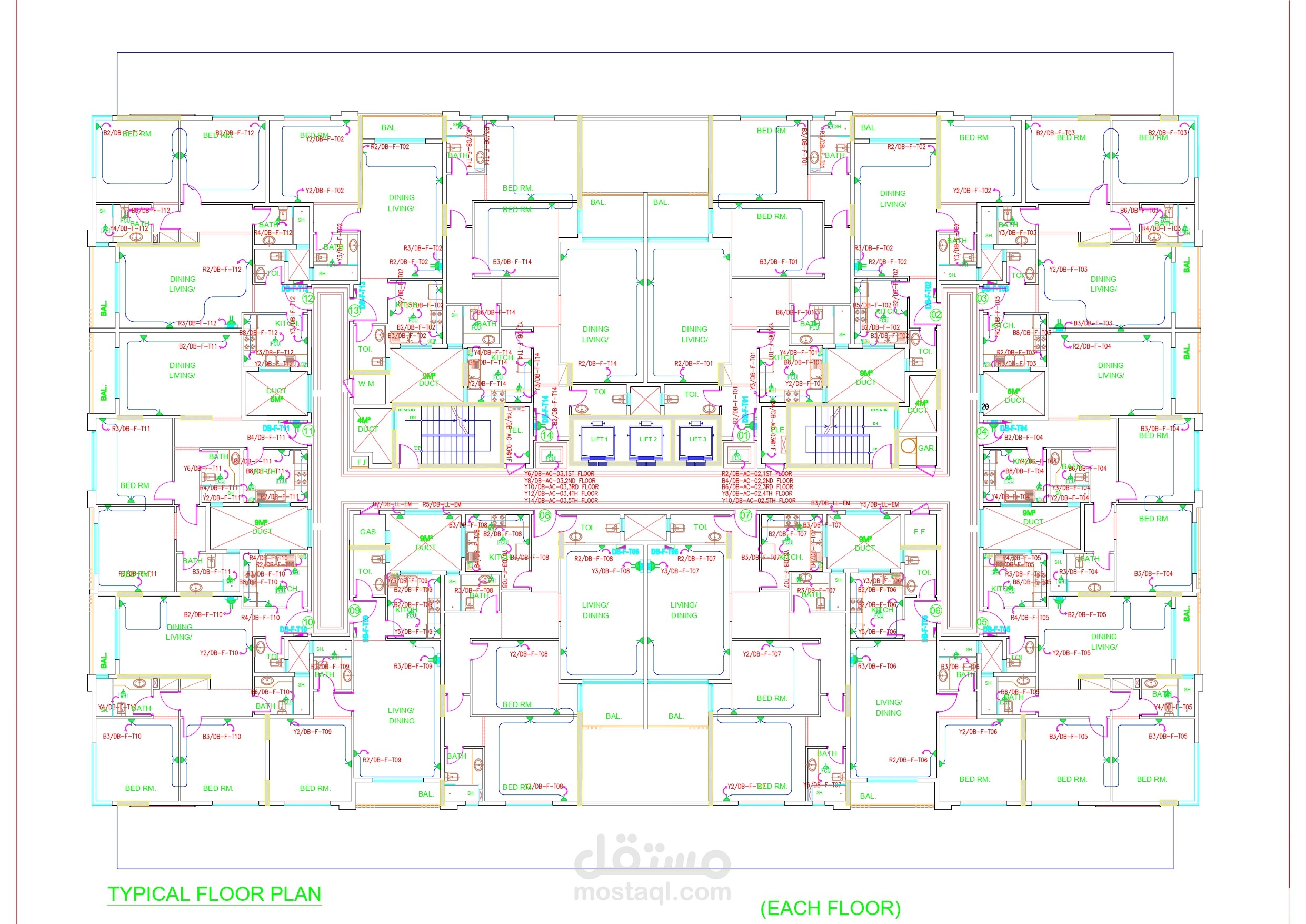

Each typical floor has SMDB which is connected with main LV-panel by separate cable.

All electrical work has been done as /Sharjah water and electricity authority/.
