HVAC DESIGN FOR A MOSQUE

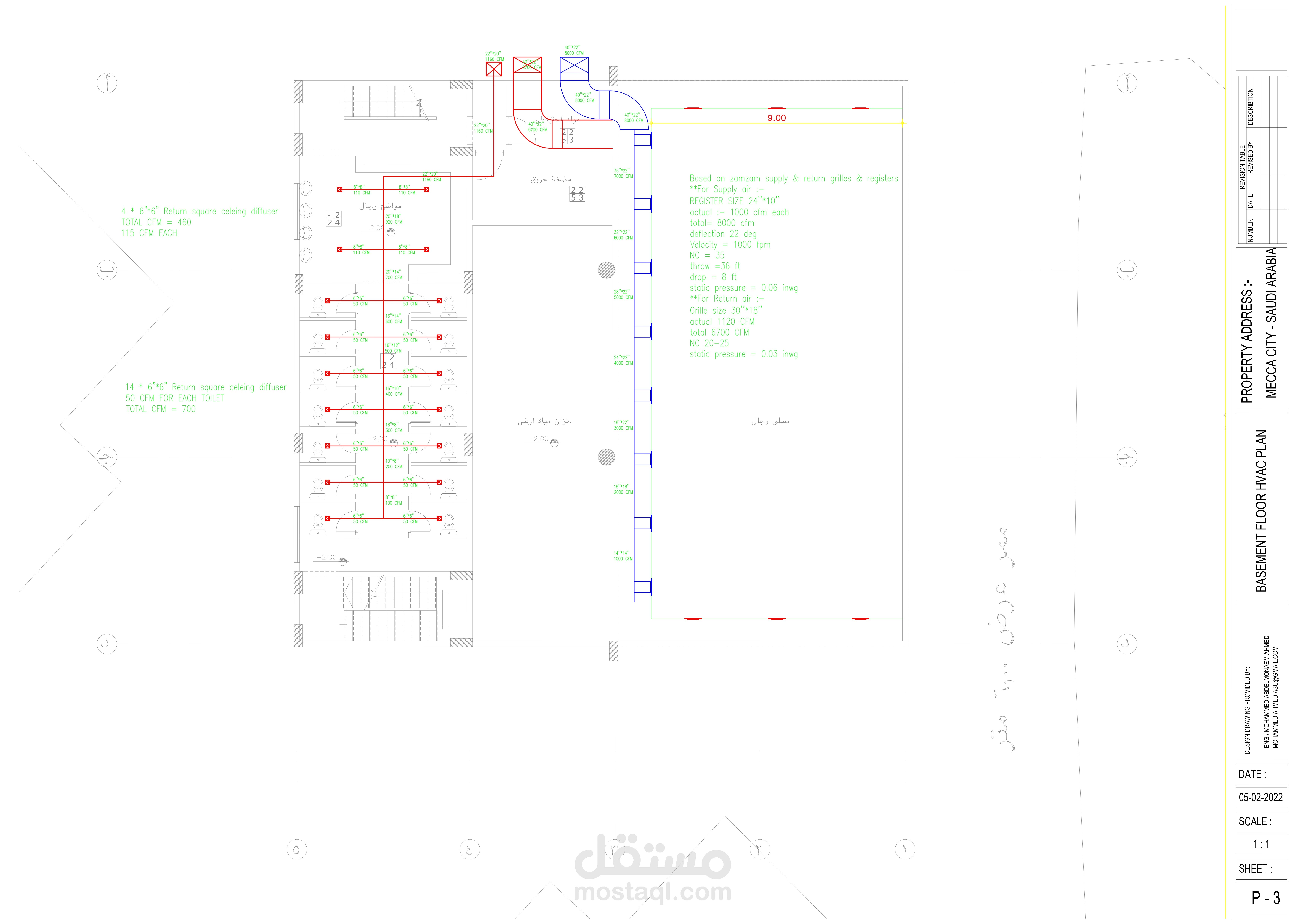

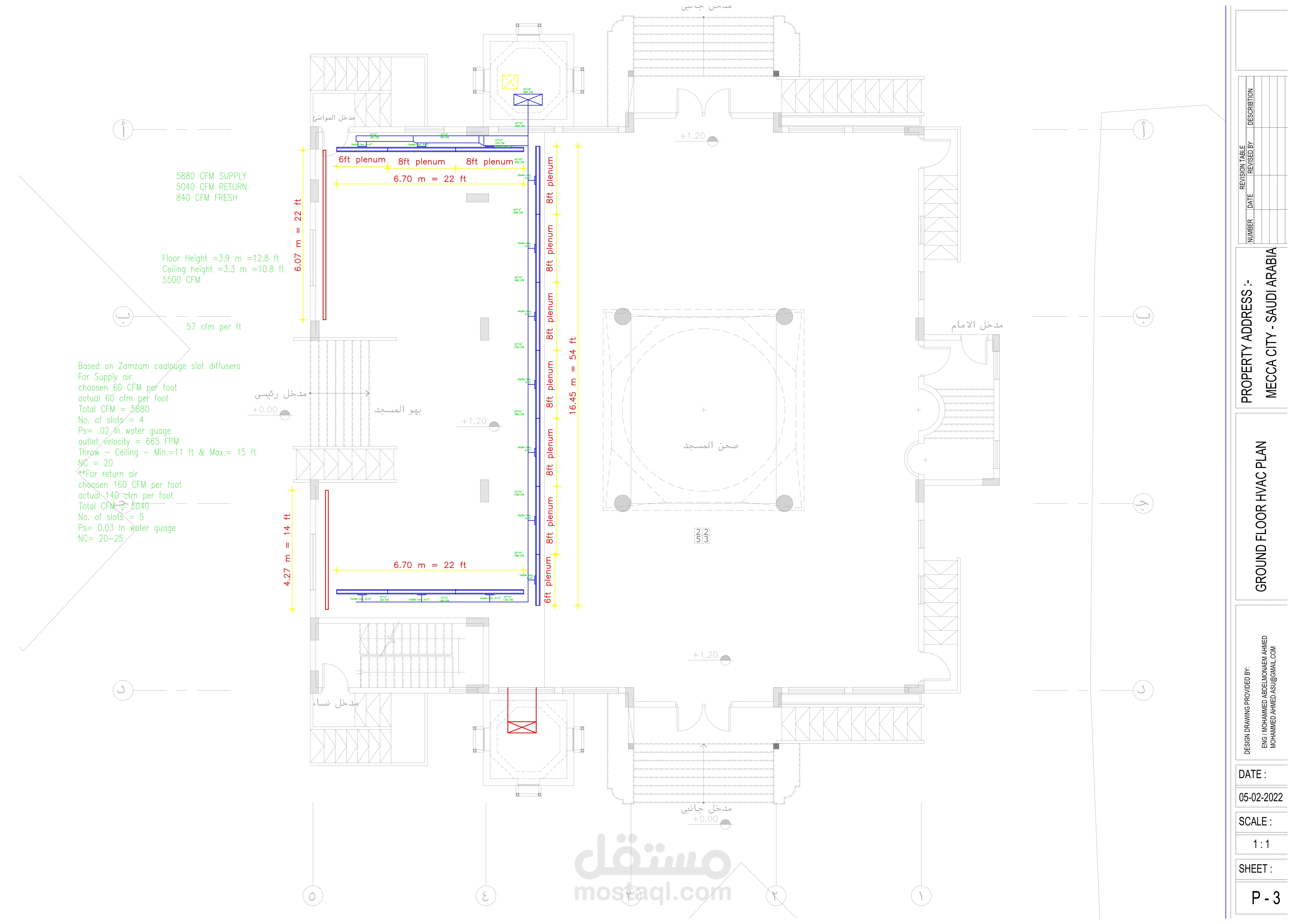

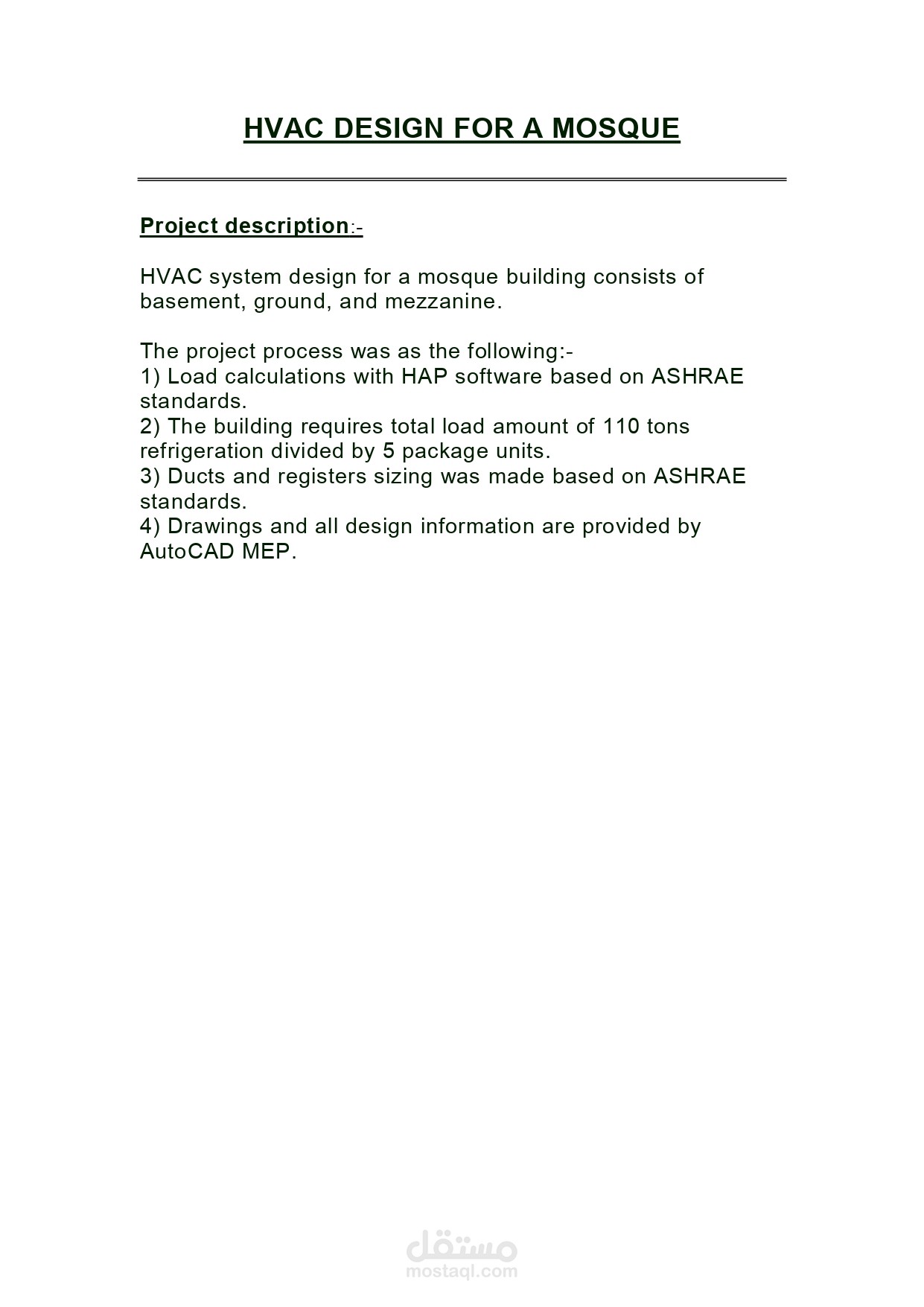

HVAC system design for a mosque building consists of basement, ground, mezzanine:

The project process was as the following :-

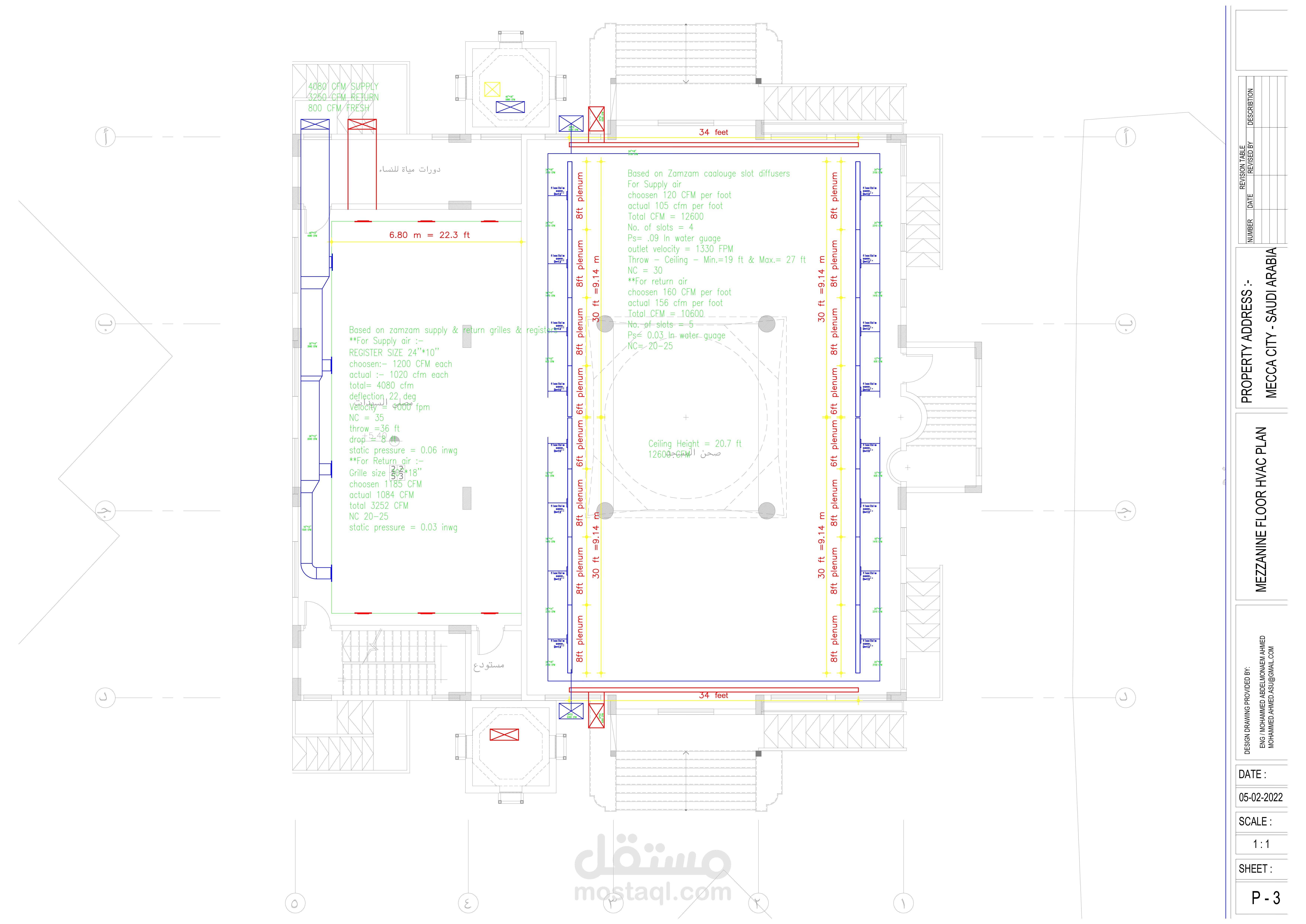

1) load calculations with HAP software based on ASHRAE standards

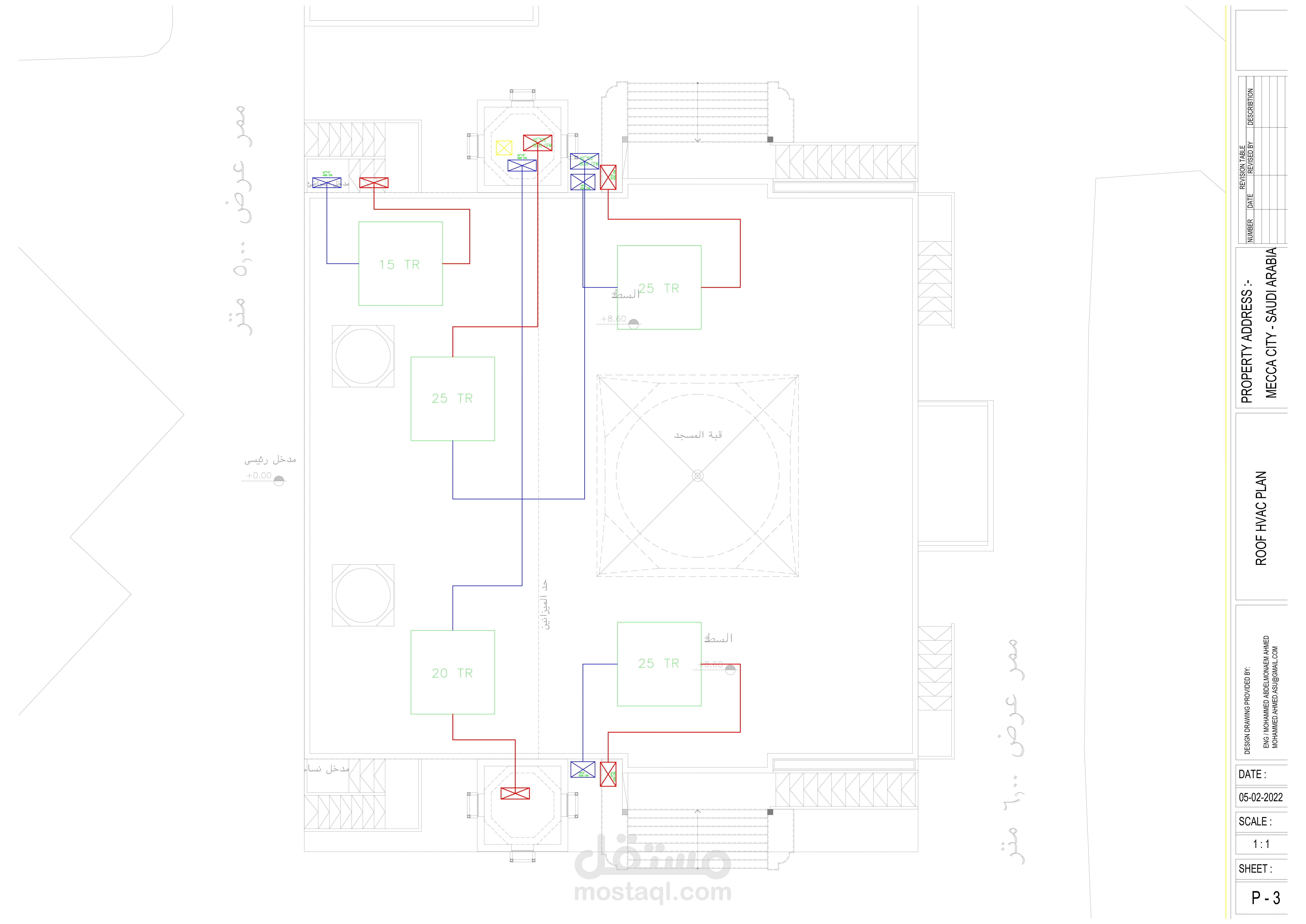

2) The building requires total load amount of 110 tons refrigeration divided by 5 package units.

3) Ducts and registers sizing was made based on ASHRAE standards

4) Drawings and all design information are provided by AutoCAD MEP.
