Irregular Sequence Counting Machine with Memory Digit Sequence Reading And MAX Comparator Circuit

تفاصيل العمل

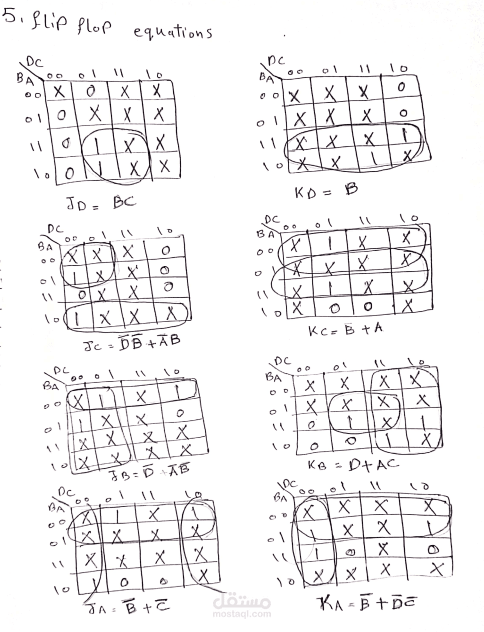

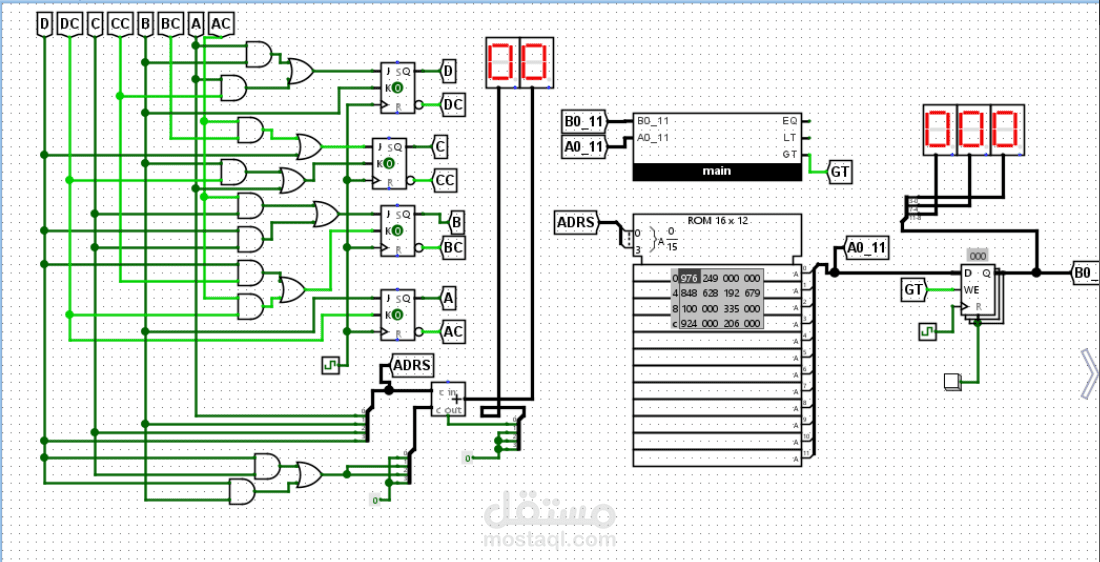

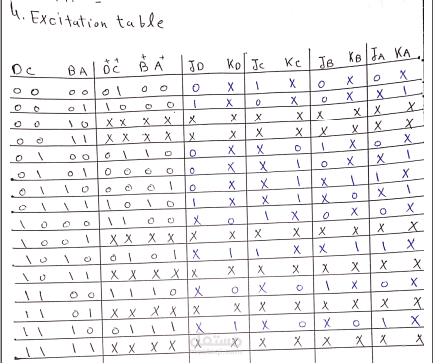

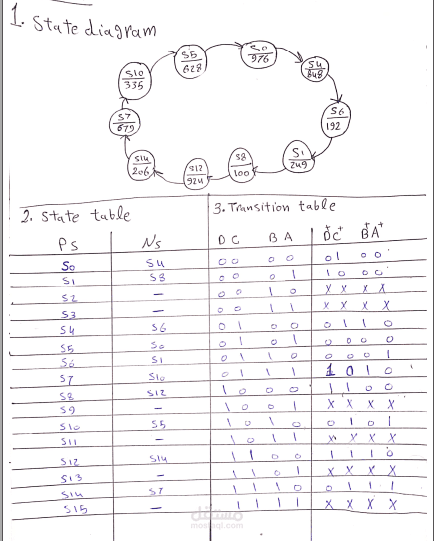

Is to design a sequential circuit that goes through a predefined 10 sequences (from 16 different sequences) and read a 4-digit number from the memory unit based on the state (taken to be the address). At the same time, the states can be

shown on the two 7-segmnet display as they change, and concurrently, the content of that same location in memory

.unit (the 4 digits) should be drawn and be directed to the comparator unit

The comparator unit compares the MAX register output with the recently pulled out data from the memory unit, and the output of the comparator should be saved again in MAX register on the next clock pulse. Always the output of the MAX

.register is shown on the four 7-Segment units
