Using, Arduino NANO device
Convert Analogue input Vin into PWM output, using as reference
input voltage range to be converted into % PWM (Vout) as per the Spec provided.
(using a lookup table or by means of some math formula)
Complication:
The conversion table can be manipulated in proportion to two more analogue inputs,
for example as set by two potentiometers POT1 and POT2.
So that the output PWM output signal "steepness" and "shift" can be adjusted by POT1 and POT 2.

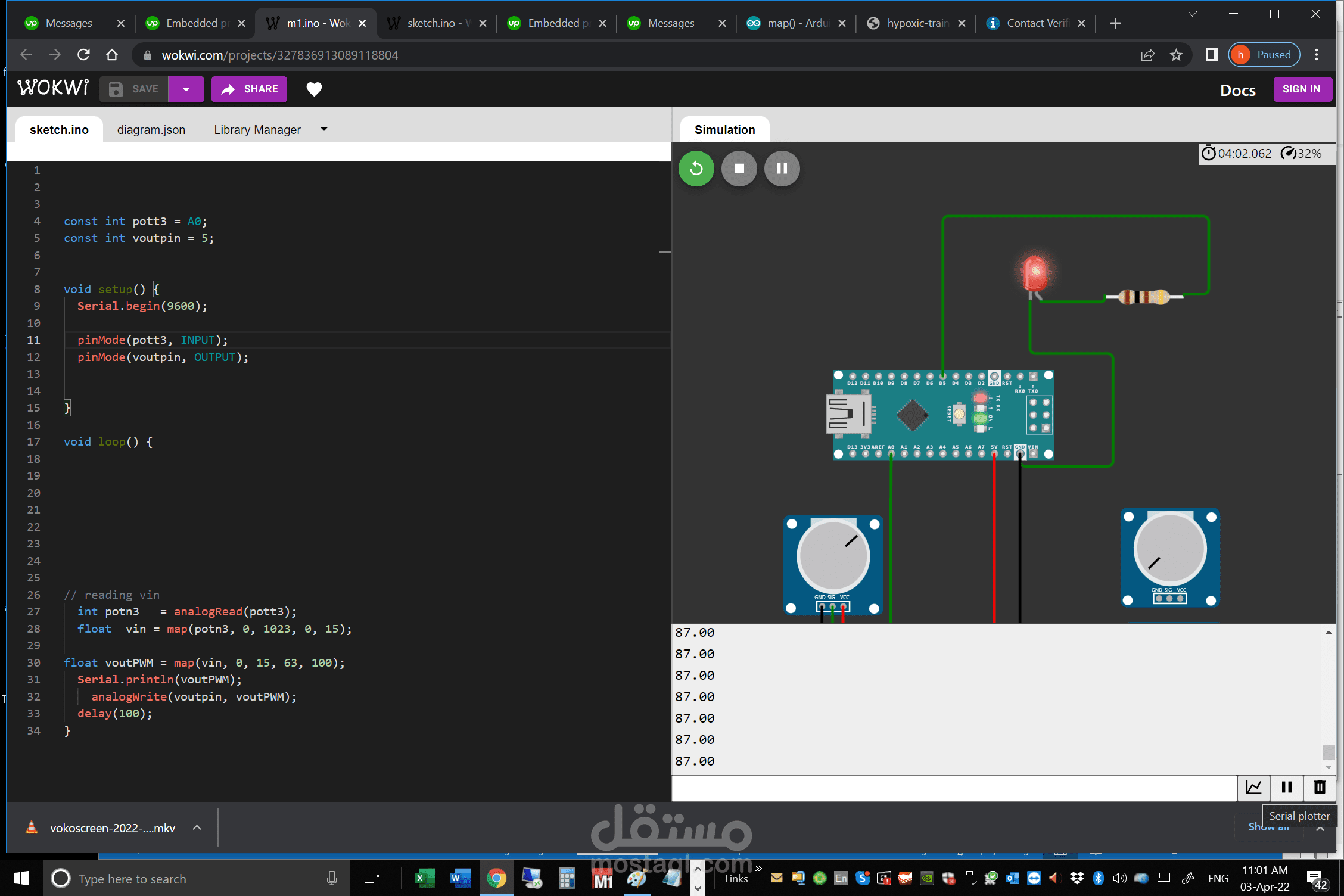

For testing and validation the Input signal could be mimicked by a potentiometer. (POT3)
Code for Arduino Nano is validated and approved. Source code provided to us with a basic explanation should fine tuning will be required on our side.
