Medication Monitoring System

A reliable system to monitor the process of taking medications.

At first the system will get the current date/time from the Real Time Clock, so the device know the exact date and time.

Then the patient will choose how many medications will be taken(1 or 2 medications).

Then he will enter the time for taking it and number of pills for the medication 1 .

When it’s time to take medication 1 the alarm will go on until the patient press a button on the keypad.

The door of medication 1 will open using micro servo motor .

There is IR sensor inside the compartment of medication 1 to sense the medication has moved or not.

The patient has to conform taking the medication if yes number of pills for medication 1 will reduce by 1 and will update the Thingspeak cloud.

After conforming the door of the compartment will close using micro servo motor.

The same process goes with medication 2.

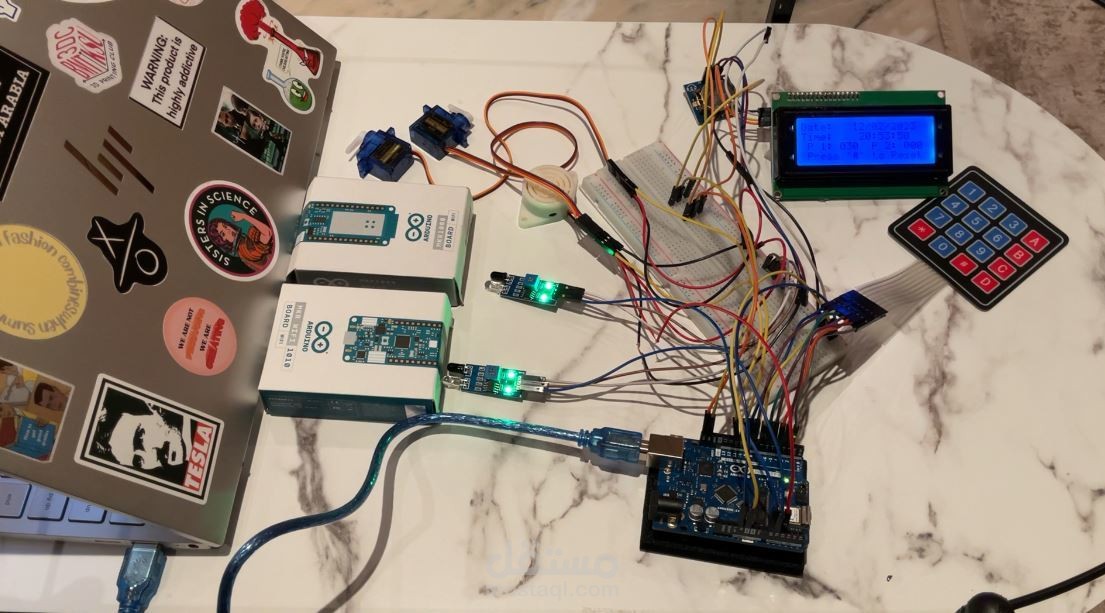

Components:-

1) Arduino Uno Wi-Fi.

2) IR Sensors.

3) LCD Display.

4) Servo motors

5) Buzzer.

6) Keypad.

7) Passive components like Resistors, Switches, Capacitors, and LEDs.

Developed using C language in Arduino IDE.
