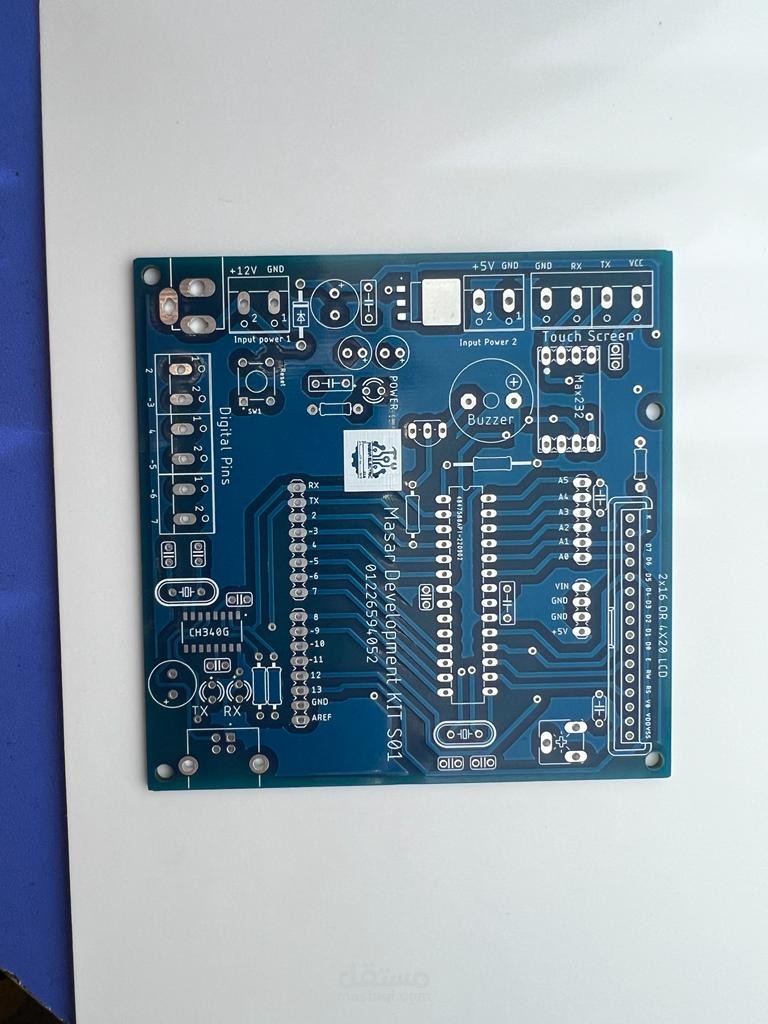

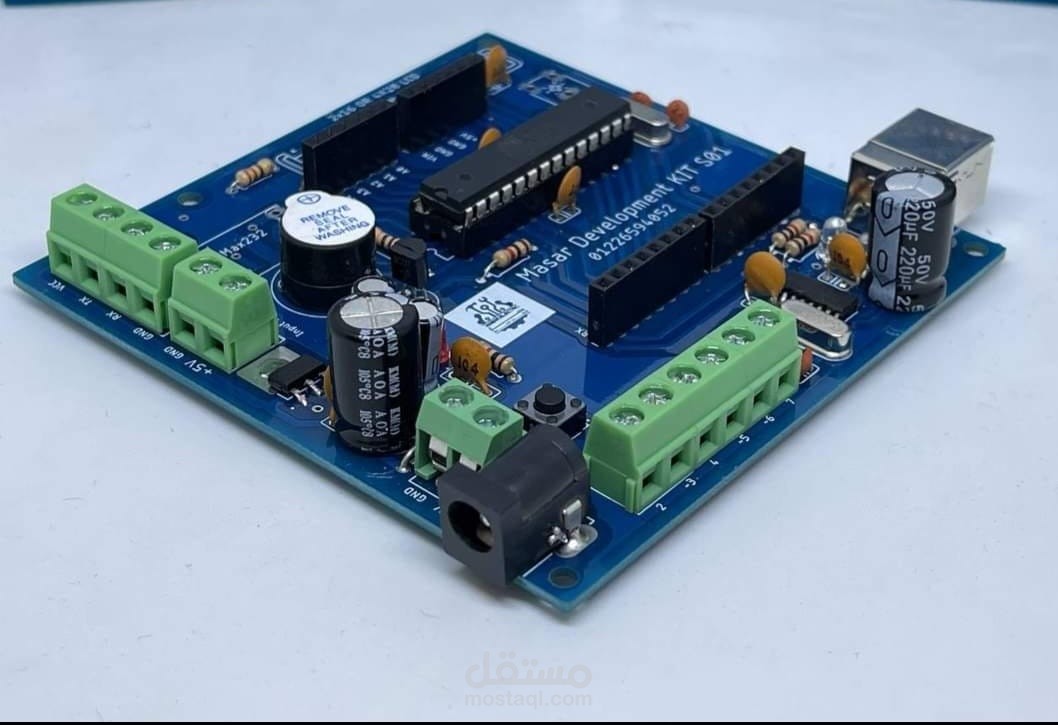

Modified Arduino Uno Kit

is a programmable board based on Atmega328PU

Microcontroller same as Arduino Uno so it is equivalent to Arduino Uno board

The board has the same Input output pins [6 Analog Pins, 13 Digital Pins].

Can be programmed from Arduino IDE platform

Can deal with communication protocols like I2C, SPI and UART.

Can deal with Arduino Shields.

The board has extra features that is not exist in Arduino Uno board like

1. The board has 16X2 OR 24X2 LCD Connections so the LCD connections will not be

a concern anymore just put the LCD in its place and it will work fine with no need for

extra connections.

2. 5v Buzzer circuit so also you just need to put the buzzer and start working directly.

3. Touch Screen working capability with different working options whether it is 5v or

12v touch screen and the capability to choose whether you would like to work Rx,Tx

or choosing to work with normal pins as a software serial and the option of working

with Max232 or without it according to your touch screen the board will be set, More

details down below.

4. Capability to work with Arduino shields.

5. Different Powering methods.

6. Reverse polarity protection.
